Name: Hand Pipe Bender, 5/8" (16mm)
Brand: Tool
SKU: 376
Availability: InStock

Hand Pipe Bender, 5/8″ (16mm)

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

12 People watching this product now!

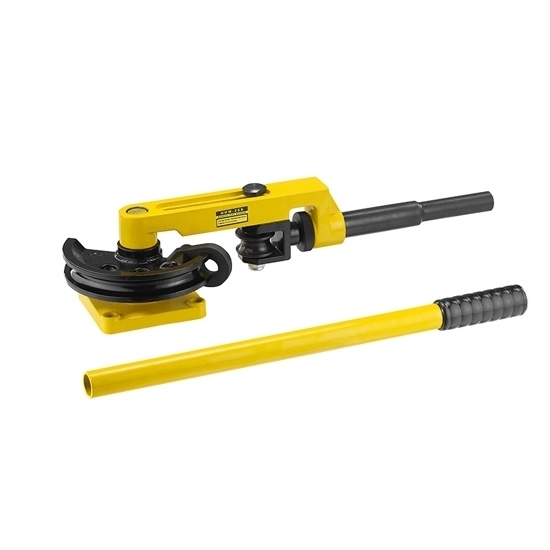

The 5/8″ (16mm) Manual Pipe Bender is a versatile tool designed for bending metal pipes with ease. It features a bending roller and a φ16mm U-bending die, allowing users to create precise bends for various home improvement projects, such as furniture, lamps, railings, and stair handrails. With an adjustable bending angle from 0° to 180°, this compact and portable bender is ideal for both small workshops and on-the-go use, making it perfect for a variety of bending needs in different environments.

Specifications

Model	T-HHW-25S

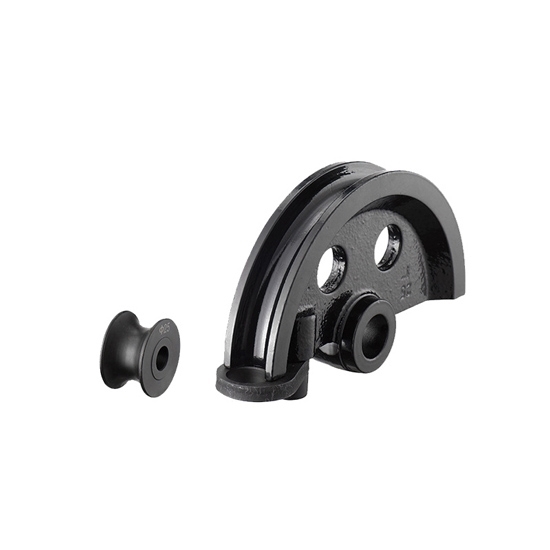

Equipped Mold	Bending Rollers and U-Bending Dies
Mold Size	φ16mm (5/8 inch)
Bending Angle	0~180°
Mold Material	Ductile Iron
Minimum Bend Radius	68.5mm
Pipe Diameter	17mm
Standard Steel Pipe/Stainless Steel Pipe Wall Thickness	1.0mm
Standard Copper Pipe Wall Thickness	1.2mm
Weight	13.6kg
Packaging and Dimensions	Wooden Box Packing (670x215x170mm)
Suitable Pipe Material	Stainless Steel, Copper, etc.

Note

The manual pipe bender is only suitable for round pipes, not for square pipes.
For stainless steel/iron pipes with an outer diameter of 19mm or more, it is recommended to use a tube bender with a wall thickness of 1.2~1.5mm.

Details

Installation Steps

Pipe Bender Applications

Tips: Pros of using a hand pipe bender

Here are some pros of using a hand pipe bender:

Cost-Effective: Hand pipe benders are generally more affordable than powered models, making them a great option for those on a budget or for small-scale projects.
Portability: These benders are compact and lightweight, making them easy to transport and use in different locations without requiring a power source.
Simplicity and Ease of Use: Hand pipe benders are straightforward to operate, even for beginners, and don’t require complex setups or specialized knowledge.
Precise Control: The hand-operated design allows for greater control over the bending process, helping to achieve precise angles and bends.
Space-Saving: Unlike bulky hydraulic or electric machines, hand pipe benders take up very little space, making them ideal for small workshops or home use.
Low Maintenance: With fewer moving parts compared to powered benders, hand pipe benders are easy to maintain and require minimal upkeep.
Durable and Long-Lasting: High-quality hand benders are built to last and can withstand heavy-duty use without wearing out quickly.
No Need for External Power: As hand tools, they don’t rely on electricity or batteries, making them suitable for use in locations without access to a power supply.
Versatility: They can handle a wide range of bending tasks, from simple furniture-making projects to more intricate metalworking tasks like bending railings or stair handrails.
Energy-Efficient: Since no electricity is required, hand pipe benders are environmentally friendly and energy-efficient.
