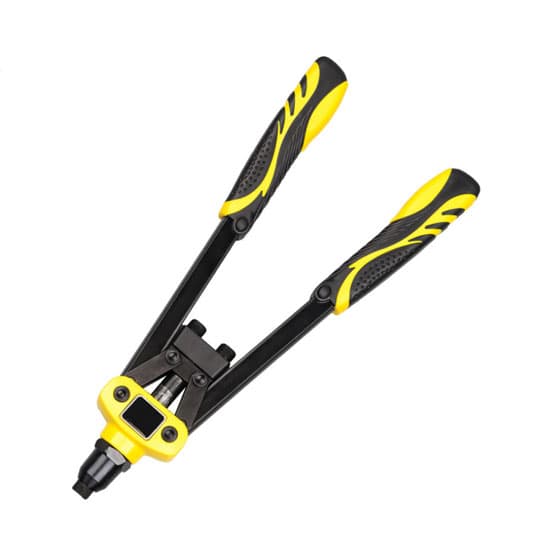

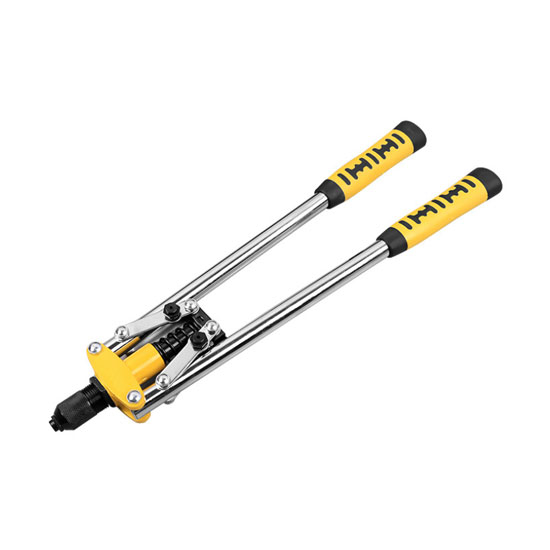

Name: Heavy Duty Rivet Gun, 13 inch/16 inch
Brand: Tool
SKU: 380
Availability: InStock

Heavy Duty Rivet Gun, 13 inch/16 inch

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

30 People watching this product now!

Best low price heavy duty hand rivet gun for sale, you can choose 12 inch or 16 inch. Our industrial hand riveters are suitable for aluminum rivets of which sizes are 3.2mm, 4.0mm and 4.8mm, spiting smooth. Plastic rubber handles that are comfortable to hold and suitable for long time working. A 16 inch rivet gun comes with a compression spring, which is convenient and labor saving.

Specification

Model	T-RG-13	T-RG-16
Size	13 inch	16 inch
Total Length	320mm	410mm
Nozzle Length	35mm	38mm
Nozzle Width	10mm	22mm
Handle Length	135mm	120mm
Handle Width	137mm	120mm
Rivet Size	3.2mm/4.0mm/4.8mm	3.2mm/4.0mm/4.8mm
Rivet Material	Aluminum	Aluminum
Weight	747g	1000g

Note: The sizes are approximate.

Dimensions

Tips: What is a Heavy Duty Rivet Gun?

A heavy duty rivet gun is a fastening tool that applies to fasten various mental sheets, pipe materials and other manufacturing industrial products. It is used in various fields riveting, such as cars, aircrafts, railway, refrigeration, elevators, switches, instruments, furniture, decorations and other mechanical and electrical and light industrial products. The rivet gun appears in order to solve the welding nuts and tapping internal thread of metal sheets and thin pipes fusible. It rivets products effectively, fast and convenient.
There is the method to use a rivet gun. First, you need to confirm whether the rivets are suitable for the rivet gun. Make sure the rivet gun can use normally, and then open the rivet gun totally. Second, insert the rivet rod, close to the rivet cap. Third, insert the rivet body into the rivet hole to make the rivet plate fit tightly. Observe carefully to make sure there is no gap. Forth, pulling on the handle with your hands. Finally, repeat the above actions for many times until the top rod is broken and then finish riveting.
It’s worth paying attention that the nozzle, the rivet and the riveting piece should be tight, the nozzle and the riveting piece should be vertical to reach an ideal riveting effect. There is a suggestion that regularly drops 1-2 drops of oil on the pin shaft to extend the service life of the rivet gun.
