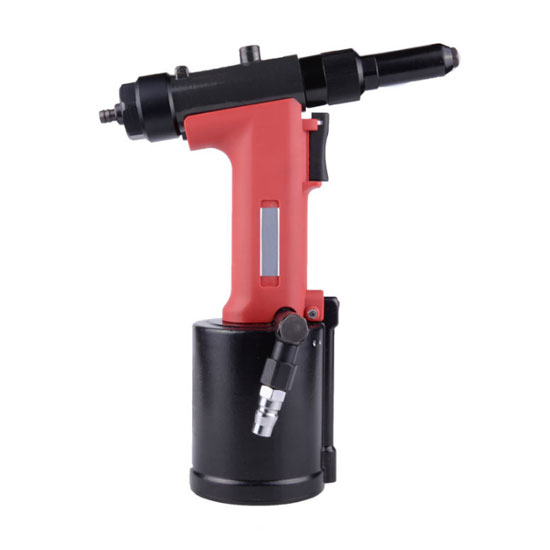

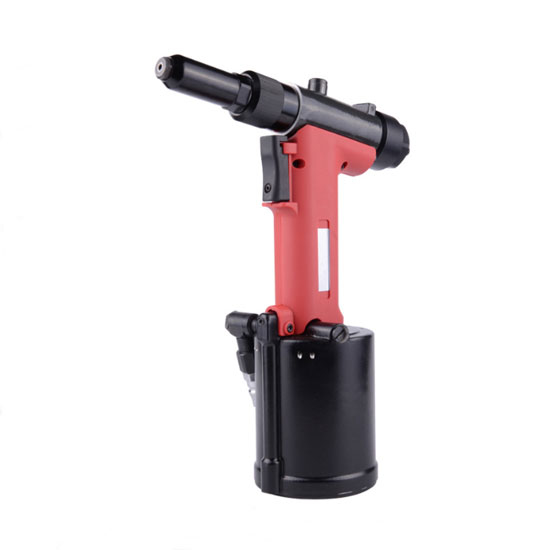

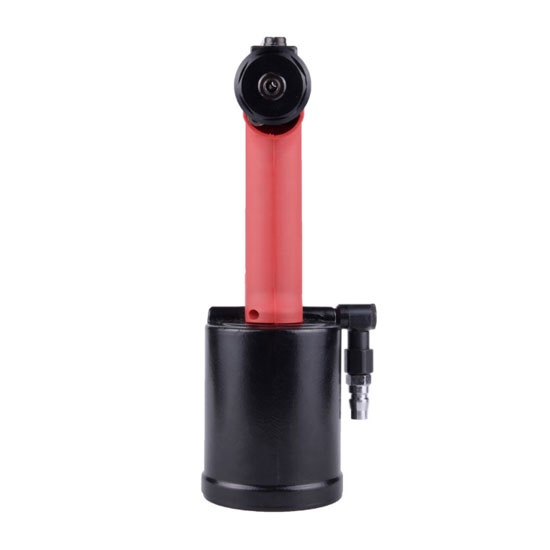

Name: Industrial Pneumatic Rivet Gun, 1/8" - 3/16", 102 PSI
Brand: Tool
SKU: 1182
Availability: InStock

Industrial Pneumatic Rivet Gun, 1/8″ – 3/16″, 102 PSI

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

30 People watching this product now!

Industrial pneumatic pop rivet gun fits for diameter 1/8″, 5/32″, 3/16″ aluminum blind rivets and stainless rivets. Air hydraulic riveter has a universal joint that can be rotated 360°according to what you need. It is the best fastening tool used for various chassis shells, equipment cabinets, aluminum alloy doors, windows and so on. It is as well as applied to rivet container, carriage, auto, airplane and vessel.

Specification

Model	T-IPRG-316
Rivet Capacity	Aluminum Rivet: 1/8″, 5/32″, 3/16″ (3.2mm, 4.0mm, 4.8mm)
Rivet Capacity	Steel Rivet: 1/8″, 5/32″ (3.2mm, 4.0mm)
Power Source	Air Powered
Working Pressure	72 – 102 PSI (0.5-0.7 MPa)
Air Inlet Size	1/4 inch (6.35mm)
Air Consumption	2.45 CFM (70L/Min)
Pulling Power	9400N
Maximum Stroke	18mm
Body Dimension	220mm * 270mm
Weight	1.28kg

Dimension

Details

Nozzle
Oil Filling Port
Rivet End Export
Starting Switch
Ergonomic Handle
Air Cylinder
Hanging Ring
Extra Nozzles (1/8″, 5/32″)

Jaw Locker
Spring Locker
Jaw Puller
Nozzle Shell
Jaw Shell
Top Tube Spring
Top Tube
3 Pieces Extra Jaws

Tip: Industrial pneumatic rivet gun troubleshooting

The rivets can’t insert the nozzle.
Reasons:
1. The distance of the nozzle is not adjusted and the jaws are not open.
2. The nozzle doesn’t match with the rivets.
3. A broken rivet tip is still in the air rivet gun.
4. There are burrs at the outlet of the nozzle and the rivet tip.
Solutions:
1. Adjust the distance according to regulations.
2. Change the right nozzle match with rivets.
3. Replace the head of air riveter.

The tips of blind rivets can’t be pull down.
Reasons:
1. The jaws wear and tear.
2. Oil loss in the hydraulic cylinder.
3. The air source pressure is below the rated value.
Solutions:
1. Replace the jaws.
2. Refuel in the hydraulic cylinder after check.
3. Don’t use the air riveter until the air source pressure achieves the rated value.

The air riveter can’t grasp rivets.
Reasons:
1. The jaws wear and tear.
2. The spring wear and tear.
3. There are impurities among the jaws.
Solutions:
1. Replace the jaws.
2. Change the spring.
3. Clean impurities.

The gas and oil mist spray out from air outlet.
Reason:
Water is mixed in the compressed air.
Solution:
Clean the water in the air separator and air compression pump.
