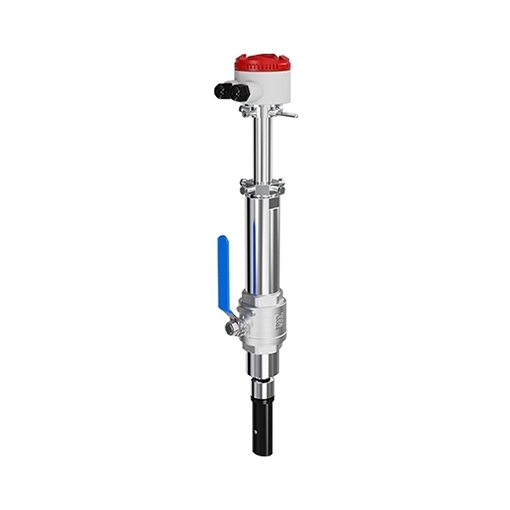

Insertion Electromagnetic Flow Meter for Water, DN100-DN3000
Price range: $225.99 through $384.75
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
Insertion magnetic flow meter for sale is designed for efficient measurement of water flow, with plug-in structure, easy to install. The low-frequency square-wave excitation technology allows for more accurate flow measurement, and the output signal has a stable and reliable linear relationship with the flow rate. Pipe sizes ranging from DN100 to DN3000 are optional to meet demanding measurement tasks.
Specification
| Model | T-LDGC-SUP-L |
| Port Size | DN100-3000 mm (port size more than DN1000 please contact us) |
| Working Pressure | 1.6 Mpa |
| Working Temperature | ≤70℃ |
| Upper Limit Range | 1-10 m/s |
| Accuracy of Measurement | ±2.5% |
| Conductivity | ≥50% |
| Medium | water |
| Electrode Material | 304, 304L, 316, 316L, Hastelloy alloy, titanium |
| Converter Output | 4-20 mA output |
| Frequency Output | pluse output |
| Communication Output | RS485 |
| Power Supply | 24V DC, 220V AC |
| Maximum Distance | ≤50m |
| Cable | RVVP double core shielded cable or STT3200 four core three shield cable |
| Compact Type | IP65 / IP68 |
| Buried Depth | Not deeper than 5 meters |
| Repetitiveness | 0.0016 |
| Maxium Measurement Error | ±0.1 ℃ |
Insertion Electromagnetic Flow Meter Structure
Insertion Electromagnetic Flow Meter for Water Dimension: (Unit: mm)
| DN | a | bf | D | Do | n*A | Pressure Resistance |
| 100 | 250 | 410 | 215 | 180 | 8*18 | 1.6 MPa |
| 125 | 250 | 440 | 245 | 210 | 8*18 | |
| 150 | 300 | 469 | 280 | 240 | 8*23 | |
| 200 | 350 | 522 | 335 | 295 | 12*23 | |
| 250 | 450 | 824 | 405 | 355 | 12*25 | |
| 300 | 500 | 624 | 440 | 400 | 12*23 | 1 MPa |
| 350 | 550 | 1029 | 500 | 460 | 16*23 | |
| 400 | 600 | 737 | 565 | 515 | 16*25 | |
| 450 | 600 | 786 | 615 | 565 | 20*25 | |
| 500 | 600 | 839 | 670 | 620 | 20*25 | |
| 600 | 600 | 944 | 780 | 725 | 20*30 | |
| 700 | 700 | 1052 | 895 | 840 | 24*30 | |
| 800 | 800 | 1164 | 1015 | 950 | 24*33 | |
| 900 | 900 | 1264 | 1115 | 1050 | 28*33 | |
| 1000 | 1000 | 1374 | 1230 | 1160 | 28*36 | |
| 1200 | 1200 | 1589 | 1405 | 1340 | 32*33 | 0.6 MPa |
Insertion Electromagnetic Flow Meter Oil Features
- Insertion type electromagnetic flow meter allows easy installation and removal under low or high pressure conditions without stopping the water.
- Low-frequency square wave excitation technology is used to provide excellent zero stability and strong anti-interference capability.
- Wide range of flow measurement for flow rates from 1 m/s to 10 m/s.
- Linear output signal for precise monitoring and control of water flow, ensuring accurate measurement results.
Insertion Magnetic Flow Meter Applications
Tips: How to install insertion type electromagnetic flow meter?
To install an insertion type magnetic flowmeter, you need to drill holes in the pipe and install the adapter. First, make sure the fluid in the pipe is in a stationary state, and then insert the flowmeter probe into the pipe and fix it. When installing, you need to ensure that the centerline of the probe is consistent with the axis of the pipe to ensure measurement accuracy. After completing the installation, follow the manufacturer’s instructions for calibration and commissioning to ensure accurate flow readings.
