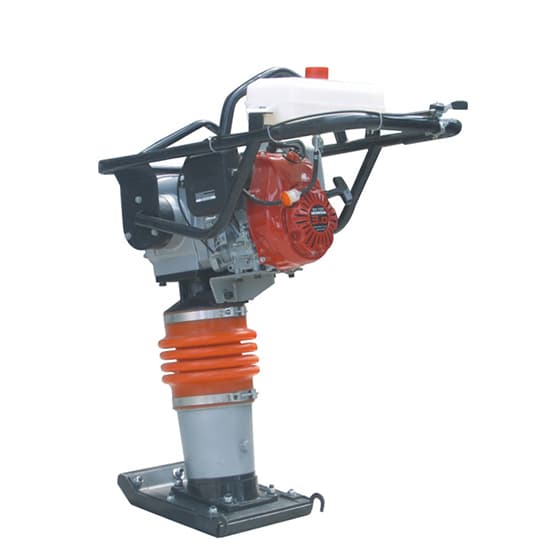

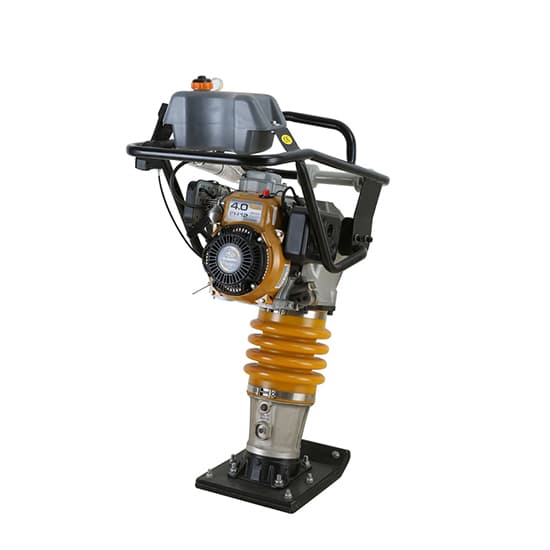

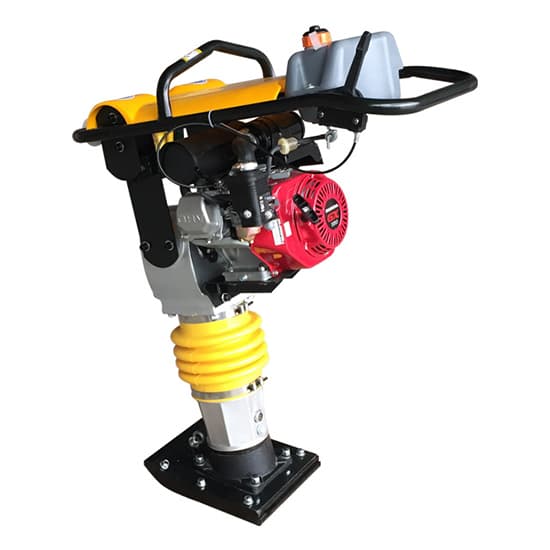

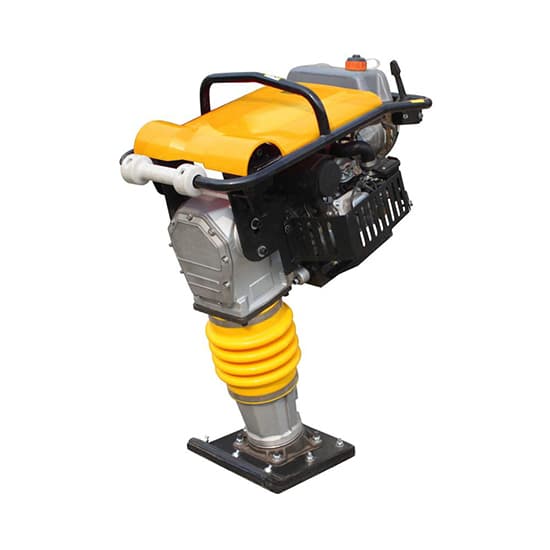

12kN impact force jumping jack tamper construction tool for sale, 5.5 HP Honda GX160, 5 HP Robin EH20 and 6.5 HP Chinese petrol engine designed for tamping rammer with 4-stroke single sylinder, heavy duty throttle control provides more reliable and longer service.

Description

Model	T-HCR90K
Engine Type	Single sylinder, 4-stroke, air cooled
Engine Brand	Honda GX160	Robin EH20	Chinese Petrol Engine
Power of Engine	5.5 HP	5 HP	6.5 HP
Impact Force	12 kN (2698 lbf)
Jumping Stroke	40-65 mm
Travel Speed	10m/min
Impact Number	450-650 times/min
Plate Size	330 x 300 mm (13″ x 12″)
Working Method	Vibration
Certification	CE, ISO
Warranty	1 Year
After-sales Service	Video technical support, Online support, Free spare parts
Net Weight	78 kg

Features

Tamping rammer with 4-stroke gasoline engine which is not needed to mix gasoline and oil while different brands of engine can be used such as Honda, Robin, Chinese engines.
Easy starting, low noise, convenient maintenance and less fuelconsumption comparing to 2-stroke engine.
The handle can effectively avoid impact damage to the machine.
Aluminum alloy for lighter weight and better thermal diffusivity.
330 x 300 mm thickness plate and heavy shock mount system can reduce the handrail vibration and improve operating comfortableness.
Precision casting body and polyurethane bellows, strong and duable.

Tips: Transportation of jumping jack tamper

Shutdown the jumping jack engine for transportation.
For transportation, tighten fuel tank cap securely and close fuel cock to prevent fuel from spilling.
Drain fuel for transportation over long distance or bad road.
Secure machine firmly to prevent it from moving or tipping.
Tamping rammer should be transported in such position as it is placed on level ground. In case of it must be laid down for transportation, drain fuel tank as well as carburetor and make sure that oil plug is tightened securely.
Direction to lay down the rammer, must be such that air cleaner comes to top. After laying it make sure that there is no leak of oil or residual fuel.
