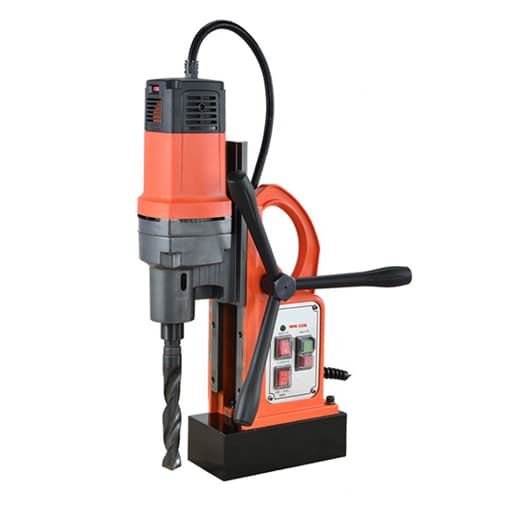

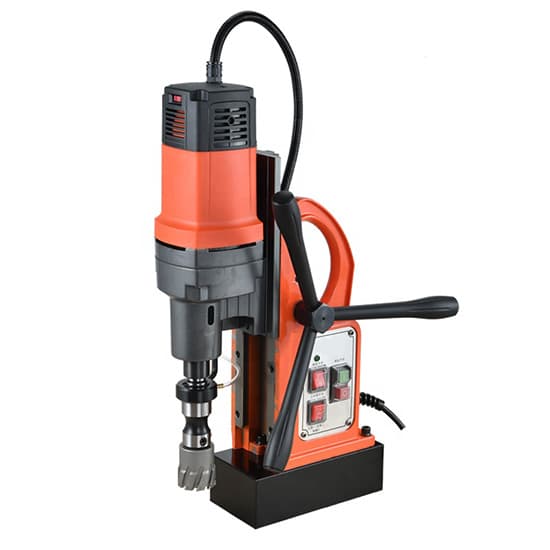

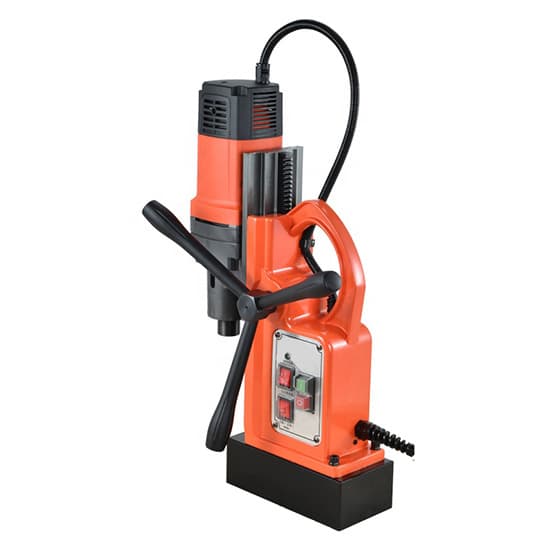

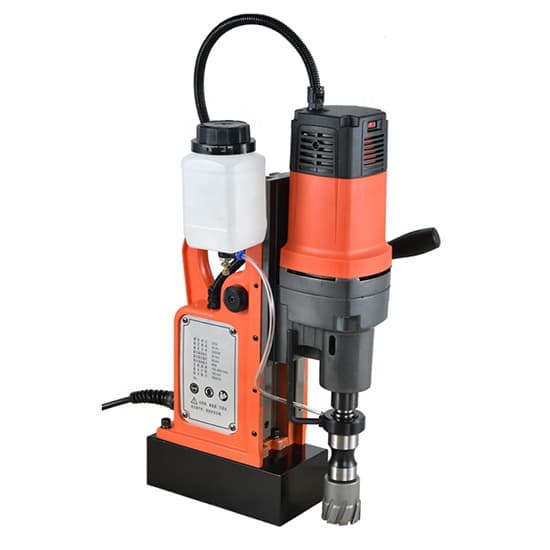

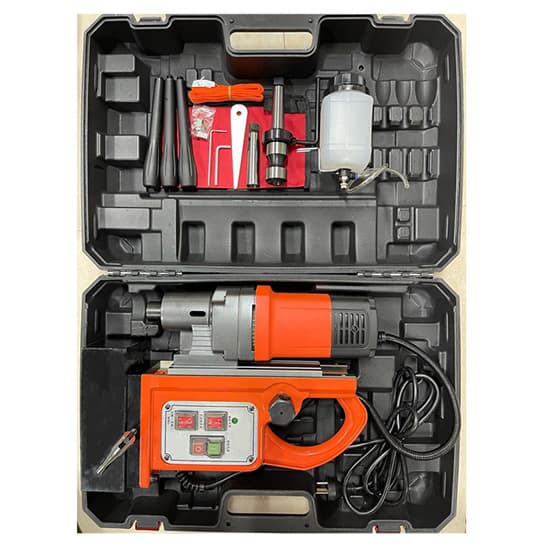

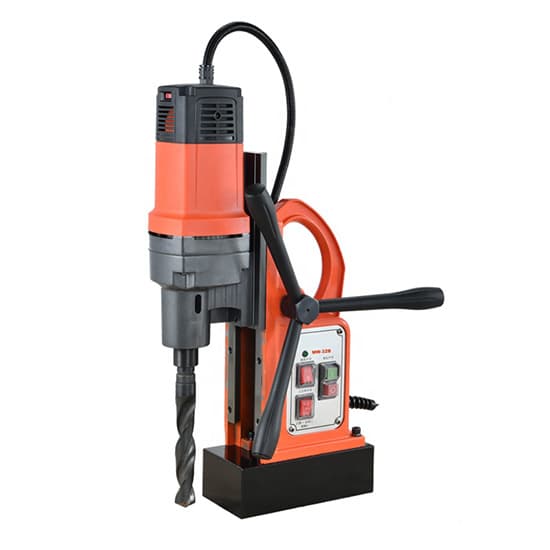

Magnetic Drill Press, 35mm Annular Cutter, 1500W, 10000N
Original price was: $535.26.$53.99Current price is: $53.99.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
Low price magnetic drill press construction tool for sale, with 35mm diameter annular cutter, strong magnetic adhesion 10000N, 1500 watt power available in 50Hz/ 60Hz 110V, 220V, 240V system. Portable magnetic drill is designed to produce superior holes quickly and efficiently. The overload protection electronics which prevent motor damage and excess accessory wear designed for long life.
Specification
| Model | T-MW35T |
| Drill Type | Magnetic drill |
| Max. Twist Bit | 16mm |
| Max. Annular Cutter | 35mm |
| Rated Voltage | 110V / 220V / 240V AC |
| Rated Frequency | 50Hz / 60Hz |
| Magnetic Adhesion | 10000N |
| Rated Input Power | 1500W |
| No-load Speed | 0-900 r/min |
| Stroke | 180mm |
| Weldon Shank | MT2 |
| Certificate | CE |
| Net Weight / Gross Weight | 12 kg / 15 kg |
| Package | Plastic box inside + Carton box outside (wooden package) |
| Packing Size | 590 x 410 x 180mm |
Features
- Strong Power: 1500W motor power in 50Hz/ 60Hz 110V, 220V, 240V magnetic drilling system
- Electromagnet Base: Strong electromagnet base for side suction and back suction. Stable at work, to ensure both your efficiency and safety.
- Double Dovetail Guide Rail: Double devotail design for smoother working, double coil super strong adsorption force.
- Comfortable Grip: Ergonomic auxiliary handle for easy handling and easy carrying.
- Overload Protection: Prevents electronics from motor damage and excess accessory wear.
- Wide Application: Suitable for steel structure, shipbuilding, bridge engineering, wind power generation, drilling rig, electric power construction, railway manufacturing and other field.
Tips: Magnetic drill system applicatons
In various complex environments of steel structure drilling operation, magnetic drill system is especially used in shipbuilding, paper industry, bridge, mechanical equipment installation and steel structure engineering.
Magnetic drill construction tool can drill from different angles by using the adsorption force of magnetic base. Due to its small size, high power and accurate location, the operation efficiency is extremely high. Magnetic drill is a good solution to the problem of pipeline slag removal. It can also achieve satisfactory results for overlapping drilling of steel plate, especially for stainless steel pipe and stainless steel with certain thickness. Therefore, magnetic drill system is widely used in some large-scale subway construction, large-scale equipment maintenance, power plant maintenance and all pipeline engineering. If used with coring bit, the effect of magnetic drill will be more obvious.
