Name: Magnetic Drill Press, 50mm Annular Cutter, 1500W, 13500N
Brand: Tool
SKU: 733
Availability: InStock

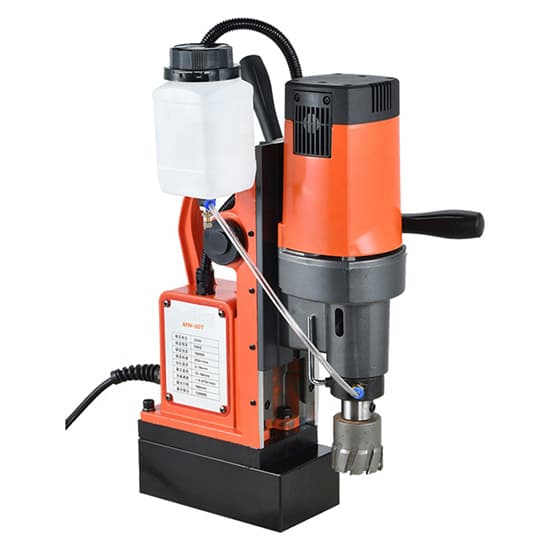

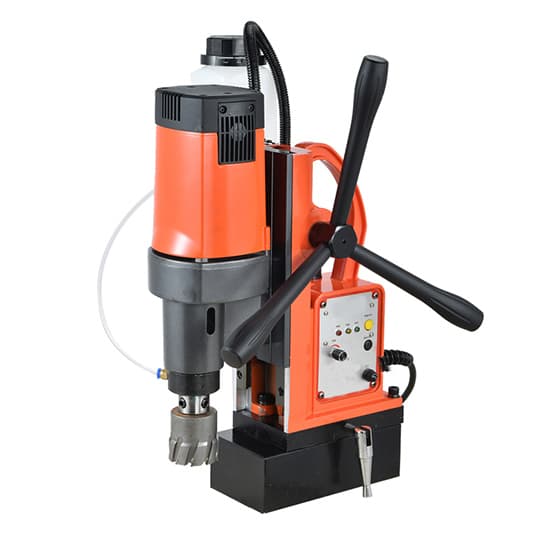

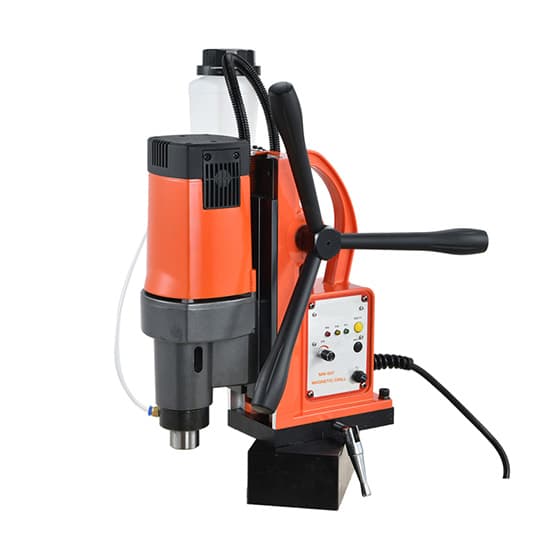

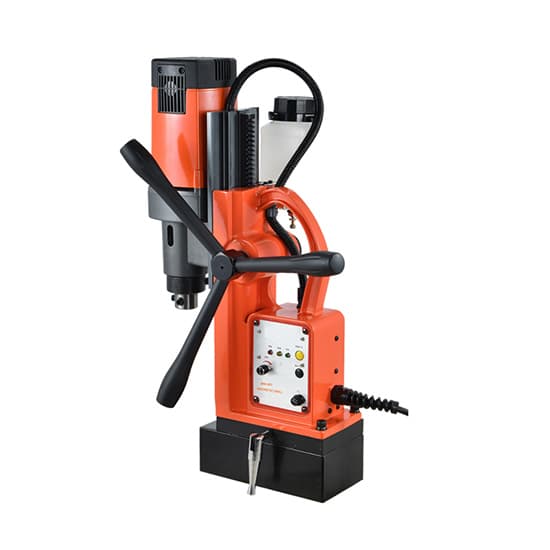

Magnetic Drill Press, 50mm Annular Cutter, 1500W, 13500N

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

74 People watching this product now!

Factory price magnetic drill press driiling tool offers dependability, safety and versatility. Features with great 1500 watt great power, Ø50mm max annular cutter, strong electro-magnetic adhesion at 13500N, easy to operate the control panel, compact dimensions, for fabricating in confined spaces.

Specification

Model	T-MW50T
Drill Type	Magnetic drill
Max. Annular Cutter	Ø50mm
Rated Voltage	110V / 220V / 240V AC
Rated Frequency	50Hz / 60Hz
Magnetic Adhesion	13500N
Rated Input Power	1500W
No-load Speed	650 r/min
Stroke	180mm
Weldon Shank	MT2
Certificate	CE
Net Weight / Gross Weight	20 kg / 25 kg
Package	Plastic box inside + Carton box outside (wooden package)
Packing Size	590 x 410 x 180mm

Features

Strong Power: 1500W motor power in 50Hz/ 60Hz 110V, 220V, 240V magnetic drilling system
Electromagnet Base: Strong electromagnet base for side suction and back suction. Stable at work, to ensure both your efficiency and safety.
Double Dovetail Guide Rail: Double devotail design for smoother working, double coil super strong adsorption force.
Comfortable Grip: Ergonomic auxiliary handle for easy handling and easy carrying.
Overload Protection: Prevents electronics from motor damage and excess accessory wear.
Wide Application: Suitable for steel structure, shipbuilding, bridge engineering, wind power generation, drilling rig, electric power construction, railway manufacturing and other field.

Tips: How to install the magnetic drill press?

Put the core bit into the magnetic base drill correctly and fix it.
Add cutting fluid to the hole at the tool holder.
Check whether the power supply and voltage are stable.
Confirm the speed gear I or II, and it is not allowed to shift when the motor is rotating.
When the suction surface is not operated on the level, the safety chain of the magnetic drill must be used.
The magnetic drill must absorb a smooth and clean iron surface to operate, and the thickness of the steel plate must be greater than 6mm.
Before starting the motor, you must first check the drilling position, then press the magnetic base switch to start the magnetic base, and then press the start button to start the motor.
When using core drills or twist drills, do not apply too much pressure to speed up the drilling speed, which will shorten the life of the drill.
