Name: Manual Grease Gun 100CC
Brand: Tool
SKU: 944
Availability: InStock

Manual Grease Gun 100CC

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

69 People watching this product now!

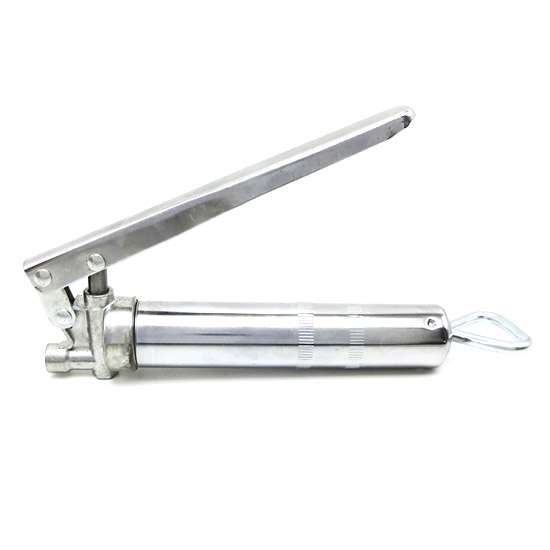

Manual grease gun 100cc with 235mm length, 32mm diameter.

Specification:

Model	T-MGG-100CC
Shipping weight	1kg
Capacity	100cc
Material of gun body	Steel pipe
Gun body diameter	32mm
Grease gun length	235mm
Rubber tube length	270mm
Metal tube length	110mm

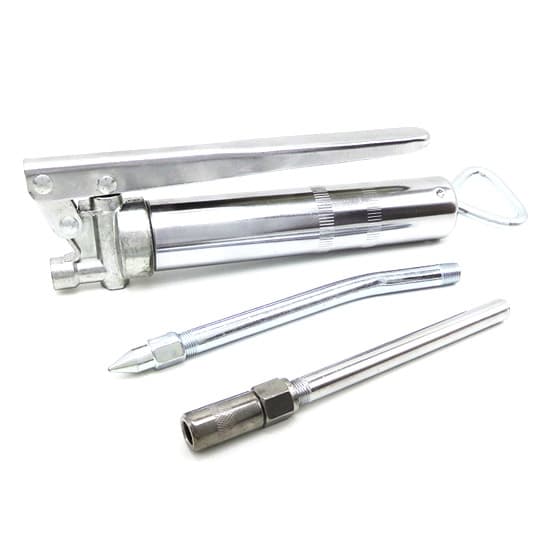

Packing included	1 * grease gun 1 * rubber tube 1 * metal tube 1 * flat nozzle 1 * sharp nozzle

Tips: How to use a manual grease gun?

Pull out the tie rod so that the piston in the cylinder is close to the rear cover, and then lock the tie rod.
Fill the cylinder with lubricating grease. When using a grease injector, thread the top of the grease reservoir into the fine screw of the grease injector, and use the grease injector to fill the lubricating grease into the grease reservoir. If you directly put grease into the cylinder by hand, first unscrew the front cover and directly put the clean grease into the grease reservoir by hand until the entire reservoir is filled, then screw on the front cover to unlock the rod, And wipe the grease gun with cotton yarn.
Hold the greases gun body with one hand and the hand lever with the other hand, press the hand lever reciprocally to discharge the air in the tube, and stop pressing the hand lever when there is grease in the grease nozzle.
Align and press the grease nipple at the front end of the grease gun on the grease nipple of the grease injection part to be lubricated, press the hand lever close to the grease reservoir until it can’t be pressed down, and then raise the hand lever to the original position. Then press down and lift up, reciprocating press the hand lever to slowly press the lubricating grease on the parts that need to be lubricated. After filling the lubricating grease, pull out the grease gun.
If the front end of the grease gun is inconvenient to approach the greasing nozzle that needs to be lubricated, a rubber tube should be connected on the grease gun, and the sleeve should be fastened firmly to prevent the lubricating grease from leaking from the sleeve mouth when filling. Install a nozzle that match the thread of the grease nipple at the other end of the hose. Extend the nozzle into the grease nipple at the grease injection part, and add grease to the grease injection part according to the above method.
