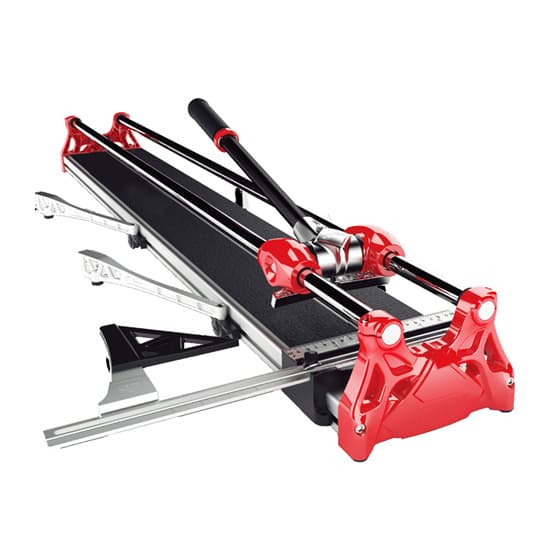

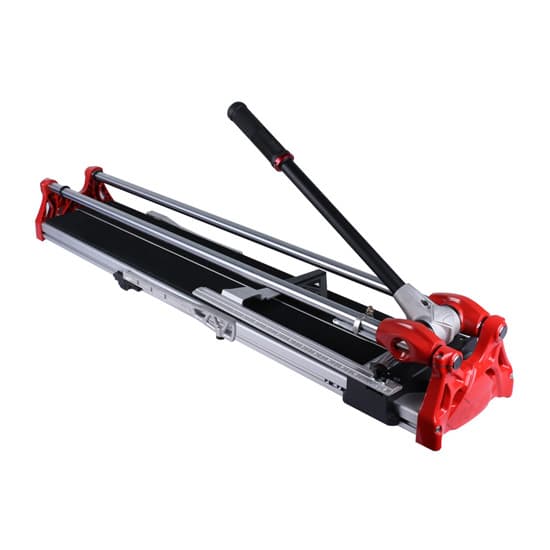

Manual Tile Cutter, 48 Inch

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

37 People watching this product now!

The hot sale tile cutting machine for sale offers cheap price, free shipping and is ergonomically designed. The non-slip handle design makes it easier to press the tile and increases the comfort of the cutting process, two solid steel shafts are strong and not easy to bend, making cutting work more accurate and suitable for long-term use.

Specification

Model	T-T1200P
Max. Cutting Length	1200mm
Cuttable Thickness Range	3-15mm
Cuttable Width Range	850-1200mm
Max. Supporting Weight	800kg
Diagonal Cutting	850 x 850mm
Item Weight	15kg
Item Size	1075 x 207 x 140mm
Application	Wall tiles, polished tiles, glazed tiles

Details

Features

1. Double solid steel shafts. 20mm diameter. High frequency quenching process. Strong resistence to deformation. Corrosion resistence of chromium plating. Good visibility of making.
2. Double aluminum alloy enclosed chassis. Integrated molding. Ensure stability ＆ smothness of the fuselage. The cutting operation does not wobble.
3. Magnet adsorption. Breaker has magnet absorption. Absorbale cutting head does not affect marking.
4. 800kg max. supporting weight. Easier and less labor-saving to cut the tiles.
5. Double-track taxiing. Taxiing cutting is smoother. Good visual cutting effect. No need to refuel.
6. Tungsten carbide alloy cutter wheel. High hardness and more surable.
7. Extended side rulers. They can be connected externally for wide size ceranic tile and can be moved up and down. The length of the side ruler is 750mm.
8. Supporting flanks. There is two flanks on left and right each side. Its length is up to 300mm, used to suppor large size ceramic tile cutting.

Tips for using manual tile cutter
1. Read the instructions carefully before using.
2. Check the flatness of the operating surface before cutting. The uneven operating surface can not be used for cutting, which will damage the cutter head and cutting accuracy.
3. Do not apply much pressure to break the tile, enough pressure is needed gently to push the lever until it reaches the end stop.
4. Do not use the cutter wheel to cut repeatedly, otherwise, it will affect the cutting accuracy and the service life of the tile.
5. Blade rails avoid to attatch water and sand and clean them in time.
6. Do not move the tile after positioning the tile in the cutter and your measurement mark is arranged.
7. Do not put fingers beneath the blade rails when the cutter wheel slices through the tile.
8. Be careful during working and take the protective measures, such as putting on glasses, mask, gloves and helmet.
