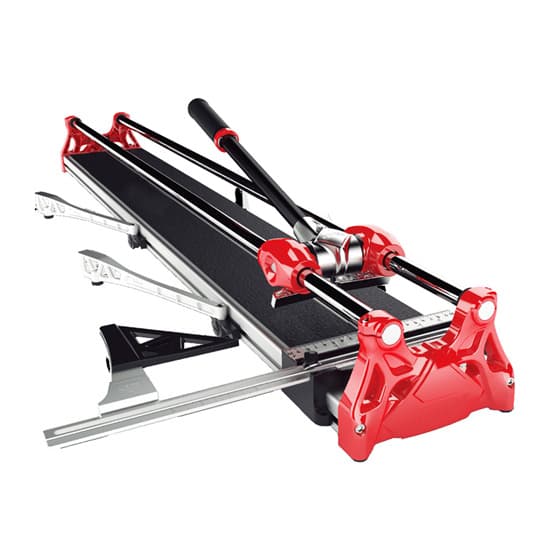

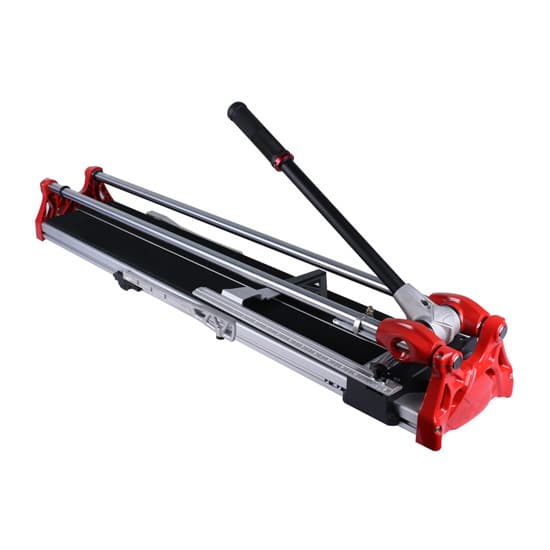

Name: Manual Tile Cutter, 85cm (30 Inch)
Brand: Tool
SKU: 782
Availability: InStock

Manual Tile Cutter, 85cm (30 Inch)

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

79 People watching this product now!

Wholesale tile cutting machine provides cheap price and handle ergonomic design for comfortable use. The cutting head is equipped with a linear bearing to ensure the cutting accuracy and adjustable side ruler which is also suitable for 45 angle cutting.

Specification

Model	T-T185
Max. Cutting Length	850mm
Cuttable Thickness Range	3-15mm
Cuttable Width Range	850-1200mm
Max. Supporting Weight	800kg
Diagonal Cutting	600 x 600mm
Item Weight	10.5kg
Item Size	1075 x 207 x 140mm
Application	Wall tiles, polished tiles, glazed tiles

Features:
1. Double solid steel shafts. 20mm diameter. High frequency quenching process. Strong resistence to deformation. Corrosion resistence of chromium plating. Good visibility of making.
2. Double aluminum alloy enclosed chassis. Integrated molding. Ensure stability ＆ smothness of the fuselage. The cutting operation does not wobble.
3. Magnet adsorption. Breaker has magnet absorption. Absorbale cutting head does not affect marking.
4. 800kg max. supporting weight. Easier and less labor-saving to cut the tiles.
5. Double-track taxiing. Taxiing cutting is smoother. Good visual cutting effect. No need to refuel.
6. Tungsten carbide alloy cutter wheel. High hardness and more surable.
7. Extended side rulers. They can be connected externally for wide size ceranic tile and can be moved up and down. The length of the side ruler is 750mm.
8. Supporting flanks. There is one flank on left and right each side. Its length is up to 300mm, used to suppor large size ceramic tile cutting.

Details

Tips: How to cut tiles manually?
1. Measure the space where you want to fill with tiles with measuring tool.
2. Use a grease pencil or other marker pens to draw a cutting line on the tile.
3. If you are going to use electric tile cutter, go ahead to step 5. If you want to use a manual cutter, put it on a flat and steady surface.
4. Slide the blade along with the line you mark and press the tile with the tool’s handle to break the tile.
5. If you use electric tool, you need to give steady and constant pressure along the lines you draw to cut.
