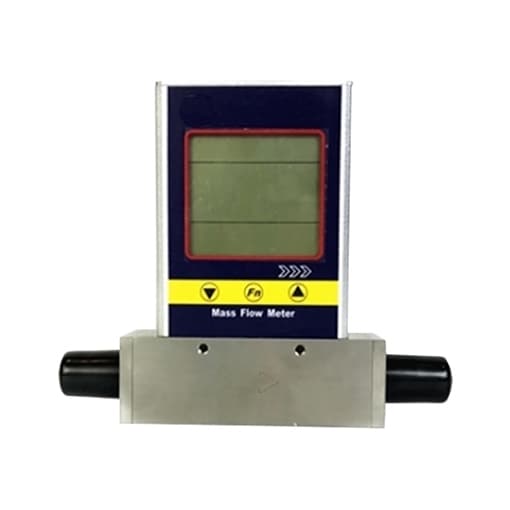

Mass Flow Meter for Gas, Air/H2/O2, 0~15/50/120/300/800L/min
Price range: $204.99 through $234.76
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
Recommended by quality suppliers, this gas mass flow meter has a compact and portable design, which easily meets the needs of multi-scenario applications. It can detect air, hydrogen, oxygen, methane, argon, nitrogen and other gases, and the flow rate range is up to five choices (0~15/50/120/300/800L/min), which is suitable for different use scenarios. Digital display interface makes the flow rate clear at a glance, and the output supports 4-20mA, RS485, pulse 0~5VDC signals for stable data transmission. High quality assurance, simple operation, easy installation and maintenance.
Specification
| Model | T-MF5000 |
| Flow Range (optional) | 0~15 L/min |
| 0~50 L/min | |
| 0~120 L/min | |
| 0~300 L/min | |
| 0~800 L/min | |
| Applicable Gas (optional) | Air |
| Nitrogen (N2) | |
| Oxygen (O2) | |
| Argon (Ar) | |
| Carbon Dioxide (CO2) | |
| Methane (CH4) | |
| Accuracy | ± (1.5 + 0.5 F.S.)% |
| Repeatability | 0.5% |
| Power Supply | DC 8~24V (50mA) |
| Output Signal (optional) | 4-20mA, RS485, pulse 0~5VDC |
| Pressure Rating | 1.5 MPa |
| Working Temperature | -20~60℃ |
| Humidity | <95% RH (no condensation) |
| Pin-out | DB9 |
| Calibration | Air @ 2℃, 101.325 kPa |
| Hazardous Rating | ExiaIICT4 |
Mass Flow Meter for Gas Document
- Mass Flow Meter for Gas User Manual.pdf
Mass Flow Meter for Gas Dimension: (Unit: mm)
| Flow Range | DN | D | L | H | H1 | W | d | C |
| 0~15 L/min | 3.0 | 1/8 inch | 118 | 144 | 28 | 38 | Ф 3 | 36 |
| 0~50 L/min | 6.0 | 1/4 inch | 124 | 144 | 28 | 38 | Ф 6 | 36 |
| 0~120 L/min | 8.0 | 3/8 inch | 124 | 151 | 35 | 38 | Ф 8 | 50 |
| 0~300 L/min | 12.0 | 1/2 inch | 150 | 156 | 40 | 40 | Ф 12 | 50 |
| 0~800 L/min | 19.0 | 3/4 inch | 182 | 156 | 40 | 40 | Ф 19 | 70 |
Gas Mass Flow Meter Applications
Tips: How does a mass flow meter measure the flow rate of a gas?
A mass flow meter determines the flow rate by measuring the mass flow of a gas, rather than the traditional volumetric flow rate. It uses the principle of thermal dispersion or the Coriolis effect to accurately measure the actual mass flow of a gas through a pipe. Regardless of changes in the temperature, pressure or density of the gas, the gas mass flow meter provides a stable, accurate reading, ensuring measurement accuracy in a wide range of conditions.
