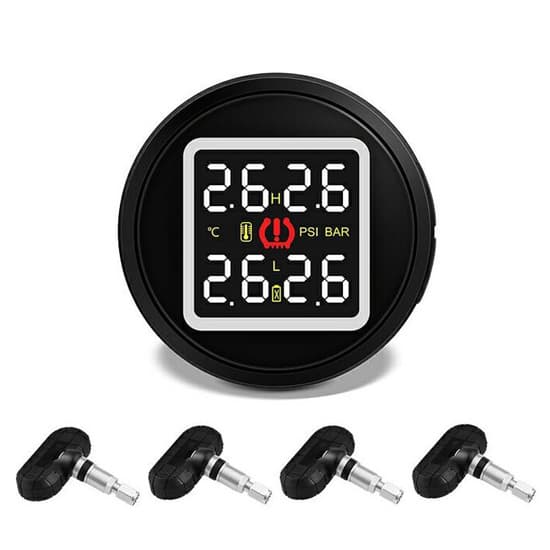

Mini TPMS equips a round LED display and 4 tire sensors to realize every tire pressure & temperature monitoring in real-time.

Features:

TPMS can real-time monitor the tire pressure and temperature of your car and automatically update the data on the display at the same time. Once there are something abnormal, the TPMS will warn you immediately.
Mini TPMS provides five types of alarms, including high pressure alarm, low pressure alarm, high temperature alarm, fast air leak alarm and sensor low battery alarm. The user can also set the pressure and temperature alarm value in the setting range.
Adopting advanced chip, TPMS features high sensing accuracy, fast feedback speed, stable signal, long-distance transmission, low consumption and anti-interference, and the sensors adapt to all weather, anti-dust, waterproof, snow and high temperature protection, anti-drop off and anti-theft.

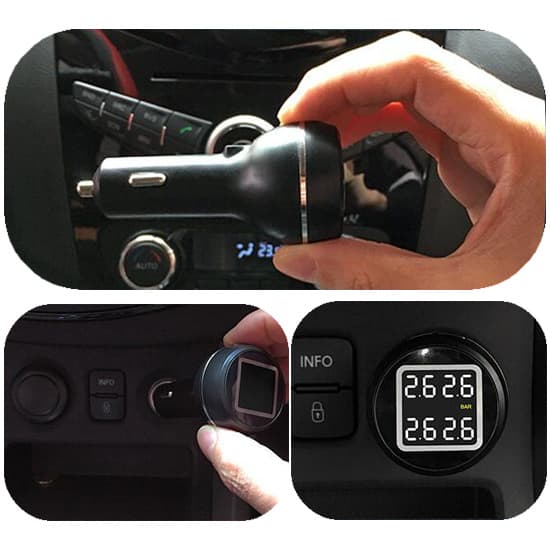

Cigarette lighter design TPMS has a plug-and-play LED display, small size, convenient installation and easy to setup with one key operation. Once the car starts, the TPMS monitor can automatically start the sensors and transmit the data to the display.
With USB port, the TPMS can be used to charge the cellphone, tablets and other electronics via USB cable.

Specification:

Basic	Model	T-D580-WF1	T-D580-WI1	T-D580-WF2	T-D580-WI2	T-D580-TL	T-D580-NF+	T-D580-TJ	T-D580-TK
	Weight	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg
	Pressure range	0-8 bar	0-8 bar	0-8 bar	0-8 bar	0-8 bar	0-8 bar	0-8 bar	0-8 bar
	Accuracy	<0.01 bar	<0.01 bar	<0.01 bar	<0.01 bar	<0.01 bar	<0.01 bar	<0.01 bar	<0.01 bar
	Packing included	1 * LED display; 4 * silver tire sensors; 4 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor	1 * LED display; 4 * silver tire sensors; 4 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor	1 * LED display ; 4 * black tire sensors; 4 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor	1 * LED display; 4 * black tire sensors; 4 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor	1 * LED display; 4 * black tire sensors; 4 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor	1 * LED display; 4 * black tire sensors; 4 * air taps; 1 * hex wrench; 1 * installation note; 4 * paster	1 * LED display; 4 * black tire sensors; 4 * air taps; 1 * hex key; 1 * installation note; 4 * paster	1 * LED display; 4 * black tire sensors; 4 * air taps; 1 * hex key; 1 * installation note; 4 * paster
	Function	Wireless remote sensing technology, predict air leakage, prevent tire burst, detect swelling, reduce wear, prevent running deviation
LED display	Size	Diameter: 41.4mm, Length: 85.3mm
	Data update frequency	1 time/3 second
	Power supply	Cigarette lighter
	Working temperature	0-80℃ >70℃, LED display will stop charging >80℃, LED display will stop working When LED display gets back to normal temperature, it will restore real-time monitoring status
	Function	High-pressure alarm (3 bar), low-pressure alarm (2 bar), high-temperature alarm (65℃), air leakage alarm, tire sensor low-battery alarm, battery charging protection
Tire sensor	Installation mode	External	External	External	External	External	Built-in	Built-in	Built-in
	Size	Diameter: 23mm, Height: 15mm	Diameter: 18mm, Height: 13mm	Diameter: 23mm, Height: 15mm	Diameter: 18mm, Height: 13mm	Diameter: 23mm, Height: 15mm	LWH: 693215mm	LWH: 603015mm	LWH: 693215mm
	Dynamic balance detection	No need	No need	No need	No need	No need	Need	Need	Need
	Battery warranty	2-3 years	1-2 years	2-3 years	1-2 years	2-3 years	5-6 years	2-3 years	5-6 years
	Battery replacement	By user	By user	By user	By user	By user	By user	By manufacture	By user

TPMS Display:

TPMS Sensors:

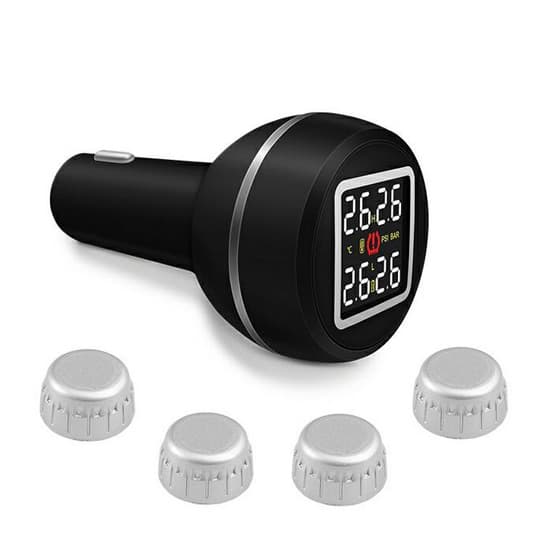

Mini External Sensor (WI Version) | Standard External Sensor (WF Version)

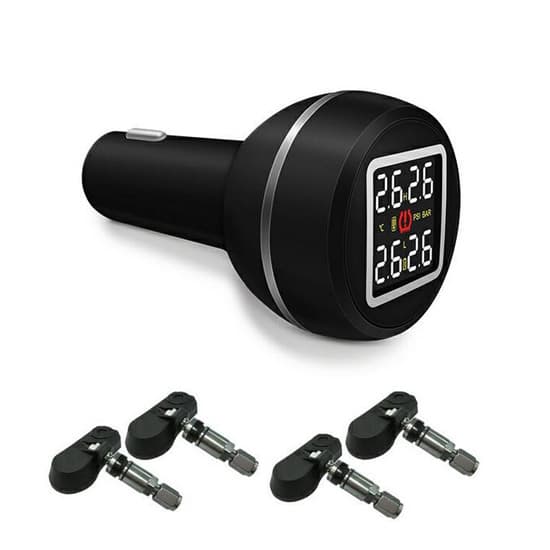

Standard Internal Sensor (TJ Version) | Upgraded Internal Sensor (NF+ Version)

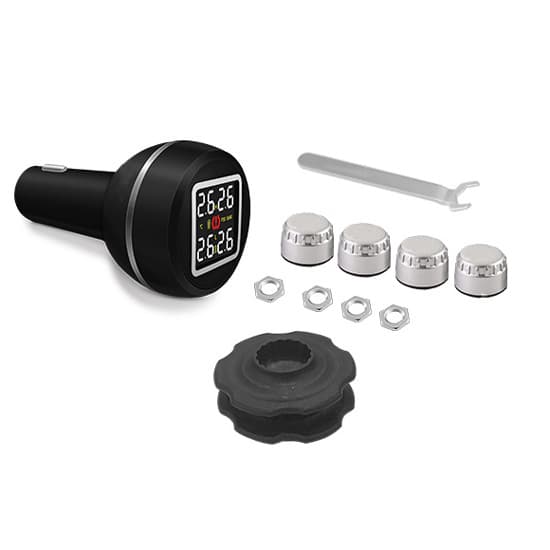

Package Included:

T-D580-WF1	T-D580-WI1

T-D580-WF2	T-D580-WI2

T-D580-TL	T-D580-NF+

T-D580-TJ	T-D580-TK

Tips: Installation method of TPMS sensor
There are two types of TPMS tire sensor. One is built-in tire sensor with a air tap, so the original tire valve needs to be removed. The other is external tire pressure sensor. The installation of external tire sensor doesn’t need to disassemble the tire. There’s also no wiring and no cumbersome debugging.

Installation method of internal tire sensor:
1. Take off the tire first, pull out the original valve, and clean up the residue on the wheel rim.
2. Insert the built-in tire pressure sensor into the valve hole of the wheel rim.
3. Use hex wrench in the tool set to fix the sensor, and then tighten the nut.
4. Adjust the angle of the sensor to a suitable position according to the rim.
5. Use hex wrench to lock and fix the sensor again.
6. Install the tires and wheel rim, and use the tire inflator to inflate the tire full.
7. Dynamically balance all tires and match lead blocks.
8. Finally install all the tires back.
Installation method of external tire sensor:
1. Screw in the tamper ring onto the air valve first, then put the sensor onto the air valve and tighten it.
2. Tighten the anti-dismantling ring to toward to the tire sensor direction by hand.
3. Finally, fasten the anti-dismantling ring with the hex wrench and tighten it.
