Motorcycle TPMS equips a small wireless display and 2 wireless tire sensors to realize front and rear wheels monitoring of pressure and temperature in real-time.

Features:

TPMS with 2 sensors can real-time monitor the tire pressure and temperature of your motorcycle and automatically update the data on the display at the same time. Once there are something abnormal, the TPMS will warn you immediately.
Motorcycle tire pressure monitoring system provides five types of alarms, including high pressure alarm, low pressure alarm, high temperature alarm, fast air leak alarm and sensor low battery alarm. The user can also set the pressure and temperature alarm value in the setting range.
With built-in explosive-proof lithium battery, TPMS display can be fully charged with USB power cable in about one hour with no worry about charging at the high temperature. With charging protection, it provides a safe guard for TPMS and extend its service life.
Adopting advanced chip, TPMS features high accuracy sensing, fast feedback speed, stable signal, long-distance transmission, low consumption and anti-interference, and the sensors adapt to all weather, anti-dust, waterproof, snow and high temperature protection, anti-drop off and anti-theft.

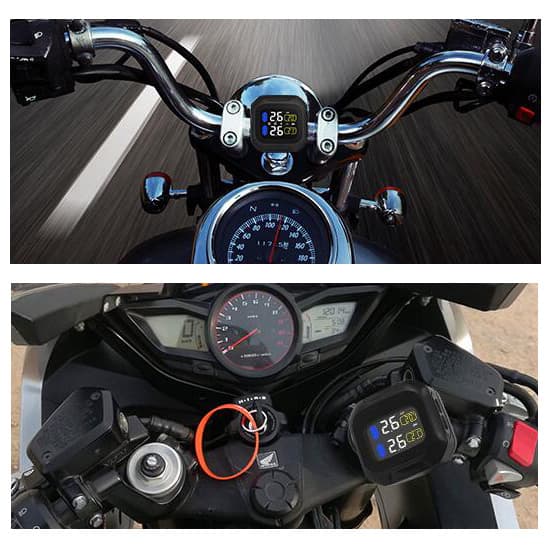

With wireless transmission design, the tire pressure monitoring system is easy to installation and setup. The TPMS display can be conveniently installed to the motorcycle with the bracket, and the sensors are also easy to disassemble and install (for the installation steps, please refer to the catalog page).

Specification:

Basic	Model	T-M3-WF1	T-M3-WI1	T-M3-WF2	T-M3-WI2	T-M3-TH
	Weight	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg
	Pressure range	0-8 bar	0-8 bar	0-8 bar	0-8 bar	0-8 bar
	Accuracy	<0.01 bar	<0.01 bar	<0.01 bar	<0.01 bar	<0.01 bar

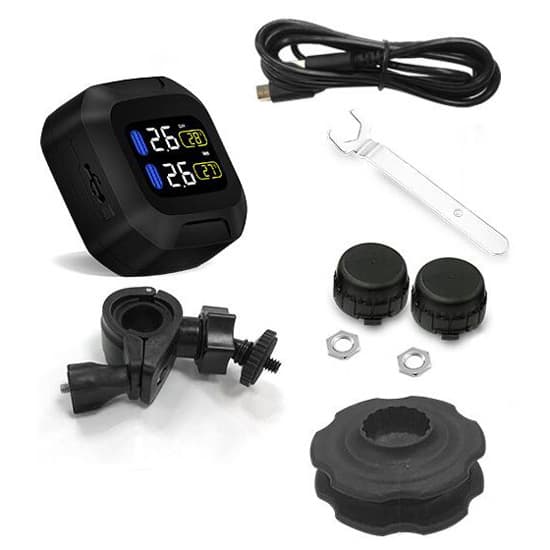

	Packing included	1 * LED display; 2 * silver tire sensors; 2 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor; 1 * power cable; 1 * bracket	1 * LED display; 2 * silver tire sensors; 2 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor; 1 * power cable; 1 * bracket	1 * LED display ; 2 * black tire sensors; 2 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor; 1 * power cable; 1 * bracket	1 * LED display; 2 * black tire sensors; 2 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor; 1 * power cable; 1 * bracket	1 * LED display; 2 * black tire sensors; 2 * air taps; 1 * power cable; 1 * bracket 1 * installation note; 1 * paster
	Function	Wireless remote sensing technology, predict air leakage, prevent tire burst, detect swelling, reduce wear, prevent running deviation
LED display	Size (LWH)	482748mm
	Data update frequency	1 time/3 second
	Power supply	USB charger
	Working temperature	0-80℃ >70℃, LED display will stop charging >80℃, LED display will stop working When LED display gets back to normal temperature, it will restore real-time monitoring status
	Function	High-pressure alarm (3 bar), low-pressure alarm (2 bar), high-temperature alarm (65℃), air leakage alarm, tire sensor low-battery alarm, battery charging protection
Tire sensor	Installation mode	External	External	External	External	Built-in
	Size	Diameter: 23mm, Height: 15mm	Diameter: 18mm, Height: 13mm	Diameter: 23mm, Height: 15mm	Diameter: 18mm, Height: 13mm	LWH: 451550mm
	Dynamic balance detection	No need	No need	No need	No need	Need
	Battery warranty	2-3 years	1-2 years	2-3 years	1-2 years	2-3 years
	Battery replacement	By user	By user	By user	By user	By manufacture

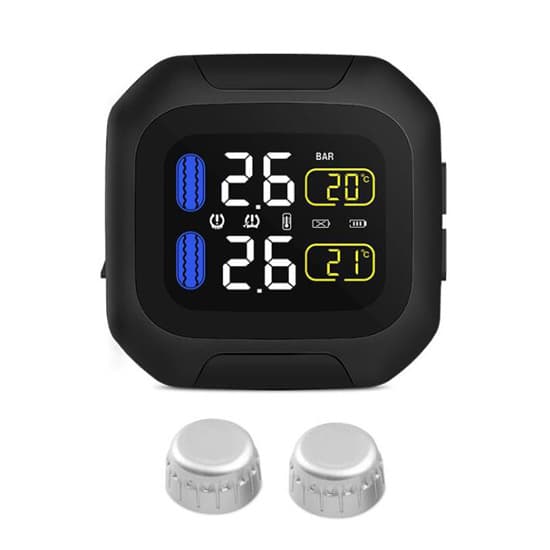

TPMS Display:

TPMS Sensors:

Mini External Sensor (WI Version) | Standard External Sensor (WF Version)

Internal Sensor (TH Version)

Package Included:

T-M3-WF1 TPMS w/ External Sensors (Silver)

T-M3-WI1 TPMS w/ Mini External Sensor (Silver)

T-M3-WF2 TPMS w/ External Sensors (Black)

T-M3-WI2 TPMS w/ Mini External Sensors (Black)

T-M3-TH TPMS w/ Internal Sensors

Tips: Alarm setting of TPMS

TPMS requires user preset parameters before use. The default values of general parameters are:
1. Motorcycle
  High pressure alarm value: 3.0bar, low pressure alarm value: 2.0bar, high temperature alarm value: 65℃.
2. Car
  High pressure alarm value: 3.0bar, low pressure alarm value: 2.0bar, high temperature alarm value: 65℃.
3. RV
  High pressure alarm value: 4.0bar, low pressure alarm value: 2.0bar, high temperature alarm value: 65℃.
4. Heavy duty truck
  High pressure alarm value: 175PSI, low pressure alarm value: 100PSI, high temperature alarm value: 65℃.
When the tire monitoring data exceeds the preset value, the corresponding value of tire on the display flashes, the fault icon is displayed and an alarm sound is issued. There are 3 cases where the preset value is exceeded:
- Tire pressure is higher than high pressure alarm value.
- Tire pressure is lower than low pressure alarm value.
- The temperature is higher than the high temperature alarm value.
When the tire leaks, the tire pressure value is shown on the LCD display, the leak icon flashes and an alarm sounds.
When the battery of the sensor is low, the corresponding tire icon and low battery text flashes, and an alarm sound is emitted.
Press any key will cancel the alarm sound, but the alarm data will still be displayed until the fault is eliminated.
