Name: Paintless Dent Repair Induction Heater, 1000W, 110V/220V
Brand: Tool
SKU: 833
Availability: InStock

Paintless Dent Repair Induction Heater, 1000W, 110V/220V

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

44 People watching this product now!

PDR (Paintless Dent Repair) induction heater adopts new electromagnetic pluse technology. When using the repair head on the dent of vehicle body, the tension of metal plate will be released, and then the dent part will pop out automatically. Finally, the dent will be removed easily.

Feature:

PDR induction heater is suitable for repairing round and gentle dents without disassembling automobile steel plates.
The integrated electromagnetic induction heating head ensures no loss of magnetic field power.
Induction heater can be equiped with power supply 110VAC/220VAC. No need for any consumables,
The heating power and time can be adjusted to prevent damage to the painted surface after the time is extended.
Simple operation, fast repair and high efficiency.

Specification:

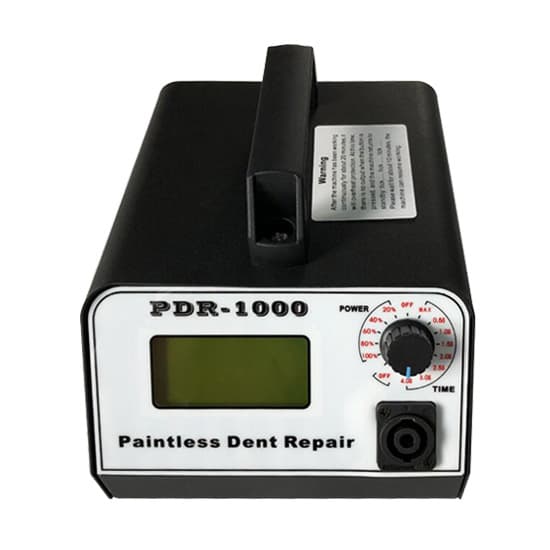

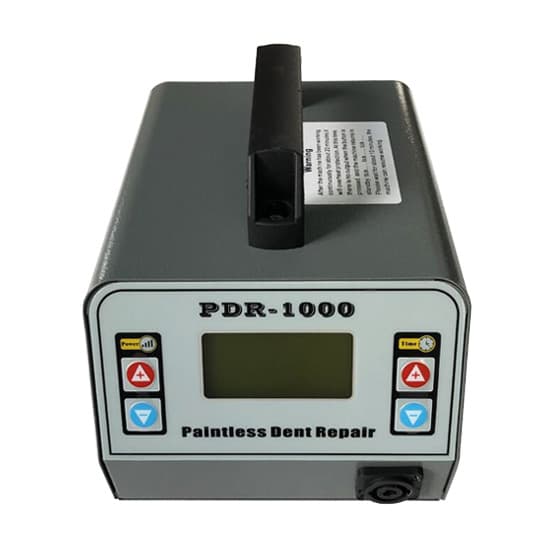

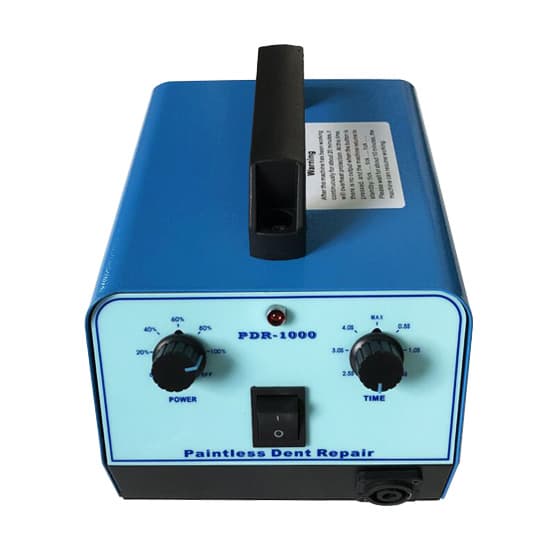

Model	T-PDR-1000-01	T-PDR-1000-02	T-PDR-1000-03
Weight	2.5kg	2.5kg	2.5kg
Size	220170170mm	220170170mm	220170170mm
Input voltage *	110VAC, 220VAC	110VAC, 220VAC	110VAC, 220VAC
Input frequency	50/60Hz	50/60Hz	50/60Hz
Rated input current	5A	5A	5A
Rated power	1000W	1000W	1000W
Operation voltage of head	5VDC	5VDC	5VDC
Power factor	≥0.95	≥0.95	≥0.95
Color	Black	Gray	Blue
Display	LCD screen	LCD screen	No
Control mode	1 turn-knob for POWER & TIME adjustment	2 keys for POWER adjustment, 2 keys for TIME adjustment	1 turn-knob for POWER adjustment, 1 turn-knob for TIME adjustment
Adjustment range	Power: 20%~100% Time: 0.5s~4.0s	Power: 20%~100% Time: 0.5s~4.0s	Power: 20%~100% Time: 0.5s~4.0s
Efficiency	≥90%	≥90%	≥90%
Cooling mode	Air-cooled	Air-cooled	Air-cooled
Protection class	IP23	IP23	IP23
Working temperature	-40~+60℃ (-40~140℉)	-40~+60℃ (-40~140℉)	-40~+60℃ (-40~140℉)
Relative humidity	＜95%RH	＜95%RH	＜95%RH
Applicable parts of car body	Dents on the flexible steel metal body (NOT include aluminum body), such as car front cover, back cover and doors..
Applicable types of dents	1. Gentle dents such as hail dents. 2. Small dents after processing by professional PDR tools. 3. Auxiliary repair of other types of dents.

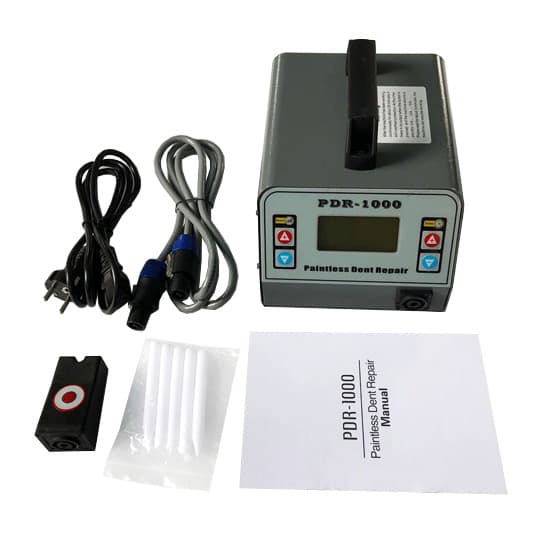

Packing included	1 * PDR induction heater 1 * repair head 1 * power cable 1 * quick connection cable 5 * repair pens 1 * user manual

Tips: How to use a paintless dent repair induction heater for car body repair?

Operation steps:

First, set the working time or power of the paintless dent repair induction heater according to the size of the dent and the color of the paint. Generally, set the time to the 0.5-1s.
Take the dent as the center circular area 4, and mark the ring areas from inside out as 3, 2, 1.
Hold the repair head, press the switch, and surround the dent area for operation in sequence. Firstly surround the circumference of area 1 to area 2, 3, 4 to heat, and wait for cooling.
Then turn around from area 2 to area 3, 4 for heating and wait for cooling. And then around area 3 for heating in turn to area 4 and wait for cooling.
Focus on heating in area 4 and wait for cooling, and then dent removal is complete. (Some areas may need to repeat the above steps multiple times.)

Notes in use:

Before using the induction heater, please wear a protective mask, protective gloves and overalls to prevent burns during operation.
3. The user shall not wear any metal objects, such as watches, necklaces, keys, belt buckles, coins, zippers, etc.
Be careful not to work in the same area for more than 1 second. It is recommended to use compressed air or wet towels to cool the body during operation in the work area.
A lot of heat will be generated during the repair, and the car metal body will become soft. Don’t force downwards to avoid enlargement of the dent area.
Pay attention to the surface temperature of the car body during the repair process. Overheating will damage the paint and cause greater damage.
If the dent is pulled excessively and bulges, use a repair pen to flatten it little by little.
It is recommended that the user first practice the use of the PDR induction heater on an unused engine cover, so as to understand the equipment performance and potential damage more quickly.
