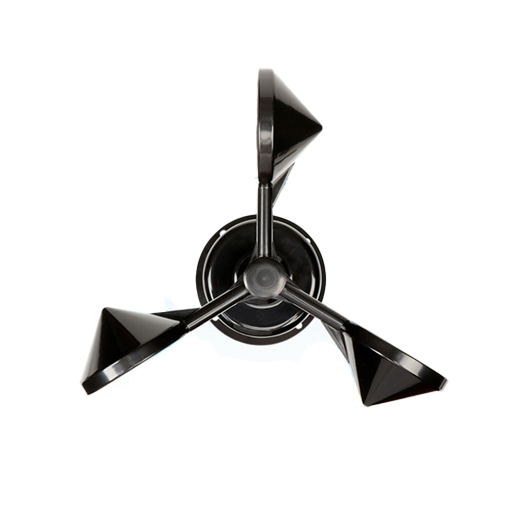

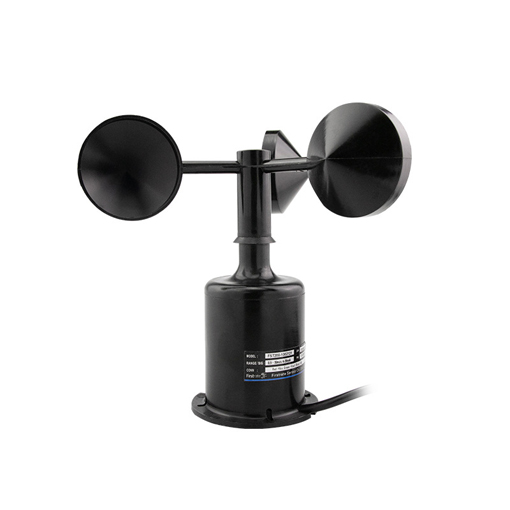

The model of the three-cup anemometer leverages fluid dynamics principles and boasts an integrated design. It boasts a low starting wind speed of 0.5m/s and supports 360° measurements.

Specification

Model	BRW200-1002
Material	Polycarbonate
Operating Voltage	DC 12-30V
Measurement Range	0~50 m/s
Starting Wind Speed	≥0.5 m/s
Wind Resistance	>70 m/s
Accuracy	±0.5 m/s (<5 m/s); ±3%FS (≥5 m/s)
Output Signal	4~20 mA/RS485 (optional)
Protection Level	IP65
Electrostatic Protection	15 kV
Operating Temperature	-20℃~+85℃
Operating Humidity	0%~95% (non-condensing)
Weight	0.5 kg

Polycarbon 3-Cup Anemometer Features

The polycarbonate housing is durable, corrosion-resistant, and rust-proof, ensuring reliable outdoor operation.
Internal high-performance bearings minimize resistance for accurate readings.
A unique bearing cap design prevents rainwater from damaging the circuitry.
The cable exit options at the bottom and side prevent connector rubber from aging, enhancing longevity.

Polycarbon 3-Cup Anemometer Dimension (unit:mm)

Polycarbon 3-Cup Anemometer Recommended Application Scheme

Applications

Tips: What precautions should be taken when measuring wind speed?

It is crucial to calibrate the anemometer according to the manufacturer’s guidelines before use. Additionally, the device should be positioned at the correct height and in a location free from obstacles like buildings or trees that could disrupt the natural flow of wind.
Iit is important to avoid operating the anemometer during harsh weather conditions such as heavy rain, snow, or storms. These conditions can not only damage the instrument but also lead to skewed readings due to altered wind patterns.
Regular maintenance, including cleaning and checking for any signs of wear or damage, is necessary to maintain the device’s accuracy and longevity.
Always prioritize safety when using anemometers, especially in high wind conditions. Secure the device properly to prevent it from becoming a projectile or causing harm to individuals or property.
