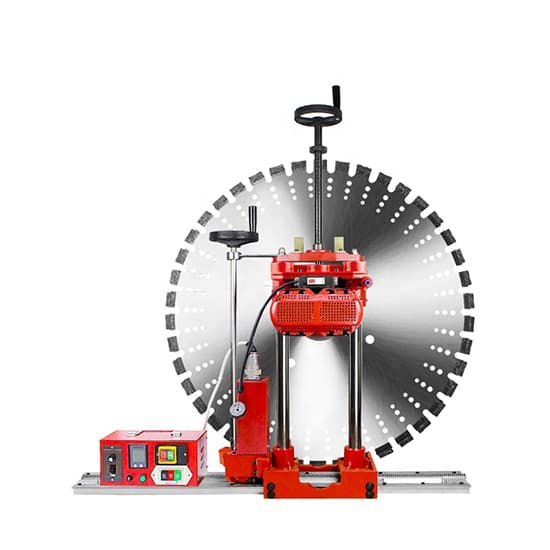

Cheap and best concrete brick wall cutter machine is semi-automatic version, with an 220V, 50Hz, 8500W electric motor, cutting depth up to 400mm (16 inch). Portable wall cutter machine construction tool is mainly used for building or old building renovation, reinforcement, change the design.
Specification
| Model | T-JL-S1000X |
| Saw Type | Circular Saw |
| Max. Cutting Depth | 400mm (16″) |
| Voltage | 220V AC |
| No-load Speed | 300 r/min |
| Power | 8500W |
| Frequency | 50Hz |
| Standard Saw Blade | 1000mm (39″) |
| Weight (with package) | 135 kg |
| Dimension | Main Engine: 570*550*870 mm (22″*21″*34″) |
| Protected Hood: 1090*120*1090 mm (43″*5″*43″) | |
| Guide Rai: 1220*170*90 mm (48″*7″*3.5″) | |
| Application | Wall, Pillar, Building Renovation, Road, Bridge and Railway |
Features
1. Stainless Steel Chuck Plate: Chuck plate with dewatering orifice made of steel could connect to the water pump to dedust.
2. Protected Hood: Used with stainless steel chuck, effectively prevent dust droplets, sewage splashing, and accidental occurrence of saw blade operation.
3. Diamond Saw Blade: Thicken steel sharp cutting head, durable, high strength, and uneasy to transform, suitable for granite, marble, high standard concrete etc.

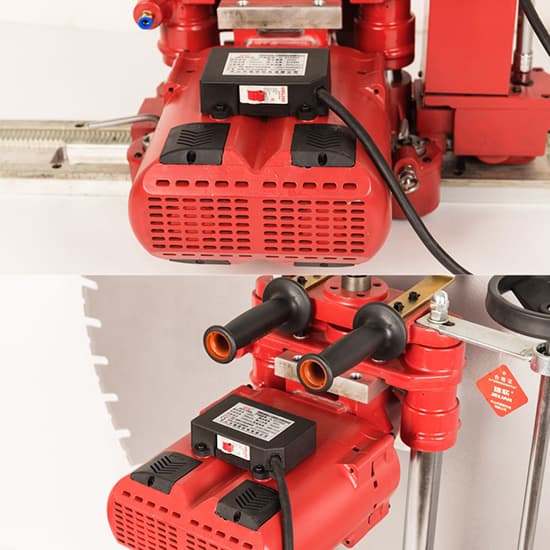

4. Twin Motor: Double industrial grade special motor with durable and stable output, more powerful horsepower and more efficiency.
5. Circuit Breaker: Automatic trip power off after overload, guarantee security. After tripping, it could be reused when the air switch closed again.

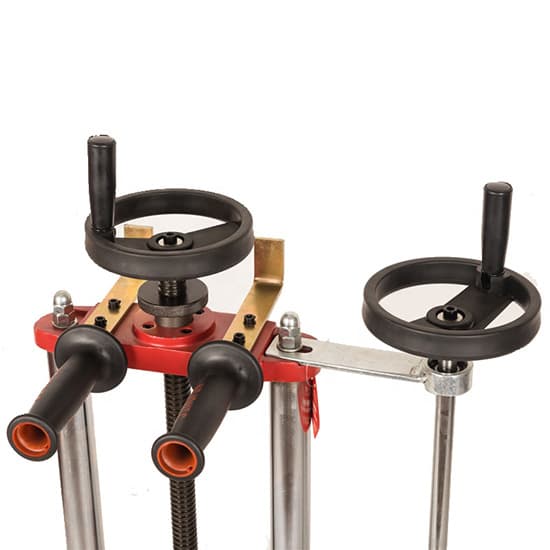

6. Labor-saving Hand Wheel: Aluminum wheel, more durable. Folding plastic handle, user-friendly design.
7. Steel Gear Track: Made of aviation grade aluminum, high density, light weight, easy to fix. The standard is 1.2m, 0.8~2.4m could be customized based on your demand.

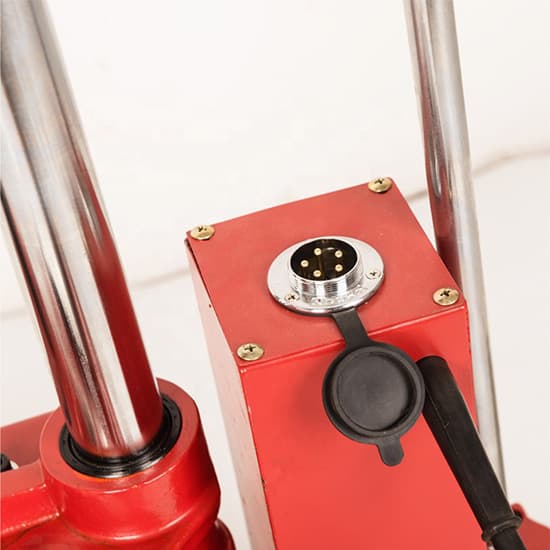

8. Control Case: Showing voltage, power and electric current, easy to check. Could customize detachable base which could be fixed at different position of the steel gear track.
Machine Details
Wall Cutter Accessories
Power Plug Selection
(Note: Power plug can be customized based on your local machine standards)
Tips: How to choose wall cutter machine
The types of wall cutter machines are sophisticated and complex. Workers or companies generally follow three rules when choosing a wall cutting machine.
1. For what you want to cut, different wall cutters are good at cutting different kinds of things.
2. The price I have to pay is because some wall cutting opportunities are very suitable for cutting the current metal, but the price will be too high. At this time, you need to consider the cost performance.
3. Consider the maintenance cost you plan to invest on the wall cutter. The maintenance of some wall cutters is very simple, while the maintenance of some wall cutters is very complicated. It is necessary to ask professionals for maintenance, and the frequency of the maintenance cycle is very high, so it is necessary to invite professionals to come for maintenance.
