Name: Temperature Controlled Soldering Iron, 90W
Brand: Tool
SKU: 136
Availability: InStock

Temperature Controlled Soldering Iron, 90W

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

57 People watching this product now!

The electric soldering iron is suitable for various kinds of micro or large area electronics. Mini size, pen-shape structure for convenient operation. Temperature controlled function ensure the soldering accuracy.

Specification

Model	T-ESI-102C	T-ESI-908	T-ESI-907S
Heating Type	Internal heating type
Temperature Control	Adjustable temperature
Rated Voltage	AC 110V/60Hz, 220V/50Hz
Heating Core	Ceramic heating core
Rated Power	90W	60W	60W
Peak Temperature	280℃~480℃	200℃~450℃	200℃~450℃
Handle Shell	Opaque	Opaque	Transparent
Body Length	225mm	225mm	240mm
Wire Length	1.3m	1.2m	1.3m
Net Weight	200g	150g	150g

Features

Alloy lead-free soldering iron bit, thick copper power wire, fast heat conduction, oxidation resistance, high temperature resistance, anti-aging, and long service life.
5-level of temperature adjustment, accurate temperature control. After the temperature controlled soldering iron reaches to the specified temperature, it will automatically stop heating up. When the chip detects that temperature of the soldering iron has dropped, it will heat to the specified temperature again.
The temperature controlled soldering iron uses SMT chipping technology, integrated circuit board, high stability.

Temperature Controlled Soldering Iron Structure Diagram

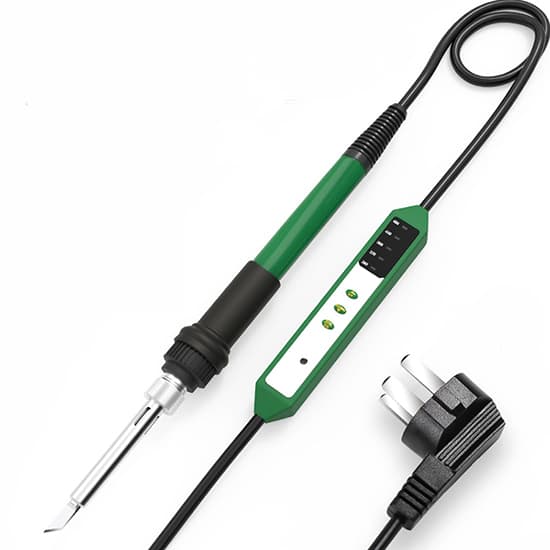

T-ESI-102C

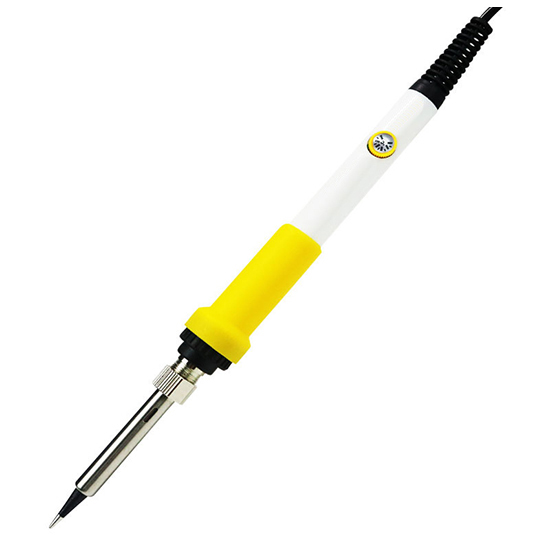

T-ESI-908

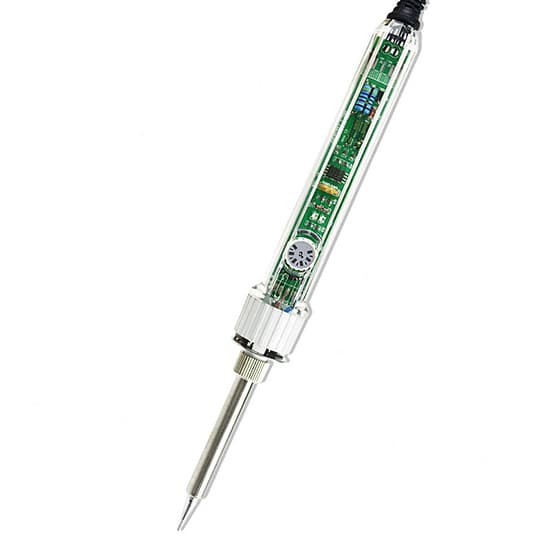

T-ESI-907S

Tips: Precautions for using temperature controlled soldering iron.

Use low temperature for soldering as much as possible.
High temperature will accelerate oxidation to the soldering iron bit and reduce its service life. Please reasonably control the temperature of soldering iron bit.
Don’t apply too much pressure.
When soldering, do not apply too much pressure, otherwise the soldering iron bit will be damaged and deformed. As long as the soldering iron bit can fully contact the soldering point, heat can be transferred. In addition, choosing a suitable soldering iron bit can also help heat transfer.
Always keep dip solder for the soldering iron bit.
Dip soldering can reduce the oxidation speed of soldering iron bit, making it more durable. After use, wait the temperature of soldering iron bit to lower slightly, then add new solder to make the tin-plated layer have a better anti-oxidation effect.
Use low-activity flux.
After use, store it on a suitable soldering iron rack to avoid damage to the soldering iron by collision.
