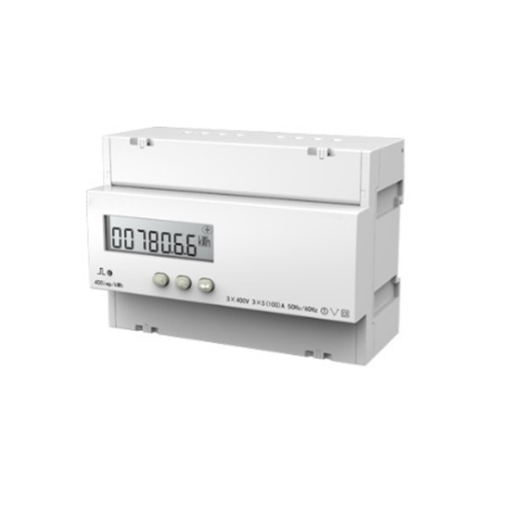

Three Phase DIN Rail Digital Energy Meter, LCD Display
Original price was: $610.55.$61.99Current price is: $61.99.
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
78
People watching this product now!
Description
The LCD backlight screen of the three-phase DIN rail digital energy meter can clearly display what content, the operation interface is simple and easy to use, and no adjustment is required for long-term use. The digital energy meter adopts a high-quality ABS shell, excellent flame retardant performance, easy wiring, and is widely used in rail transportation, smart switch cabinets, smart buildings, smart factories and energy management systems.
Specification
| Model | T-DSS1946 |
| Accuracy Grade | Grade-1 accuracy for active energy |
| Phase | Three phase (3 wire) |
| Rated Voltage | 3x400V AC |
| Current Input | Direct input: 5(100)A / Via CT input: 1.5(6)A |
| Frequency | 50/60Hz |
| Display Mode | LCD display |
| Display Digits | 7 |
| Energy Pulse | 1 active energy pulse output, pulse width (80±20%) ms |
| Measurement Range | Voltage/Current/Active power/Power factor/Frequency |
| RS485 Communication Interface | Modbus-RTU protocol, baud rate up to 9600bps |
| IP Protection | IP54 (panel) /IP20 (case) |
| Certificate | CE/ ISO/ MID |
| Warranty Period | 12 months |
| Dimension | 126*66*90mm |
| Weight | 2.5kg |
| Installation | Din rail 35mm |
| Work Temperature | -10℃~55℃ |
| Storage Temperature | -25℃~70℃ |
Dimension (unit=mm)
Wiring
Tips: Methods for reading three-phase energy meters
- Directly read display data: Directly view the total power (unit: kWh) displayed on the LCD screen, usually in a cyclic display or switched by buttons. Common parameters include: total active power, phase power, voltage/current, power factor.
- Remote reading of smart meters: Connect to the meter through a communication interface (such as RS485, infrared, 4G/NB-IoT), and use a protocol to read data.
