Turbine Type Flow Meter for Liquid, DN4-DN200
Price range: $69.99 through $3,010.24
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |

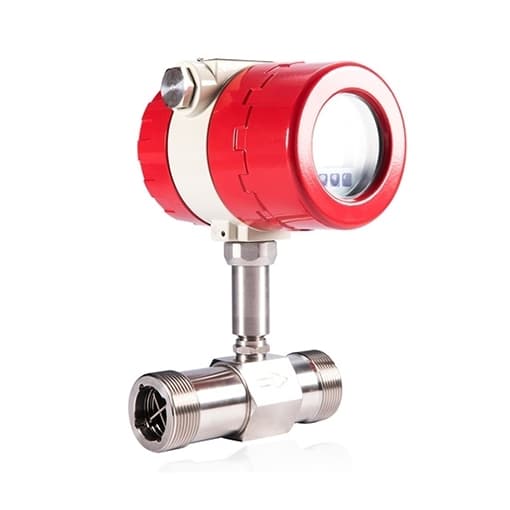

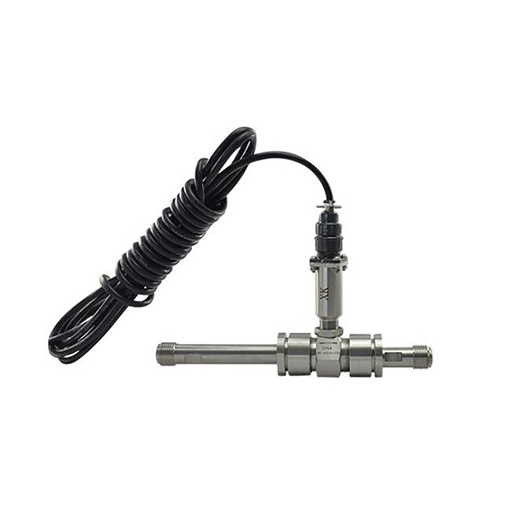

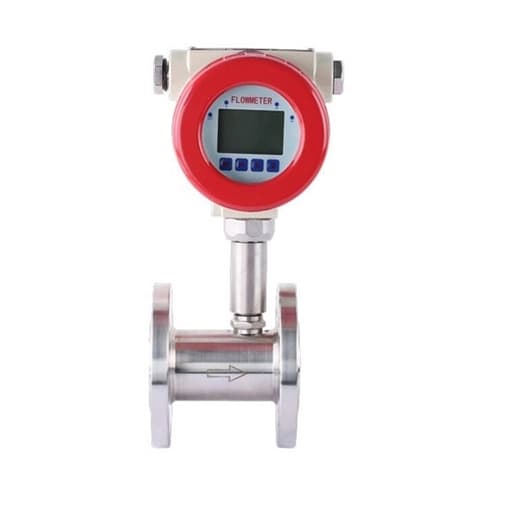

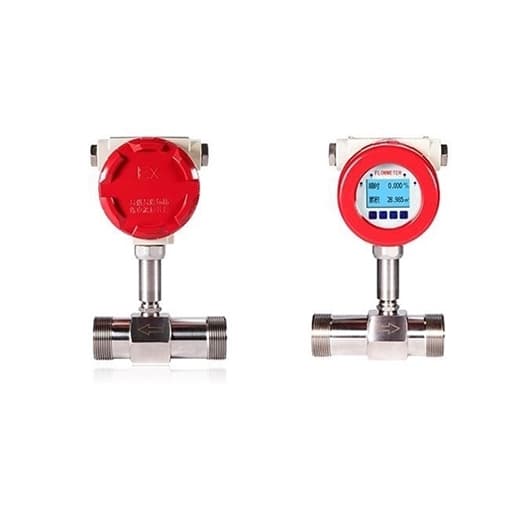

Liquid turbine flow meter is a high precision flow measurement instrument for a wide range of media such as water, LPG, refined oil, light crude oil, organic and inorganic liquids, etc. If the viscosity exceeds the standard, it needs to be calibrated before use. Supports threaded and flanged connections, flexible installation, suitable for different pipe diameters from DN4 to DN200. Powered by 24V DC power supply, the output signal is 3-wire pulse or 2-wire 4-20mA, with LCD display, real-time display of flow data.
Specification
| Model | T-LWGY |
| Measuring Medium | liquid (water, liquefied petroleum gas, refined oil, light crude oil, organic liquid, inorganic liquid and other liquid without fiber, particulate impurities) |
| Medium Viscosity | < 5*10-6 m2/s (for the liquid with more than 5*10-6 m2/s, the flowmeter needs to be calibrated before using.) |
| Nominal Diameter * | DN4 ~ DN200 mm |
| Measurement Accuracy | 1.0%R (For higher accuracy 0.5%R, please contact us.) |
| Pressure Range | 6.3MPa, 2.5MPa, 1.6MPa |
| Medium Temperature | -20 ℃ ~ +120 ℃ (stainless steel measuring tube) |
| Environmental Conditions | Ambient temperature: -20 ℃ ~ +60 ℃ Relative humidity: 5% to 95% Atmospheric pressure: 86kPa ~ 106kPa |
| Power Supply | 24V DC |
| Output Signal * | three-wire pulse output, or two-wire 4-20mA output (Optional) |
| Display * | LCD screen, can display instantaneous flow / accumulative flow (Optional) |
| Connection | Threaded connection (DN4~DN40) Flange connection (DN50 ~ DN200) |
| Communication * | RS485 (Optional) |
| Protection Class | IP65 (IP68 can be customized) |
Liquid Turbine Flow Meter Flow Range
| Size (mm) | Flow Range (m3/h) | Pressure Range | Connection |
| DN4 | 0.04 ~ 0.4 | 6.3MPa | Threaded |
| DN6 | 0.1 ~ 0.6 | 6.3MPa | Threaded |
| DN10 | 0.2 ~ 1.2 | 6.3MPa | Threaded |
| DN15 | 0.6 ~ 6 | 6.3MPa | Threaded |
| DN20 | 0.8 ~ 8 | 6.3MPa | Threaded |
| DN25 | 1 ~ 10 | 6.3MPa | Threaded |
| DN32 | 1.5 ~ 15 | 6.3MPa | Threaded |
| DN40 | 2 ~ 20 | 6.3MPa | Threaded |
| DN50 | 4 ~ 40 | 2.5MPa | Flange |
| DN65 | 7 ~ 70 | 1.6MPa | Flange |
| DN80 | 10 ~ 100 | 1.6MPa | Flange |
| DN100 | 20 ~ 200 | 1.6MPa | Flange |
| DN125 | 25 ~ 250 | 1.6MPa | Flange |
| DN150 | 30 ~ 300 | 1.6MPa | Flange |
| DN200 | 80 ~ 800 | 1.6MPa | Flange |
Liquid Turbine Flow Meter Dimension (unit:mm)
| Size (mm) | L (mm) | G (inch) | K (mm) | d (mm) | n (number of holes) |
| DN4 | 225 | G1/2″ | – | – | – |
| DN6 | 225 | G1/2″ | – | – | – |
| DN10 | 345 | G1/2″ | – | – | – |
| DN15 | 75 | G1″ | Ф65 | Ф14 | 4 |
| DN20 | 80 | G1″ | Ф75 | Ф14 | 4 |
| DN25 | 100 | G5/4″ | Ф85 | Ф14 | 4 |
| DN32 | 140 | G2″ | Ф100 | Ф14 | 4 |
| DN40 | 140 | G2″ | Ф110 | Ф18 | 4 |
| DN50 | 150 | G5/2″ | Ф125 | Ф18 | 4 |
| DN65 | 170 | – | Ф145 | Ф18 | 4 |
| DN80 | 200 | – | Ф160 | Ф18 | 8 |
| DN100 | 220 | – | Ф180 | Ф18 | 8 |
| DN125 | 250 | – | Ф210 | Ф18 | 8 |
| DN150 | 300 | – | Ф240 | Ф22 | 8 |
| DN200 | 360 | – | Ф295 | Ф22 | 12 |
Tips: What are the application scenarios of liquid turbine flow meters?
Liquid turbine flow meter is widely used in industrial manufacturing, petrochemical, water supply system, agricultural irrigation and fuel management. It is particularly suitable for measuring transparent, solid particle-free liquids such as diesel, alcohol, gasoline and so on. Due to its high accuracy and response speed, it is commonly used where accurate flow measurement is required.
