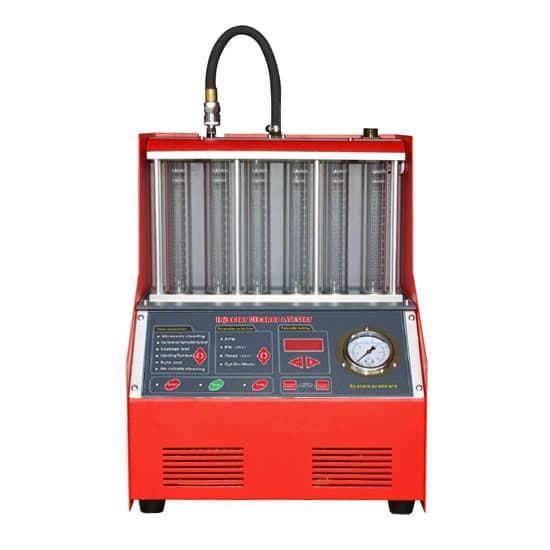

6 cylinder fuel injector tester and cleaner is a mechatronics device that combines ultrasonic cleaning technology and microcomputer closed-loop control cleaning and detection technology. It can simulates various working conditions of the engine, cleans and detects the fuel injectors of various vehicles, and can also clean the fuel injectors and fuel supply systems without disassembly.

Specification:

Model	T-CNC602A
Shipping weight	38kg
Size of tester	385410500mm
Power supply	AC 220V±10%, 50/60Hz
Input power	250W
Range of speed	10~9990rpm (minimum unit: 10rpm)
PWM pulse width	0.5~25.0ms (minimum unit: 0.1ms)
Ultrasonic cleaning time	1~9999s (adjustable)
Ultrasonic cleaning power	100W
Capacity of tank	4700ml
Display	4 digit LED
Function	01 Ultrasonic cleaning 02 Uniformity/Sprayability test 03 Leakage test 04 Injecting flow test 05 Automatic cleaning test 06 On-vehicle cleaning
Working environment	Environment temperature: 10~30℃ (50~86℉) Relative humidity: ＜85% External magnetic field strength: ＜400A/m Open fires are not allowed.

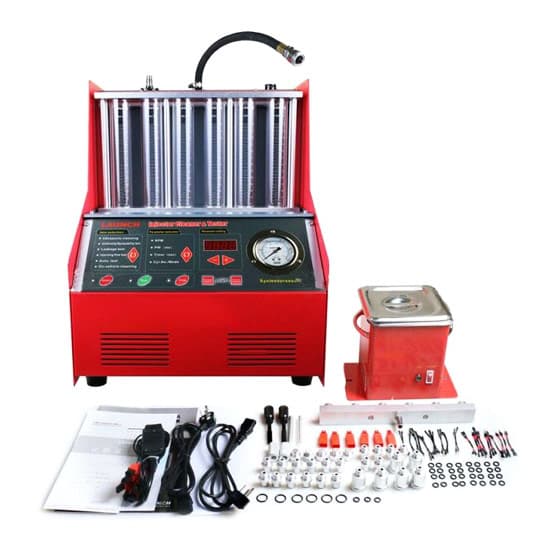

Packing included	1 * injector tester 1 * on-vehicle connector kit 5 * stoppers 1 * oil circuit board 4 * screws 2 * nuts 1 * plug kit for BUICK injector 2 * CNC-Pulse signal connection cable kits 1 * power cable kit 1 * user manual

Tips: Operation steps of fuel injector ultrasonic cleaning

Cleaning steps of fuel injector spray-hole
1. Add an appropriate amount of cleaning agent to the ultrasonic cleaning tank. Generally, the cleaning agent can be about 20mm higher than the needle valve of the injector.
2. Turn on the power of the ultrasonic injector cleaner.
3. Put the fuel injector on the ultrasonic cleaning strainer.
4. Insert the pulse signal cable to the fuel injector and turn on the ultrasonic power switch.
5. Select the ultrasonic cleaning function, then set the time (the system default value is 600 seconds), and then press the run key.
6. During the ultrasonic cleaning process, the fuel injector will be cleaned according to the program normally open, normally closed, pulse open, etc.
7. When this work is over, the system will automatically stop and beep with a buzzer to indicate that the ultrasonic power switch can be turned off.
8. Take out the fuel injector from the cleaning tank and clean the cleaning agent on it with a soft cloth.
Cleaning steps of whole fuel injector and filter deposits
1. Remove the strainer of the ultrasonic cleaner, and immerse the entire fuel injector in the cleaning agent.
2. Turn on the power of the ultrasonic cleaner.
3. Turn on the ultrasonic power switch, and the cleaning it until the fuel injector filter is thoroughly cleaned.
4. Turn off the power, take out the fuel injector from the cleaning tank, and wipe the cleaning agent on it with a soft cloth.
