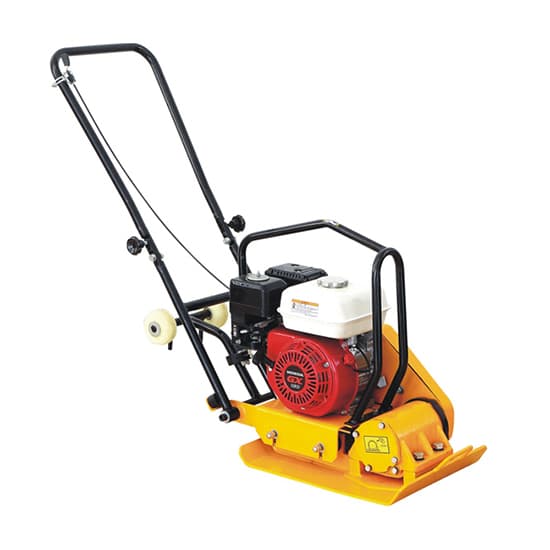

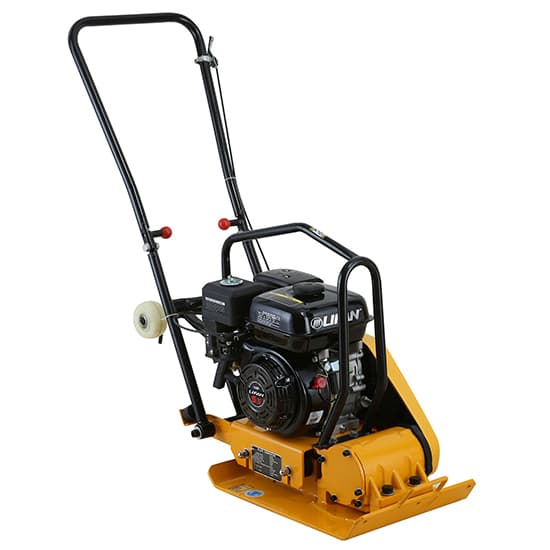

Name: Vibratory Plate Compactor, 10 kN, 5.5 HP, 530x350 mm
Brand: Tool
SKU: 734
Availability: InStock

Vibratory Plate Compactor, 10 kN, 5.5 HP, 530×350 mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

26 People watching this product now!

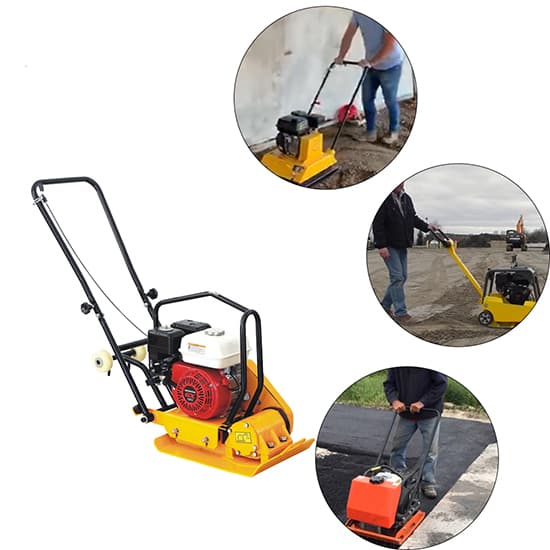

Lower price vibratory plate compactor for sales, offers 10 kN centrifugal force, 530 x 350 mm plate size, 5800 vibrations per minute, 20m/min travel speed, equipped 5.5 HP 4-stroke gasoline engine, is a construction tool designed for the compaction of granular, mixed materials with some cohesive content.

Features

Powerful 5.5 HP Honda / Robin / Chinese petrol engine supports 2360 lbf of centrifugal force.
Engine type is forced air-cooled, 4-stroke gasoline engine.
Foldable handle for easy transport and stock.
Compacting plate is 530 x 350 mm (20.87 x 13.78 inch) to cover more ground in less time.
More powerful force, better compaction effect, lower maintenance cost and long life time.
Delivers 5800 vibrations per minute to achieve results quickly.
Compaction of soil, debris and aggregate materials up to 12 inch.

Specification

Model	T-C60
Frequency	5800 VPM (Vibrations per Minute)
Engine Type	Air-cooled, 4-stroke, single cylinder
Centrifugal Force	10 kN (2360 lbf)
Brand of Engine	Honda / Robin gasoline engine, Chinese petrol engine
Power of Engine	4 kW (5.5 HP)
Plate Size	530 x 350 mm (20.87 x 13.78 inch)
Gradeability Degrees	20
Travel Speed	20 m/min
Compaction Depth	300 mm (12 inch)
Packing Size	790 x 480 x 720 mm (31.1 x 18.9 x 28.35 inch)
Net Weight / Gross Weight	65 / 75 kg
Packing Way	Hob with Carton
Certificate	CE, ISO900
Warranty	1 year

Tips: Plate compactor vs. tamping rammer

Plate compactor

Plate compactor uses vibration to tamp down soil, so it is ideal for dealing with granular soils. This gives a good play to the strength of the vibrating substrate in place. A compactor plate is wider than a rammer plate, which means that its weight and compacting strength are distributed over a larger area, suitable for compacting larger areas. In addition, due to its ergonomic design and operating procedures, easy to operate, while saving time and cost. These compaction machines are better suited for flat surfaces and provide a uniform coating over such areas. Therefore, the equipment is perfect for roadbed and asphalt driveway, parking and maintenance.

Tamping rammer

Due to the compact size of the plate, the tamping rammer machine works well when tamping the cohesive soil. The smaller plate size allows for more concentrated and direct compaction, which requires more force in the soil to facilitate proper compaction. Because of their slender and upright structure, the jumping jack tamper is also great for trenches and tight place where the plate compactor is not easy to manipulate. Tamping rammers can compact deeper soil than plate rammers because the force from the slab is more direct. Therefore, more soil can be added to each layer, which can make the process of filling and compacting a hole or trench much faster.
