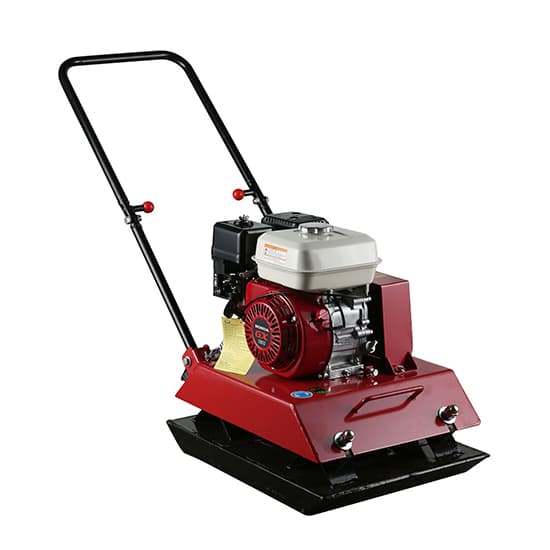

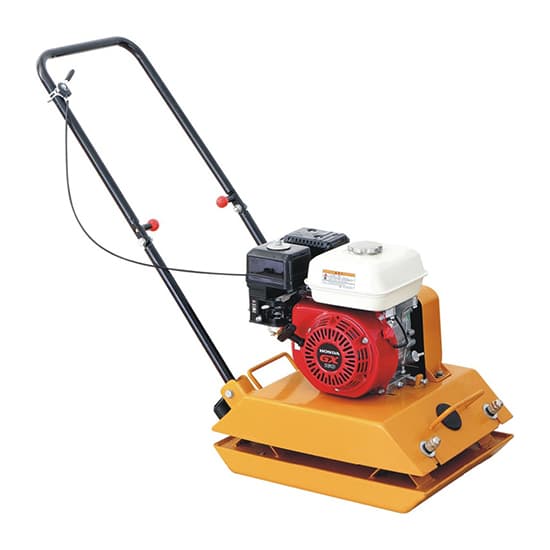

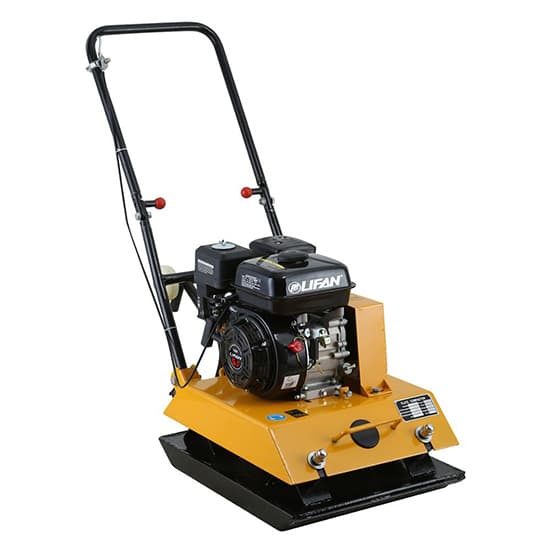

Name: Vibratory Plate Compactor, 13 kN, 5.5 HP, 560x430 mm
Brand: Tool
SKU: 735
Availability: InStock

Vibratory Plate Compactor, 13 kN, 5.5 HP, 560×430 mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

32 People watching this product now!

Buy single direction vibrator plate compactor with good price. Its durable design features a 5.5 HP 4-stroke gasoline engine to deliver 2923 lbf of impact force at 5800VMP per minute. Mini plate compactor is suitable for compacting sand, gravel, grit and granular materials.

Features

Powerful 5.5 HP Honda / Robin engine supports 2923 lbf of centrifugal force.
Engine type is forced air-cooled, 4-stroke gasoline engine.
Foldable handle for easy transport and stock.
Compacting plate is 560 x 430 mm (22.05″ x 16.93″) to cover more ground in less time.
More powerful force, better compaction effect, lower maintenance cost and long life time.
Delivers 5800 vibrations per minute to achieve results quickly.
Compaction of soil, debris and aggregate materials up to 12 inch.

Specification

Model	T-C77
Frequency	5800 VPM (Vibrations per Minute)
Engine Type	Air-cooled, 4-stroke, single cylinder
Centrifugal Force	13 kN (2923 lbf)
Brand of Engine	Honda / Robin gasoline engine, Chinese petrol engine
Power of Engine	4 kW (5.5 HP)
Plate Size	560 x 430 mm (22.05 x 16.93 inch)
Gradeability Degrees	20
Travel Speed	20 m/min
Compaction Depth	300 mm (12 inch)
Packing Size	640 x 520 x 760 mm (25.2 x 20.47 x 29.92 inch)
Net Weight / Gross Weight	77 / 85 kg
Packing Way	Hob with Carton
Certificate	CE, ISO900
Warranty	1 year

Tips: How to better maintain the 5.5HP 13 kN vibratory plate compactor?

If the plate compactor is not used for a long time, close the fuel-saving valve (oil circuit switch, under the choke valve), and then run at idle speed to let the oil in the carburetor burn up.
During the asphalt repair operation, diesel oil can be applied to the bottom plate of plate cpmpactor to prevent the asphalt from sticking.
When working with cement or stabilizing layer, pay attention to cleaning the machine after use.
The fuel used for plate ramming is pure gasoline, and no-lead gasoline above 93 is added.
Let the engine idling for 2-3 minutes before working, also let the engine idling for 2-3 minutes before stalling.
When the 5.5 HP 13kN plate compactor is working, adjust the throttle to the maximum position.
