Name: Vibratory Plate Compactor, 20 kN, 6.5 HP, 660x510 mm
Brand: Tool
SKU: 737
Availability: InStock

Vibratory Plate Compactor, 20 kN, 6.5 HP, 660×510 mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

80 People watching this product now!

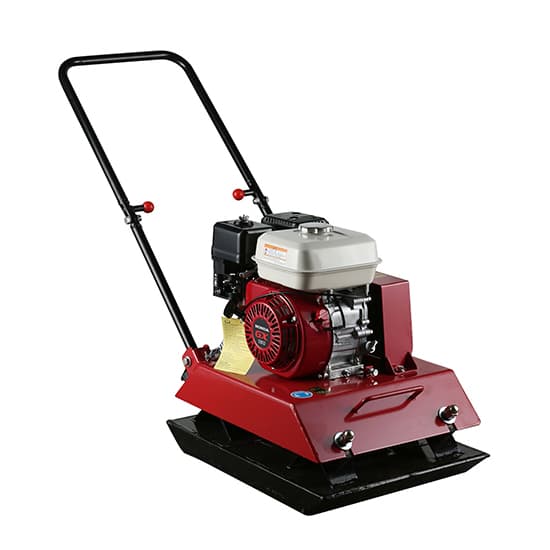

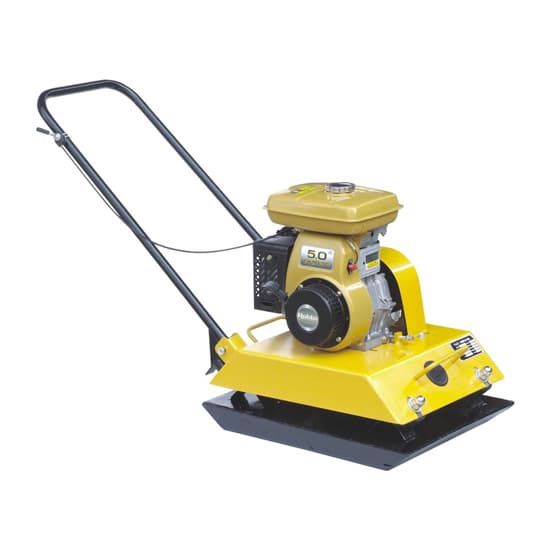

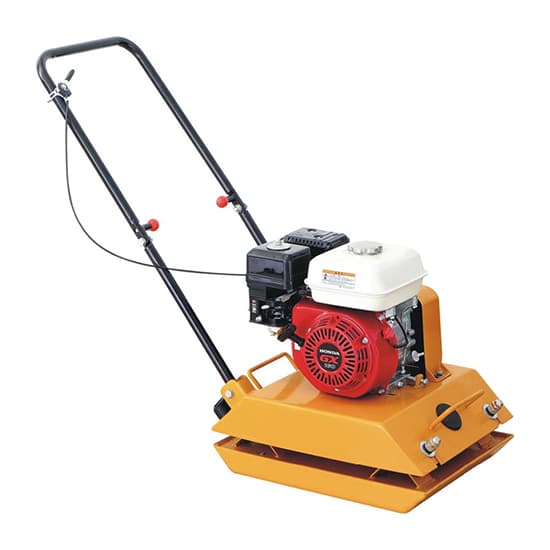

Single direction vibratory plate compactor machine with lower price, provides 20 kN (4496 lbf) of impact force oscillating at 5500 VPM frequency, driven by Honda / Robin gasoline engine with 6.5 HP and the plate size is 660 x 470 mm (23.62 x 18.5 inch), control handle allows for effortless rotating and turning, is perfect construction tool for commercial work with good compaction depth.

Features

Powerful 6.5 HP Honda / Robin engine supports 4496 lbf of centrifugal force.
Engine type is forced air-cooled, 4-stroke gasoline engine.
Foldable handle for easy transport and stock.
Compacting plate is 660 x 510 mm (25.98 x 20.08 inch) to cover more ground in less time.
More powerful force, better compaction effect, lower maintenance cost and long life time.
Delivers 5500 vibrations per minute to achieve results quickly.
Compaction of soil, debris and aggregate materials up to 12 inch.

Specification

Model	T-C120
Frequency	5500 VPM (Vibrations per Minute)
Engine Type	Air-cooled, 4-stroke, single cylinder
Centrifugal Force	20 kN (4496 lbf)
Brand of Engine	Honda / Robin gasoline engine, Chinese petrol engine
Power of Engine	5 kW (6.5 HP)
Plate Size	660 x 510 mm (25.98 x 20.08 inch)
Gradeability Degrees	20
Travel Speed	20 m/min
Compaction Depth	300 mm (12 inch)
Packing Size	720 x 560 x 760 mm (28.35 x 22.05 x 29.92 inch)
Net Weight / Gross Weight	110 / 125 kg
Packing Way	Hob with Carton
Certificate	CE, ISO900
Warranty	1 year

Tips: How to reduce costs when using 6.5HP 20kN plate compactor?

1. Reasonable workload

The workload of the plate compactor has a significant impact on the process of machine loss. Generally, component wear increases with increasing load. If the load on the part is higher than the average design load, the wear of the part will increase. Similarly, under the same other conditions, stable load has less wear, fewer failures and shorter lifespan than dynamic load.

2. Use lubricants scientifically

According to statistics, more than half of plate compactor failures are due to poor lubrication. The accuracy of each construction tool can ensure good lubrication to maintain normal working clearance and proper working temperature, thereby reducing parts wear and mechanical failure. Normal and reasonable lubrication is one of the effective measures to reduce machine failures. Therefore, lubricants should be used rationally.
