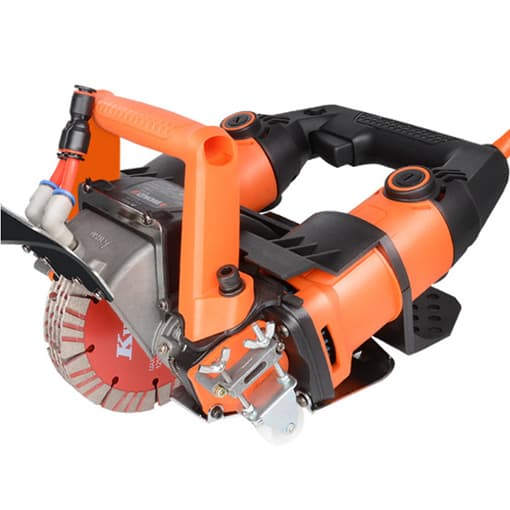

Name: Wall Chaser Grooving Machine, 5200W, 140mm
Brand: Tool
SKU: 684
Availability: InStock

Wall Chaser Grooving Machine, 5200W, 140mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

73 People watching this product now!

Wholesale wall chaser with laser features 5200 watt 50Hz 220V double electric motor, 140mm (5.5″) saw blade diameter, 10500 rpm working speed, widely used as a multi-purpose tool in the construction industry to cut different materials. The depth and width can be adjusted to 45mm (1.8“) and 72mm (2.8“) respectively.

Description

Model	T-1202
Saw Type	circular saw
Voltage	220V AC
Power	5200W
Saw blade diameter	140mm (5.5“)
Saw blade dimension	140202.5mm (5.5″0.8″0.1″)
No-load Speed	10500(rpm)
Max. Cutting Depth	45mm (1.8“)
Cutting Depth	45mm (1.8“)
Cutting Width	72mm (2.8“)
Net Weight / Gross Weight	7kg (15.4 pounds) / 9.5kg (20.9 pounds)
Application	red brick, granite, concrete, marble, rebar

Features

Adjustable cutting depth & wedth: Cutting groove depth and width of wall chaser can be randomly controlled. Max. cutting depth is up to 45mm (1.8″), max. cutting width 72mm (2.8″).
Easy to hold: Weight 7 kg, the handle can be rotated 90°. It can also work much effort without any assistants to increase the efficiency of work.
Safety: The slotting machine can serve for a long life with high power 5200W 220V 50Hz double copper motors. The devices of water pump and waterproof baffles work at the same time to reduce the dust during work to take into account your health.
Multifunction use: Widely applied and adapt to different materials, such as red brick, granite, concrete, marble, rebar. Ideal for construction workers.

Notes: User should take dustproof glasses, mask and built-in vacuum port and water pump at the same time to reduce the dust during work.

Size

Details

Tips: Using wall chaser grooving machine attentions

1. Check the safety of the power supply before use, bad socket and power line will cause poor contact and it will cause electric shock, fire and other accidents in serious cases.
2. During the grooving operation, the wall chaser should be kept straight and pulled back at a constant speed so as to maximize the cutting efficiency.
3. The operator should wear insulated gloves and insulated shoes when using water cutting operations so as to avoid electric shock accidents.
4. The wall chaser is a high-power cutting tool and has heavy load during working process, thereby, user should check the firmness and reliability of the connecting parts before using it.
5. When the wall groove cutting machine is performing the grooving and cutting work of the conversion angle, the protection cover should be opened and special attention should be paid to the flying sands. Otherwise, it may cause body injury in serious cases.
