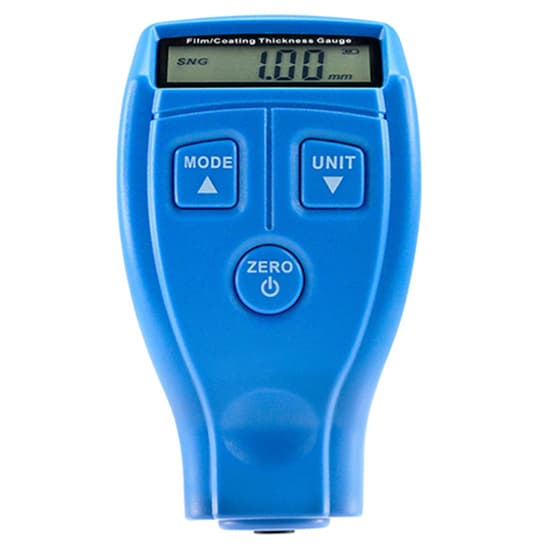

Name: 0-1800μm Coating Thickness Gauge
Brand: Tool
SKU: 1563
Availability: InStock

0-1800μm Coating Thickness Gauge

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

40 People watching this product now!

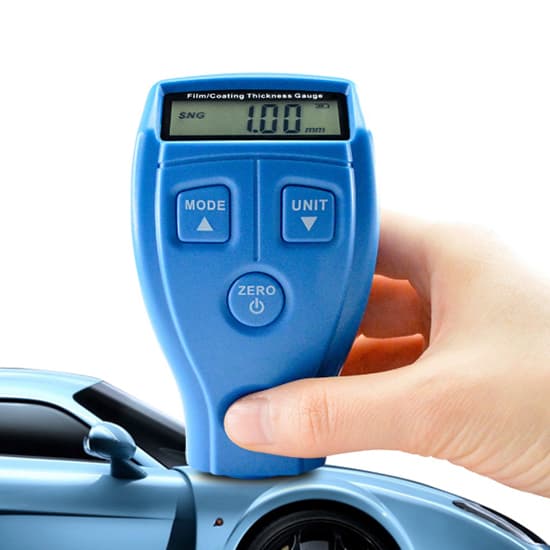

Buy paint thickness tester at wholesale price. 0-1800μm measuring range, ±0.1mm measurement error. It can make three measurement in three ways: Single measurement, continuous measurement, different value measurement.

Specification

Model	T-GM200A
Measuring Range	0-1800μm
Car Mode Resolution	0.05mm/ 2mil
User Mode Resolution	0.01mm/ 1mil
Measurement Error	±0.1mm
Minimum Diameter Of Substrate	50mm
Minimum Thickness Of Substrate	0.5mm
Temperature Range	18-30℃
Working Humidity Range	10-80%RH

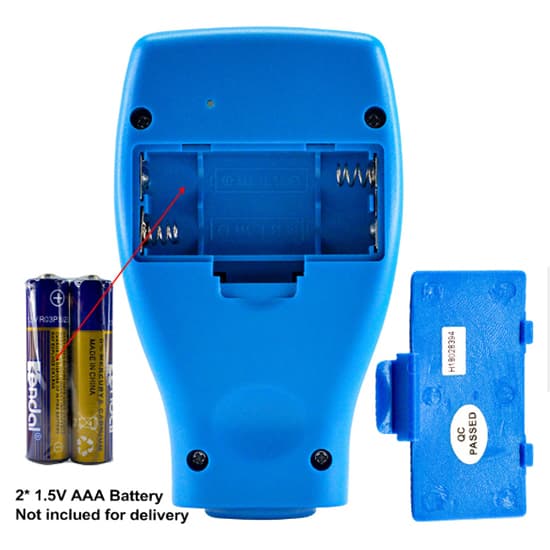

Power Supply	2*1.5V AAA Batteries
Dimension	1053162mm
Package Weight	0.2kg

Details

Tips: Magnetic induction measurement principle of coating thickness gauge

The thickness of the coating is measured by the magnitude of the magnetic flux flowing from the probe through the non-ferromagnetic coating into the ferromagnetic substrate. The size of the corresponding magnetoresistance can also be measured to indicate the thickness of the coating. The thicker the coating, the greater the magnetic resistance and the smaller the magnetic flux. The paint thickness gauge based on the principle of magnetic induction can in principle measure the thickness of the non-magnetic coating on the magnetic substrate. Generally, the permeability of the substrate is required to be above 500. If the cladding material is also magnetic, the difference between the permeability and the base material is required to be large enough (such as nickel plating on steel). When the probe with the coil on the soft core is placed on the sample to be tested, the coating thickness gauge automatically outputs the test current or test signal. Early dry film thickness gauges used pointer gauges to measure the magnitude of the induced electromotive force. The paint depth gauge amplified the signal to indicate the thickness of the coating. In recent years, circuit design has introduced new technologies such as frequency stabilization, phase lock, and temperature compensation, and used magnetoresistance to modulate the measurement signal. It also uses a patented integrated circuit and introduces a microcomputer to greatly improve the measurement accuracy and reproducibility (almost an order of magnitude). Modern magnetic induction coating thickness gauges have a resolution of 0.1 micron, an allowable error of 1%, and a range of 10mm. Magnetic induction measuring principle Coating thickness gauge can be used to accurately measure the paint layer of steel surface, porcelain, enamel protective layer, plastic, rubber coating, including nickel chromium and other non-ferrous metal coating, as well as various chemical and petroleum industry anticorrosive coating.
