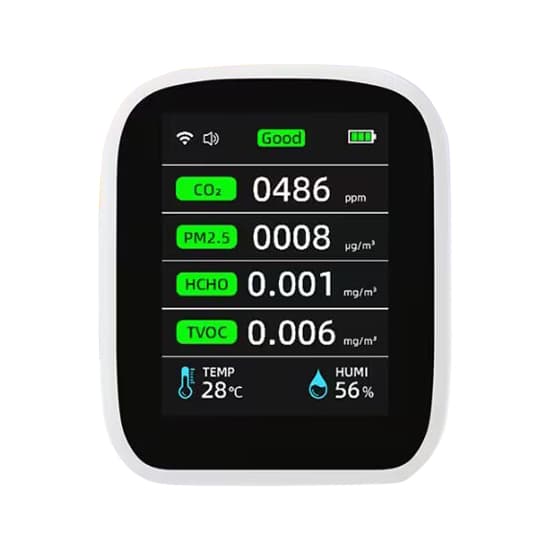

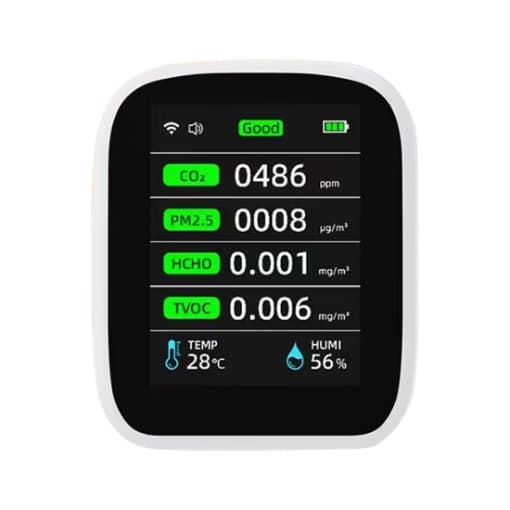

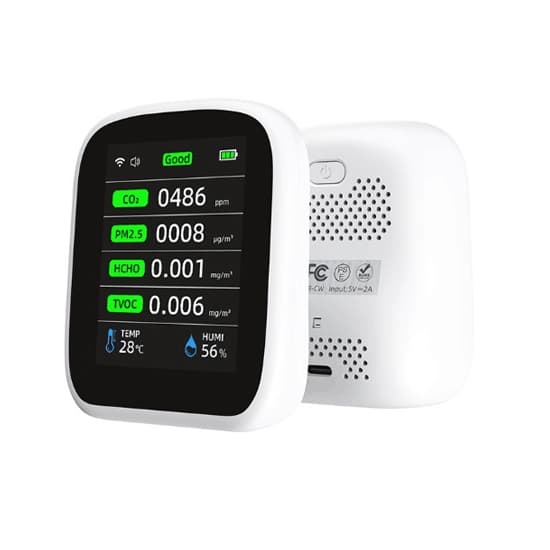

The 8-in-1 air quality tester, equipped with a smart connector, detects CO2, HCHO, TVOC, PM2.5, PM1.0, PM10, temperature, and humidity. Cloud links are continuously tracked with intelligent analysis, refreshing the display in real-time. With built-in Wi-Fi, you can use the mobile app to check data anytime and receive timely reminders to purify the air for your family.

Specification

Model	T-AQM-PV28CW
CO2 Detection Range	400 ~ 5000 PPM
CO2 Detection Accuracy	±(50 PPM + 5% * reading value)
PM1.0, 2.5, 10 Detection Range	0 ~ 1000 µg/m³
PM1.0, 2.5, 10 Detection Accuracy	±10 µg/m³ (0 ~ 100 µg/m³)
PM1.0, 2.5, 10 Detection Accuracy	±10% (100 ~ 500 µg/m³)
HCHO Detection Range	0 ~ 1.999 mg/m³
TVOC Detection Range	0 ~ 9.999 mg/m³
Temperature Detection Range	0 ~ 50℃
Temperature Detection Accuracy	±1℃
Humidity Detection Range	0% ~ 99% RH
Humidity Detection Accuracy	±5% RH
Product Size	70 x 84 x 35 mm
Power Supply	USB Type-C 5V⎓2A
Battery	350 mAh

Feature

High performance chip: Capture the weak current generated during the electrochemical reaction. Calculate measurement results accurately. Increased service life, improved output efficiency, effective promotion and transformation.
Cloud links are always tracked: Intelligent analysis refresh display built-in WIFI, using mobile APP can query data at any time to remind the family to purify the air.
Self-developed sensor: Using the self-developed NDIR sensor and laser particle sensor at the same time, the independent CO2 NDIR sensor has higher accuracy and stronger anti-interference than the semiconductor sensor.
Automatic brightness adjustment: According to the surrounding brightness, automatically adjust the screen display brightness so that the screen is visible and not dazzling.
Energy saving: When no one is in use, the screen can be automatically turned off to reduce energy consumption. When the screen is turned off, the air quality tester can still transmit data to the cloud through WIFI to view real-time values through the APP.

Structure and Dimensions

Application

Tips: Is the monitor suitable for both indoor and outdoor use?

While this monitor is primarily designed for indoor use, it can be used in semi-outdoor environments such as covered patios or garages. For fully outdoor use, make sure the device is protected from direct exposure to harsh weather conditions.
