65 People watching this product now!

1-1/2 inch air operated double diaphragm pump has a great many usages, such as such as pumping a variety of toxic, flammable, volatile liquid, acids, alkalis, corrosive liquids, paint, rubber and paint binders. The pneumatic dual diaphragm pump can transport high temperature media up to 150 ℃. It is also a useful air tool for cleaning sediment contaminants in shaft, tunnels and sewers.

Features

Air operated double diaphragm pump adopts pilot operated type air valve to eliminate the air tool downtime and extend its service life. All the parts can be replaced when the liquid chamber is not opened.
Designed with multiport, the pneumatic dual diaphragm pump can be installed easily.
It structures with non-porous embedded diaphragm to improve the usage rate of diaphragm and make it more compact.
Air powered diaphragm pump can be used as a movable-type material transfer pump because it has such advantages as small in size, easy moving, no need base, small occupied area and easy installation.
AODD pump can be externally connected to electromagnetic valve for remote control. And the reversing valve requires no lubrication.

Specification

Model	T-AODD-40
Max. Flow	40 GPM (151 LPM)
Max. Working Pressure	120 PSI (0.84 Mpa)
Fluid Inlet Size	1-1/2 inch (DN40) NPT
Fluid Outlet Size	1-1/2 inch (DN40) NPT
Air Inlet Size	1/2 inch NPT
Max. Suction Height (Dry Suction)	18 ft. (4.5m)
Max. Permitted Grain	1/8 in. (3.2mm)
Max. Air Consumption	23.66 SCFM
Every Stroke Flow	0.15 gal. (0.15L)
Max. Reciprocating Speed	276 cpm

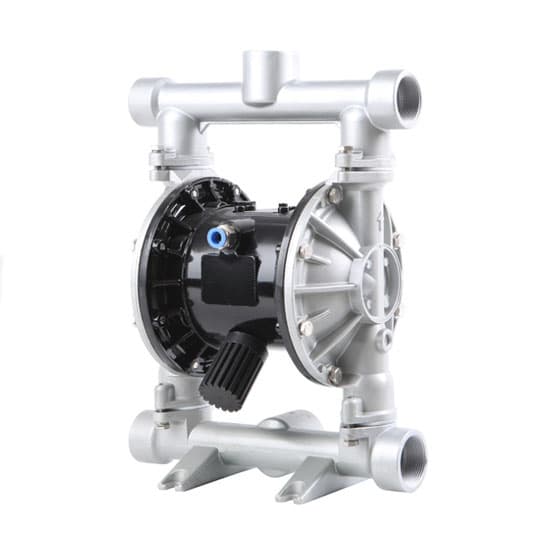

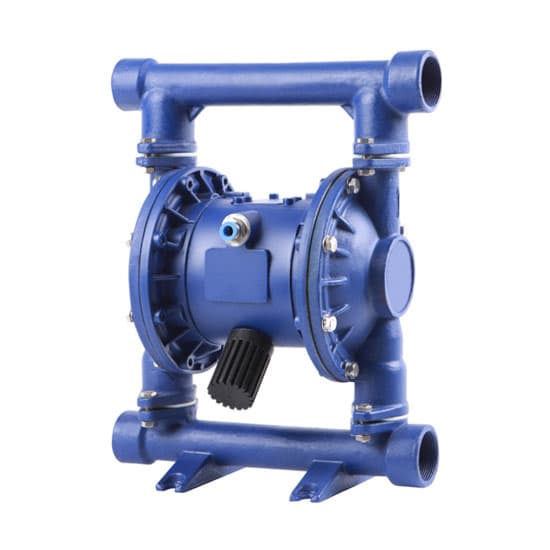

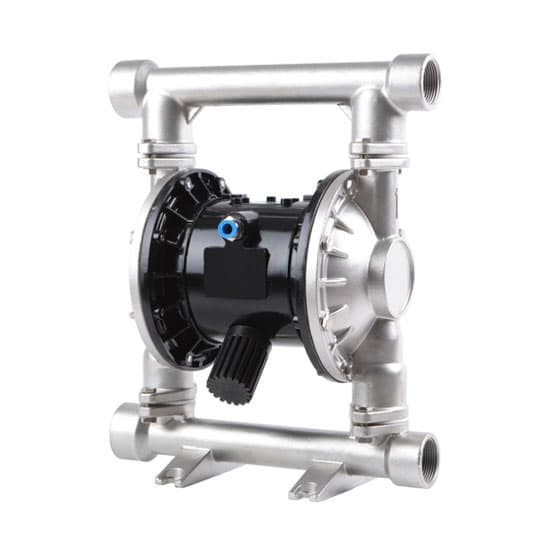

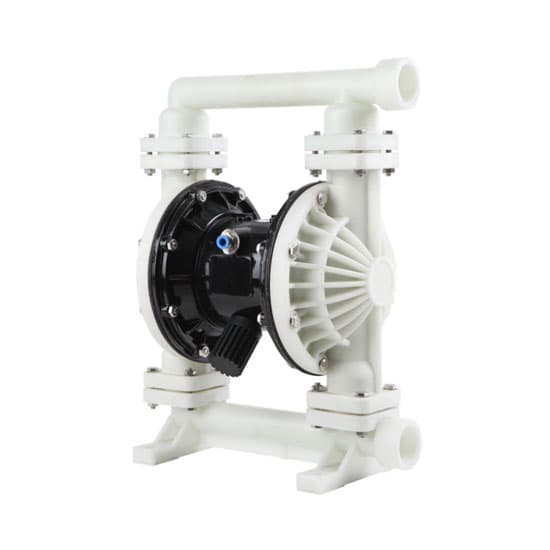

Body Structure Material Option	Cast Steel/Aluminum Alloy/Stainless Steel/Non-Metallic (Plastic)

Details

1. Discharge outlet (top cover)
2. Plug
3. Air valve cover gasket
4. Large slider aluminum piece
5. Piston
6. V-Ring
7. Small slider
8. Auxiliary shaft O-ring
9. Auxiliary shaft cover
10. Sliding plate
11. Sliding plate gasket
12. Air valve chamber
13. Plug
14. Sealing ball
15. Sealing seat
16. Air valve chamber cover
17. Auxiliary shaft

18. Large slider O-ring
19. Large slider plastic ring
20. Colum
21. Pitman shaft
22. Pitman shaft sleeve
23. V-Ring
24. Piston sleeve
25. Clamp screw
26. Clamp O-ring
27. Outer clamp
28. PTFE diaphragm
29. Poly rubber diaphragm
30. Inner clamp
31. Baffle
32. Air valve chamber gasket
33. Muffler
34. Feed inlet (bottom cover)

Diagram of Air Consumption

Diagram of Fluid Flow

Dimension Drawing

Units: mm

Applications
