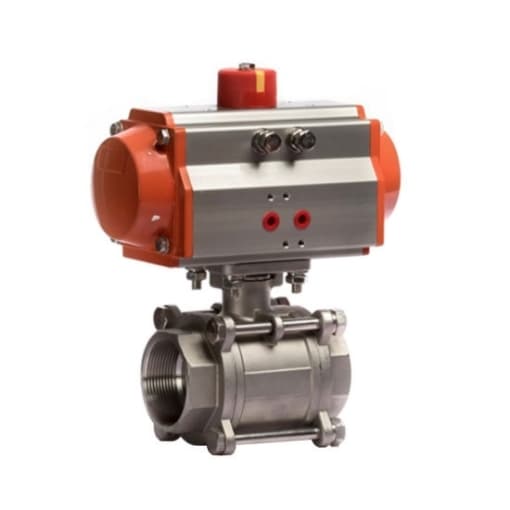

Name: 1-1/2" Pneumatic Actuated Ball Valve, 2 Way, Stainless Steel
Brand: Tool
SKU: 1253
Availability: InStock

1-1/2″ Pneumatic Actuated Ball Valve, 2 Way, Stainless Steel

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

66 People watching this product now!

Note: This ball valve cannot be used for drinking water.

1-1/2 inch two way full port ball valve with pneumatic actuator for sale online, requires compressed air to work. The seat material is made from PTFE that has good sealing performance. Compact air actuated pneumatic ball valve has such advantages as small fluid resistance, simple structure, small in size and light in weight. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air fluid service.

Features

Wear resistance. The valve spool of our pneumatic actuated ball valve is made from alloy steel with spray welding, so it will not wear out when you use it.
Good sealing performance. it has reliable sealing performance due to the seal of the air actuated ball valve is artificial grinding, it can’t be used until the spool and seal ring completely match.
Light Switch. The bottom of the pneumatic ball valve uses the spring to allow the seal ring and the valve spool hold together tightly, so it will not make much noise when you open or close it.
Widely application. It has been widely used in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.

Specification

Ball Valve	Model	T-Q611F-16P-DN40
	Ball Valve Type	2 Way Threaded Type
	Port Size	1-1/2 inch (DN40, 40mm)
	Environment Temperature	-10℃ to 60℃
	Medium Temperature	-10℃ to 180℃
	Medium Pressure	1.6MPa
	Seat Material	Plastic (PTFE)
	Body Material	Stainless Steel (SS 304)
Pneumatic Actuator	Model	T-AT063D
	Bore Size	63mm
	Air Supply Port	1/4 inch
	Power Source	Compressed Air
	Actuator Type	Double Acting
	Air Pressure	0.3 ~ 0.8MPa
	Actuator Body Material	Aluminum Alloy

Pneumatic Actuator Dimension

Q: Φ36/Φ50mm
A: 167mm
B: 82mm
C: 35mm
D: 47mm
E: 113mm
F: 85mm
G: 30mm
H: 80mm
I: PF
J: M6
K: 1/4″
O: 20mm
P: 40.5mm
S: 4mm
T: 4mm
U: 12mm
V: 24mm
W: 16mm
X: 32mm

Body Dimension

Tips: How to Maintain Stainless Steel Pneumatic Ball Valve

Stainless steel pneumatic ball valve is as known as pneumatic quick cut off ball valve because its switch speed is very fast. In daily use, it is better to maintain the pneumatic ball valve.

Before use, check whether the fixing screws of all connecting parts are fastened.
Check whether the solenoid valve works normally and there is no leakage phenomenon.
Check whether the positioner works normally and there is air leakage.
Observe whether there is air leakage in pneumatic actuator, especially at the connection of the valve stem and the two end covers.
Try to avoid too much floating ash covering the actuator and keep the working environment clean.
Check whether the air source treatment device, the filter, pressure reducing valve and oil mist device are normal, and observe whether the pressure is between 0.3 and 0.8MPa.
