Name: 1/2" Electric Wood Router, 3 HP, 10A
Brand: Tool
SKU: 259
Availability: InStock

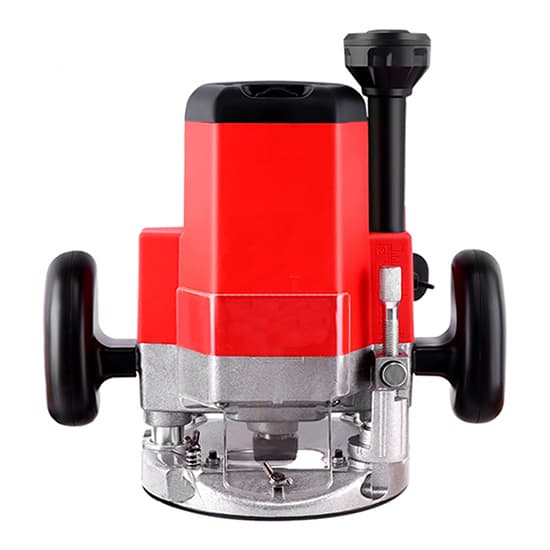

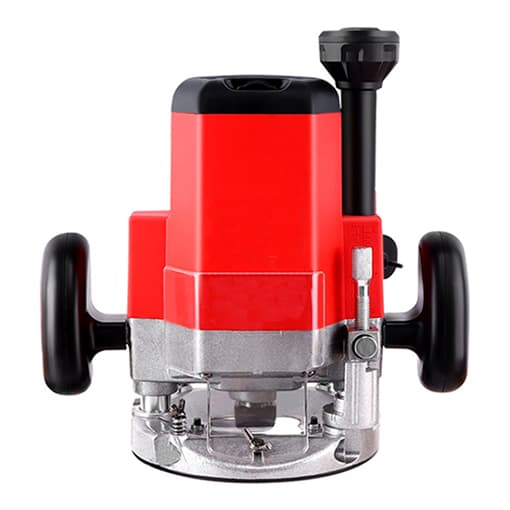

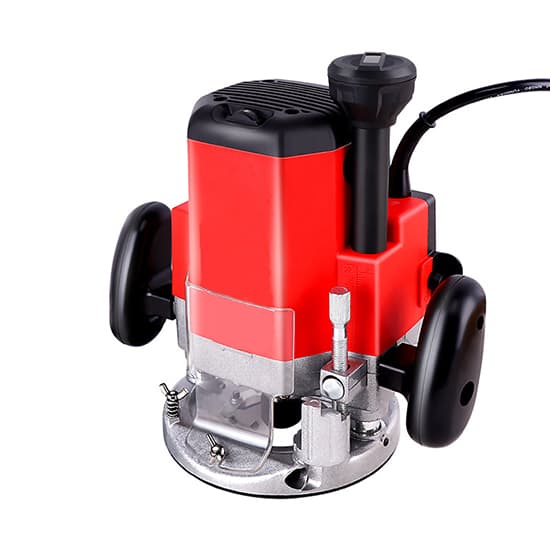

1/2″ Electric Wood Router, 3 HP, 10A

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

68 People watching this product now!

Electric wood router is a multifunctional power tool has functions of electric router and edge trimmer. Milling, trimming, engraving, grooving and precision cutting for woodworking.

Specification

Model	T-DKJ-01
Rated Voltage	220V/50Hz
Rated Power	3.0 HP (2,200W)	2.4 HP (1,800W)	2.0 HP (1,500W)
Rated Current	10A	8.2A	6.8A
Chuck Diameter	1/2 inch (12.7mm)
Rotation Speed	6-level variable speed 9,000-22,000 rpm
Accessories	linear guide ruler1, profiling guide ruler1, guide ruler accessory1, collet2, wrench1, carbon brush2
Weight	5.5 kg	6 kg	6.5 kg

Features

The electric wood router has depth adjustment design. With precise scale, improve the accuracy of processing depth.
4 positioning systems effectively control the base lifting. Depth limit block, depth lock switch, depth fine adjustment, depth limit step.
The electric wood router has Double lock. 2 installation methods: linear guide rail and profiling guide wheel.

Electric Wood Router Structure Diagram

Electric Wood Router Details Diagram

Electric Wood Router Applications

Electric Wood Router Installation

Install the backing.
Insert it into the hole of bottom plate.
Put in the milling cutter bit.
Hold down the self-locking button and tighten the nut.

Tips: Precautions for using electric wood router.

Keep the milling cutter of electric wood router sharp. User must use special tools for electric wood router, the tools beyond specifications must not be used.
To install milling cutter, just push the milling cutter handle into elastic chuck and tighten the hexagonal nut. Loosen the hex nut to remove milling cutter.
The workpiece to be processed must be securely fixed with fixtures or other tools.
Dust hood must be fastened and reliable. Dust hood cannot be removed in any operating state.
Before starting electric wood router, check whether milling cutter is back on the base.
The locking knob is used to adjust the up and down lifting of electric wood router. Pay attention to keeping your body balance during operation and avoid starting electric trim router unconsciously.
