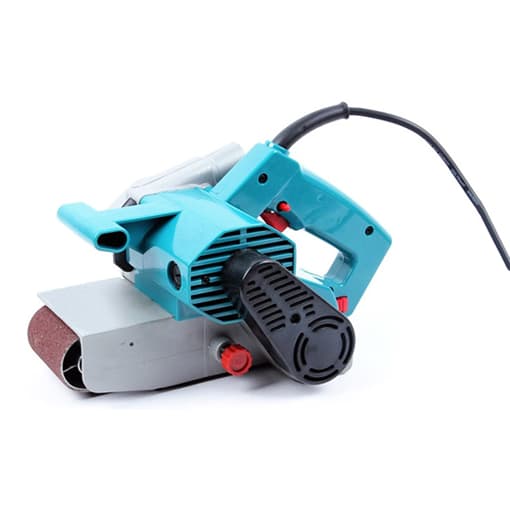

Name: 4Amp 3 x 21 Inch Variable Speed Belt Sander
Brand: Tool
SKU: 15
Availability: InStock

4Amp 3 x 21 Inch Variable Speed Belt Sander

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

25 People watching this product now!

It is an electric corded belt sander with 3 x 21 inch sanding belt, variable speed and dust collection design. Small size and lightweight for portable use. Functions are sanding/polishing wooden product, metal, furniture, paint product, etc. in industrial, commercial or homemade DIY use.

Specification

Model	T-EBS-BS75
Sanding Belt Size	3 x 21 inch (76 x 533mm)
Rated Power	950W
Rated Voltage	220V
Rated Current	4A
Belt Speed	360-450m/min
Reversal Mount Function	no
Default Attachment	carbon brush2, dust collection bag1
Optional Attachment	sanding belts*5/20/50
Weight	4.6kg

3 x 21 Inch Belt Sander Structure Diagram

3 x 21 Inch Belt Sander Attachment Configuration

Sanding Belt Installation


1. Find the button on belt sander that for sanding belt replacement.	2. Turn on the sanding belt replacement button and take out abrasive belt.	3. Put the new sanding belt into belt sander, and close the button after adjustment.

Tips: Troubleshooting for variable speed belt sander.

Fault	Variable speed belt sander has strong vibration and loud noise.
Causes	Bearing of the variable speed belt sander is worn. The driving wheel has poor dynamic leveling performance. The fixing screws are loose. Backing plate of the abrasive belt is too high.
Solutions	Replace worn bearings accordingly for the variable speed belt sander. Replace the transmission wheel with good dynamic leveling performance. Check and fix the loose screws. Adjust to reduce the contact degree of the sanding belt pad.
Fault	Sanding belt deviation.
Causes	Drive wheel of the variable speed belt sander has a large deviation in centrality. The outer circle of transmission wheel is severely worn. Poor quality of sanding belt. Sanding belt tension is not enough.
Solutions	Adjust the centrality of transmission wheel. Replace or repair worn-out transmission wheels. Replace the qualified abrasive belt. Appropriately increase the belt tension.
