Name: 1/3" Electric Wood Router, 1-1/5 HP, 4A
Brand: Tool
SKU: 261
Availability: InStock

1/3″ Electric Wood Router, 1-1/5 HP, 4A

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

71 People watching this product now!

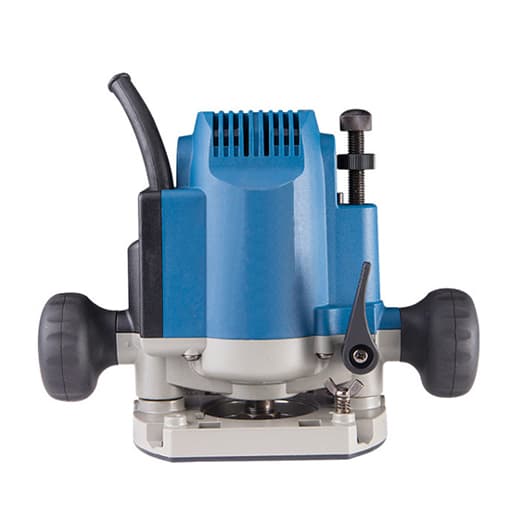

The electric wood router integrates functions of trimmer and carving machine, small size, simple operation and portable. It is the best wood router tool for woodworking in industrial/commercial/home/DIY applications.

Specification

Model	T-M1R-FF-8
Rated Voltage	220V/50Hz
Rated Power	1-1/5 hp (900W)
Rated Current	4.1A
Mill Cutter Diameter	1/3 inch (8mm)
No-Load Speed	26,000 rpm
Accessories	wrench2, linear guide1, template guide1, trimming guide seat1
Weight	2.9 kg

Features

Anti-overload performance of the electric wood router is excellent.
Both inside of the electric wood router and body shell are insulated to prevent electric shock accidents caused by improper operation.
Electric wood router has self-locking switch design, safe and labor-saving, high work efficiency.

Electric Wood Router Structure Diagram

Electric Wood Router Details Diagram

Tips: How to use electric wood router for grooving and milling?

Insert milling cutter into the chuck of electric wood router.
Tighten the collet nut with a wrench to hold the milling cutter in place.
Set the initial machining depth. Place electric wood router on a flat surface and release the lock lever. Press down electric router until drill bit touches the surface, and then tighten the lock lever.
Set cutting depth. Set depth limiter to the depth to be cut. Then release the lock lever again until electric wood router can be lifted.
Start electric wood router and make it run at full speed. Then hold down the two handles and lower milling cutter to make contact with wood.
Cutting depth and wood hardness determine the cutting speed.
