Sale
4 x 36 Inch Belt and 8 Inch Disc Sander
Price range: $65.99 through $89.07
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
29
People watching this product now!
Description

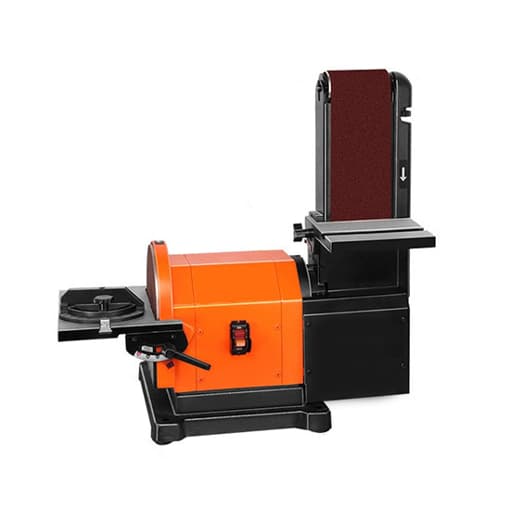

The electric bench sander is a combination of belt sander and disc sander, which has multifunction and small size, can be used on the table or floor. Applicable materials are metal, wood, aluminum, plastic, etc.
Specification
| Model | T-EBS-4368 |
| Motor Power | 1-1/5 hp (900W) |
| Rated Voltage | 220V, 50Hz |
| Rated Current | 4.1A |
| Sanding Belt Size | 4 x 36 (100 x 914mm) |
| Sanding Disc Diameter | 8 inch (200mm) |
| No-Load Speed | 2,850 rpm |
| Workbench Tilt Angle | 0~45° |
| Weight | 23kg |
| Attachment | sanding belt*1, sanding disc*1, dust exhaust outlet*1, dust bag*1 |
Belt and Disc Sander Functions
Wood sanding on the workbench vertical to the sanding disc |
Sanding the cutting surface of aluminum materials |
PVC plastic polishing |
Belt and Disc Sander Structure Diagram
Belt and Disc Sander Dimensions
Sanding Belt Installation for Belt & Disc Sander Arm
| 1. Loosen the screws on the transparent shield and remove the shield. | 2. Loosen the three screws on the cover plate and remove the cover plate. |
| 3. As shown in the figure, press here forward to remove the sanding belt. | 4. Replace a new sanding belt and adjust it in place, then the belt sander can be used. |
Sandpaper Installation for Belt & Disc Sander Sanding Disc
| 1. Loosen the screws on the transparent shield and remove the shield. | 2. Remove the old sandpaper and paste the new sandpaper. |
Additional information
| Sanding Belt Specification * | , , , |
|---|---|
| Number of Sanding Belts * | , , , , |
| Sanding Disc Specification * | , , , |
| Number of Sanding Discs * | , , , , |
