Name: 1/4-in Drive 2-24Nm Torque Wrench Set for Bikes
Brand: Tool
SKU: 469
Availability: InStock

1/4-in Drive 2-24Nm Torque Wrench Set for Bikes

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

19 People watching this product now!

Features

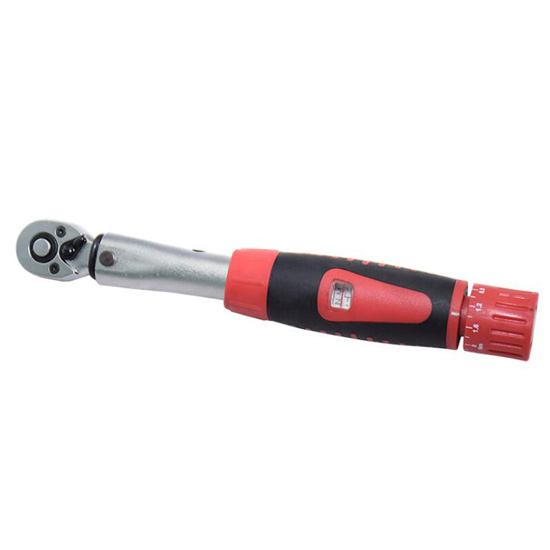

Precision torque wrench set for sale, 1/4-inch square drive head, +/- 4% accuracy.
Torque range from 2N.m – 24N.m with 0.2N.m increments.
Made from superior steel alloy with comfortable TPR handle, the torque wrench features light, compact and durable.

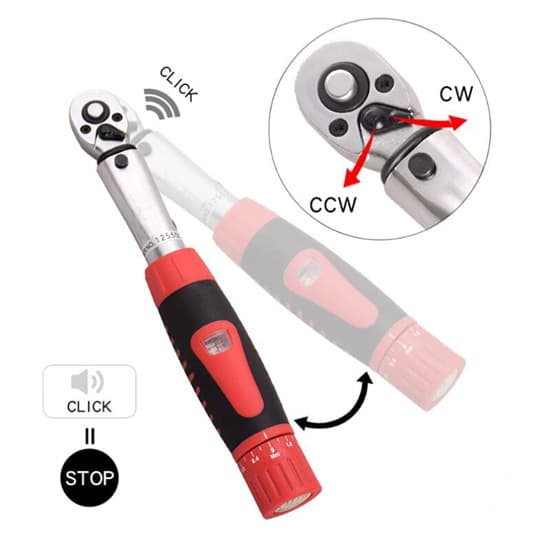

Click-type torque wrench will sound a click when preset value is reached, simple and reliable to operate.

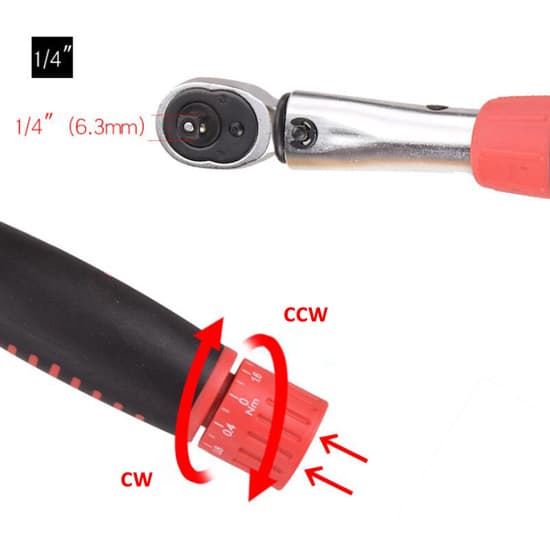

Reversible torque wrench drives in both CW and CCW directions, making it easy to use in resitricted spaces.
Torque wrench set comes with 11 pieces or 15 pieces, ideal hand tool kit for bicycles, motorcycle and so on.

Specification

Model	T-CSC-24S (11pcs)	T-CSC-24S (15pcs)
Torque Range	2-24Nm
Torque Increments	0.2Nm
Square Drive Size	1/4 inch
Accuracy	±4%
Material	CR-V, S2 etc.
Size	2558560mm
Weight	0.75kg	0.8kg
Package Included (See below Fig.)	11 Pieces: ① 2-24Nm torque wrench * 1 ② Hex bits (L=25mm): 3mm, 4mm, 5mm, 6mm, 8mm, 10mm Torx bits (L=25mm): T20, T25, T30 ③ Long hex bit (L=75mm): 5mm	15 Pieces: ① 2-24Nm torque wrench * 1 ② 100mm Extention bar * 1 ③ Hex bits (L=25mm): 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm Torx bits (L=25mm): T25, T30 Phillips bit (L=25mm): PH2 ④ Adapter 1/4″ square to 1/4″ hex ⑤ Adapter 1/4″ square to 3/8″ square

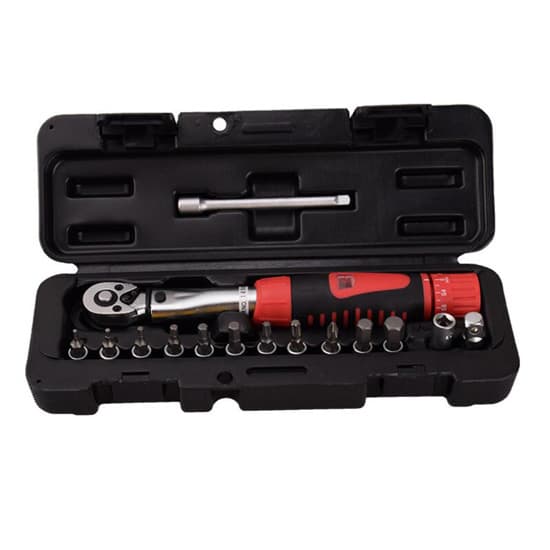

Package Included

11 Pieces Torque Wrench Set

15 Pieces Torque Wrench Set

Tips: Notes for use of torque wrenches

1. Torque wrenches are precision mechanical instruments. Take much care in operation. Do not apply the force suddenly to cause the internal mechanism failure.

2. Do not use the torque wrench as a hammer. Handle it lightly and do not throw it.

3. It cannot be disassembled at will. After replacing the components, it shall be sent to the calibration group for calibration to confirm whether its functions meet the requirements.

4. Do not work beyond the range, and stop applying force when the set point is reached and the clicking sound is heard.

5. Do not use foreign matter to block, glue, fix torque adjusting sleeve or handle.

6. Torque should be adjusted according to PIE or IPQC instructions when in use. The operator should confirm the torque value before it can be used.

7. The one-way torque wrenches should not be used in both directions, and the torque meter cannot be used to loosen nuts

8. Before using the torque instrument, confirm whether the torque value is suitable and whether the torque unit is correct.
