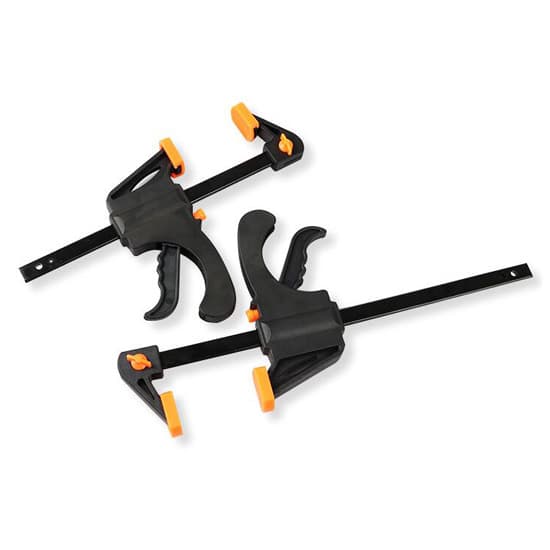

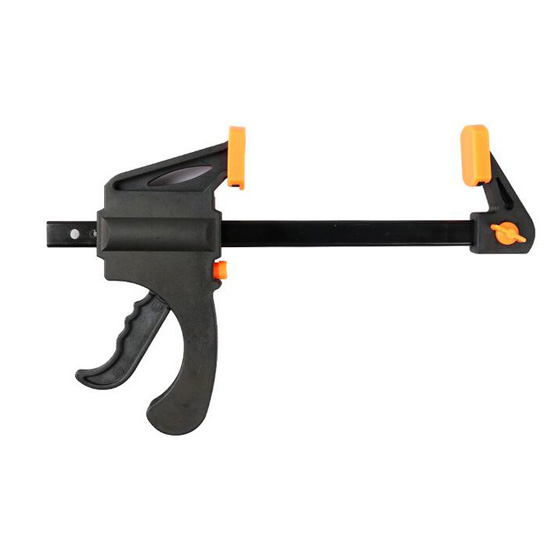

Quick grip & release ratchet bar clamps for sale, come with various sizes 4 inch, 6 inch, 8 inch, 10 inch, 12 inch, 18 inch, 24 inch and 30 inch to meet you different clamping requirements in woodworking or DIY projects. These one-handed clamps with trigger and quick-release button allow it to freely slide jaw to any position, quick grip and release, high efficiency and simple operation. The clamp spreader can also work as both clamp and spreader. With PP plastic pads, it help prevent the surface damage when firmly gripping.

Specification

Model	T-CLAMP-8007	T-CLAMP-8010	T-CLAMP-8011	T-CLAMP-8012	T-CLAMP-8013	T-CLAMP-8014	T-CLAMP-8015	T-CLAMP-8016
Overall Length	195mm	328mm	375mm	428mm	482mm	625mm	780mm	925mm
Overall Width	105mm	210mm	210mm	210mm	210mm	210mm	210mm	210mm
Throat Depth	45mm	87mm	87mm	87mm	87mm	87mm	87mm	87mm
Clamping Capacity	103mm (4″)	150mm (6″)	200mm (8″)	253mm (10″)	312mm (12″)	450mm (18″)	597mm (24″)	750mm (30″)
Weight	72g	484g	530g	554g	575g	698g	806g	913g
Rail Material	Forged steel

Note: The sizes are approximate.

Dimension Drawing

Clamp Details

How to Convert a Bar Clamp to a Spreader?

Tips: Quick release bar clamp for woodworking

In the woodworking, some processes have to clamp and loosen the clamped wood very frequently. The ordinary bar clamp particularly affect work efficiency because the clamping and releasing operations are very slow. For these processes, it is best to use a woodworking quick release bar clamp.

This kind of quick release bar clamp adopts the material of aluminum alloy and steel. The aluminum alloy part can reduce the overall weight of the clamp, so that the operation will not be particularly tired. The handle adopts a quick-release ratchet structure to ensure fast clamping, and the maximum clamping force can be achieved with only a small force, greatly saving manpower and time.
The unique quick release button, just press this button to release the pressure quickly, and you don’t need to use any force. The clamping force is immediately disappeared.

At the same time, the quick release bar clamp is also equipped with a large and wide rubber pad to ensure that the clamping force is more uniform. The rubber material of the pad can also protect the object from being scratched.
