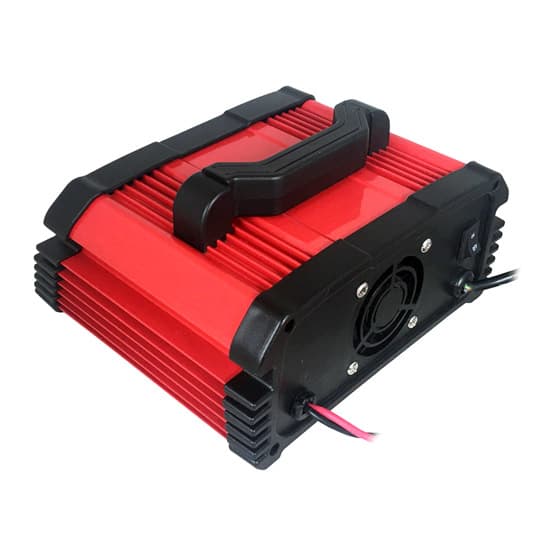

Portable 10 amp battery charger with foldable handle on the top, adopts 4-step charging processes of constant current mode, constant voltage mode, floating charge mode and full charging stop mode.

Specification:

Model	T-DC-100
Shipping weight	2kg
Size (LWH)	195145115mm

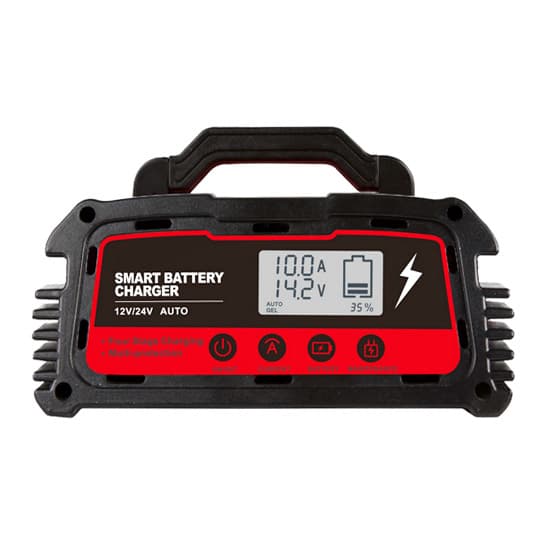

Display	LCD display with backlight shows battery current/ voltage/ level, battery type and recognition mode.
Applicable battery	12VDC/24VDC lead-acid batteries, including AGM, GEL, sealed lead acid battery, dry-charged battery, maintenance-free battery. Note: Lithium battery is forbidden.
Input voltage	AC 110V~220V ± 20V
Input frequency	50Hz/60Hz
Output voltage	DC 14.8V/29.6V ± 0.3V
Output current	6A-8A-10A (12V), 6A (24V) Note: Current can be manually selected or automatically charged at the default current value.
Peak power	230W

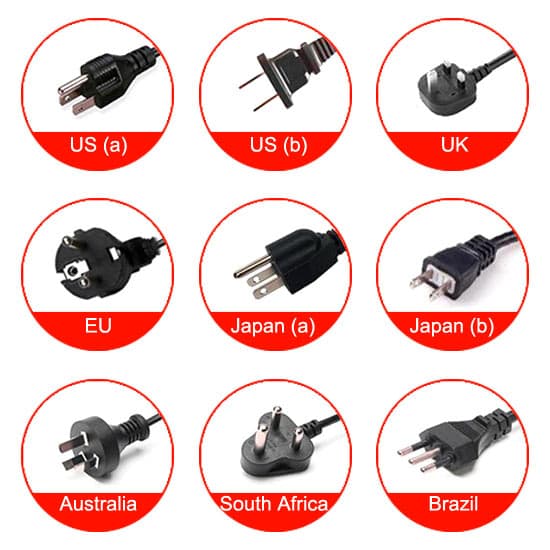

Types of power plug *	US, EU, UK, Germany, Australia, Japan, South Africa, Brazil, or other customized plugs.
Input cable length	133cm
Output cable length	75cm
Transformer coil material	Pure copper
Shell material	Aluminum alloy
Charging function	Constant current mode, constant voltage mode, floating charge mode and full charging stop mode
Protection function	Overcharge protection, low voltage protection, overvoltage protection, reverse connection protection, short circuit protection, high-temperature protection.
Maintainer function	Apply for the batteries idled for a long time, batteries with poor starting ability and old batteries. Note: It can’t repair short-circuit batteries and open-circuit batteries. It also can’t repair a battery back to 100% new.
Certification	CE, RoHS, FCC

Charging time table:
There are 3 optional charging currents for choosing: 6A/8A/10A.

Battery capacity	Charging time
Battery capacity	6A	8A	10A
20Ah	3h~5h	2h~3h	1h~2h
36Ah	6h~8h	4h~5h	2h~3h
60Ah	8h~10h	6h~7h	3h~4h
80Ah	12h~15h	8h~9h	4h~5h
100Ah	18h~20h	10h~11h	6h~8h
160Ah	≥22h	13h~15h	8h~12h
200Ah	≥22h	≥18h	≥14h

Note: The above data is the actual reference charging time for battery under the normal state. For the vulcanized battery with large internal resistance, the charging time is not as the reference standard.

Tips: Battery charging/maintaining operation steps

Connect the positive and negative poles correctly and turn on the power key (the first button on the left).
The data on the LCD screen flashes, indicating that it is in the standby state.
Select the required current according to the battery capacity (the second button on the left).
Select the battery type, there are two types of AGM and GEL to choose (the third button on the left).
Press and hold the first button on the right for about 8 seconds, a snowflake sign will appear, and it will enter the battery repair mode.

Except AGM/GEL batteries, other batteries can be charged directly by pressing the power key.
