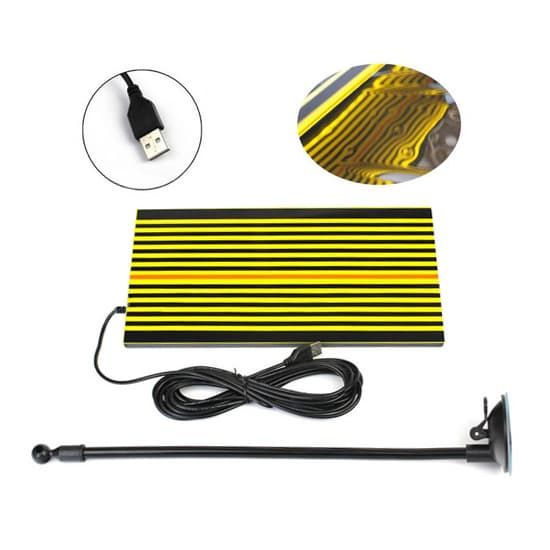

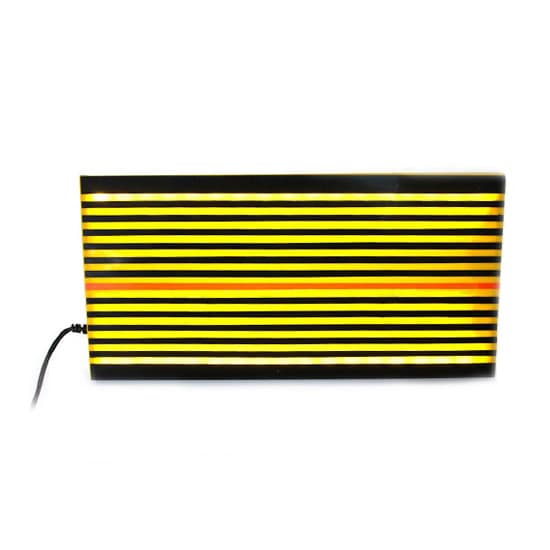

PDR (Paintless Dent Repair) light adopts LED lights and yellow stripes to form projection on the car body. Its function is to let repairer observe the dents more clearly and intuitively, and check the dynamics of the dent during the repair process.

Specification:

Model	T-PDR-LY1
Weight	450g
Type of light	LED light
Stripe color	Yellow
Light board size (L*W)	28*15cm
Input voltage	DC 5V (via USB connection)
USB cable length	1.5m
Bracket length	40cm
Suction cup diameter	7cm
Bracket rotation angle	360°
Packing size (LWH)	34239cm
Packing included	1 * PDR light 1 * bracket

Tips: Operation steps of paintless dent repair light

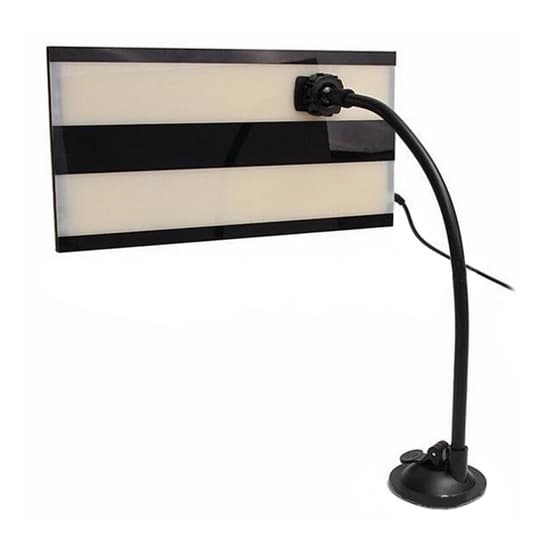

Place a PDR light near the dents part of the car. Since the base of the PDR light is a suction cup, it can be placed anywhere on the surface of the car. In order to prevent damage to the surface coating of the car, the bottom of the bracket is also a soft rubber pad.
After determining the position, press the switch down to draw vacuum to ensure that it is fixed. Turn on the power switch of the light and bend the bracket to adjust the illumination angle of the light, so that the straight line on the light board is projected on the damaged area and the surrounding surface.
By observing the projected lines on the damaged area and its surrounding surface, it can be clearly seen that the projected lines in the undamaged area are uniform straight or curved lines, but in the dent area, they are vortex-like or irregular projection lines. At this time, you can use the dent puller or PDR induction heater to repair this part of the dent.
When the irregular projected lines return to uniform straight or curve, the repair work is complete.
