12.3 inch rear view mirror dash cam is special designed for truck/bus or special vehicles, such as excavator, cash truck, fire fighting truck, etc.

Specification:

Model	T-T123
Gross weight	1kg
Box size	500300150mm
Display	12.3 inch a-Si TFT-LCD display
Display size	122295.525.5mm
Display mode	8:3
Resolution	1920*720P (Max)
Brightness	850cd/m²
Visual angle	85°/85°/85°/85°
Input resolution	1920*1080 (Max)
Input format	AHD, CVBS
Frame rate	25/30fps (Max: 60fps)
Number of input channels	2
Supporting SD card	Maximum 128G
Working voltage	8~36VDC
Power dissipation	14.4W (not included LCD and cameras)
Output voltage/current	DC 12V/3A (for cameras)
Operating mode	Keys operation and remote control
Menu function	Mirroring: horizontal, vertical, horizontal and vertical, primary Brightness, saturation, contrast adjustment
Supporting language	English
Color	Black
Applicable vehicle	Bus, truck, excavator
Installation position	Vehicle A-pillar inside
Working temperature	-30~+85℃ (-22~+185℉)
Storage temperature	-40~+90℃ (-22~+194℉)
Relative humidity	＜90%
Certification	CE, FCC, RoHS
Warranty	12 months
Packing included	1 * 12.3″ rear view mirror dash cam 2 * cameras 1 * remote control 1 * remote receiver 2 * extension cables for cameras 1 * wire harness 1 * bracket 1 * user manual 1 * color box

Tips: Advantages of rear view mirror dash cam for truck

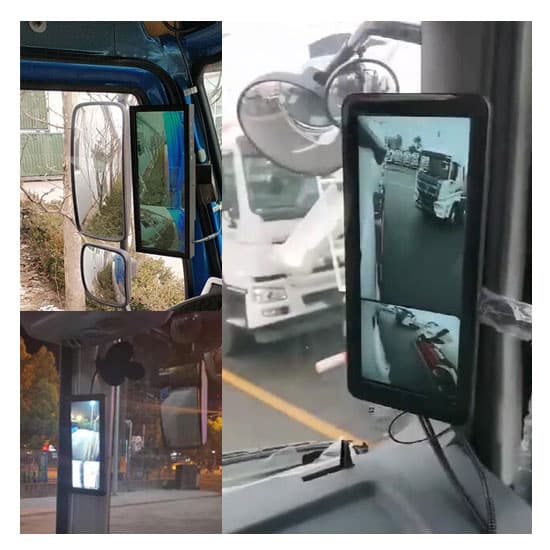

Rear view mirror dash cam replaces traditional rearview mirrors with LCD screen. The electronic cameras are installed on the side of the truck, and the collected images are transmitted to the vertical display screen installed at the A-pillar position on the inside of the truck through the cables.
The huge body of the traditional rearview mirror has a great influence on the drag coefficient. The shape of the rear view mirror dash cam can reduce the drag coefficient.
Due to the small size of the camera, it can be installed at any position, and the final image synthesized on the display eliminates the problem of blind spots in the rear view.
The rear view mirror dash cam is equipped with image digital correction technology to automatically adjust the brightness of the environment to render the best image effect. Because the mirror dash cam is installed inside the vehicle, there is no need to worry about water drops outside the window glass affecting the rear view effect. Whether in a relatively harsh driving environment such as rain or night, rear view mirror dash cam can give the driver a better driving experience.
