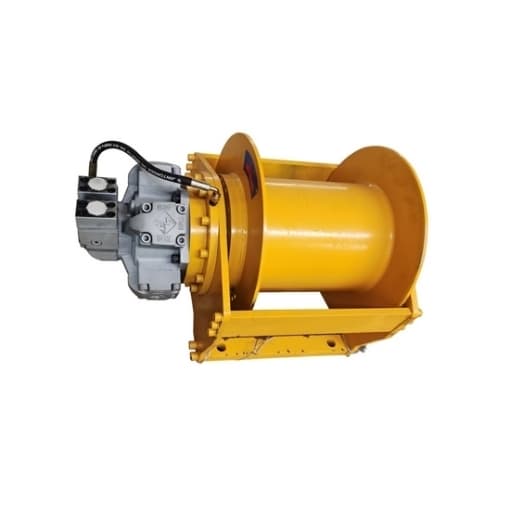

Name: 12000 lbs Hydraulic Winch for Tractor/Truck/Skid Steer
Brand: Tool
SKU: 255
Availability: InStock

12000 lbs Hydraulic Winch for Tractor/Truck/Skid Steer

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

44 People watching this product now!

A hydraulic winch is a mechanical device powered by hydraulics, designed for heavy-duty lifting and pulling. It includes a hydraulic motor, a drum or spool, and a control valve system for precise operation.

Specification

Model		T-HW80-60
The 1st Layer	Pull	12000 lbs (6 ton)
	Rope Speed	0~30 m/min
Working Pressure Differential		16 Mpa
Oil Flow Supply		120 L/min
Rope Diameter		18mm
Hydraulic Motor		BMR-250
Planetary Reduction Ratio		1:22

Layer		Wire Rope Capacity
1		22m
2		46m
3		72m
4		100m
5		130m

Note: Never exceed working load limit.

Dimensions (Unit: mm)

Tips: Hydraulic Winch for Trucks

Check Compatibility: Confirm the winch matches your truck’s specifications and load capacity.
Secure Mounting: Ensure proper mounting to prevent movement during operation.
Regular Maintenance: Inspect hydraulic lines, motor, and drum to avoid malfunctions.
Control Valve Calibration: Adjust for smooth and precise control, especially with heavy loads.
Choose the Right Rope: Use a rope that matches the winch’s capacity and intended tasks.
Prioritize Safety: Wear protective gear and keep a safe distance from the tensioned line.
Manage Rope Speed: Adjust rope speed as needed for safe and efficient load handling.
