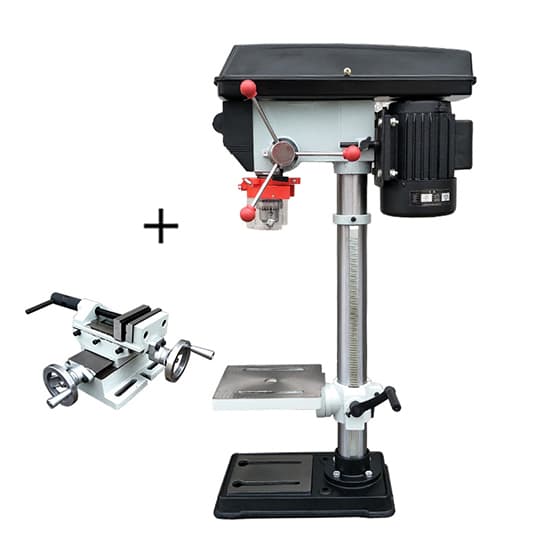

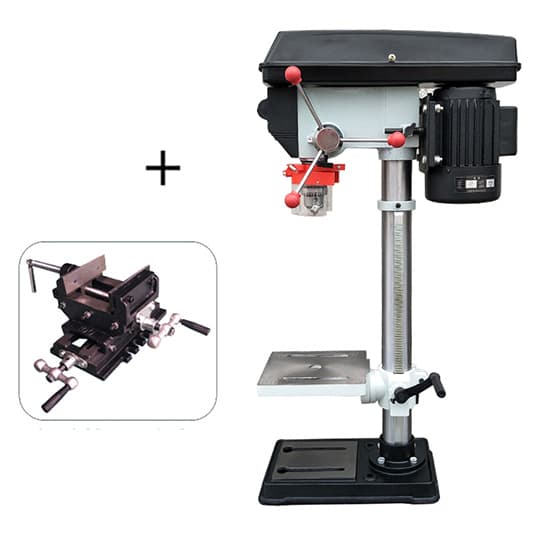

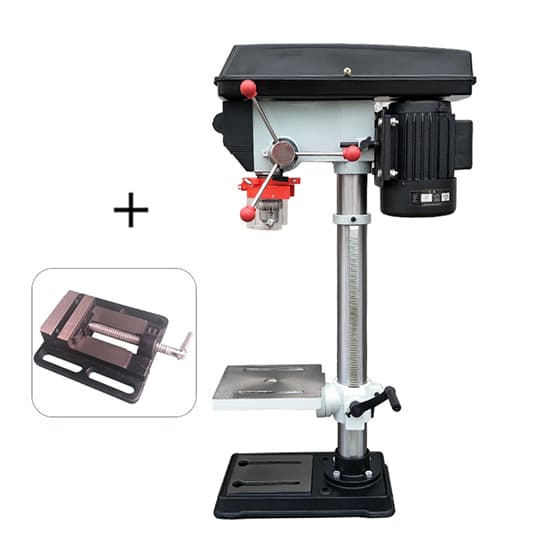

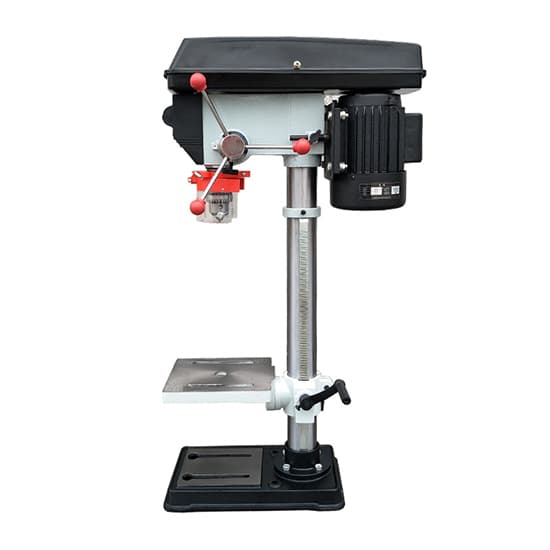

Name: 5-Speed Bench Drill Press, 16mm, 550W
Brand: Tool
SKU: 9
Availability: InStock

5-Speed Bench Drill Press, 16mm, 550W

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

10 People watching this product now!

Bench drill press is a small drilling machine with 16mm drilling capacity. 5-level speed for adjustment and control. The drill machine is suitable for industrial/commercial/home use.

Specification

Model	T-BDM-ZJQ4116a
A	Drilling Diameter	16mm
	Motor Power	550W
	Rated Voltage	220V 50Hz
	Drill Chuck	3-16mm
	Main Shaft Trip	50mm
B	Speed Level	5 levels
	Spindle Speed	620-2620rpm
	Spindle to Beat	≤0.03mm
	Chuck Beat	≤0.15mm
C	Spindle Taper	B16
D	Axis to Column Surface	129mm
E	Output Shaft to Workbench Surface	387mm
F	Output Shaft Bottom Seat Surface	546mm
	Table Size	196*198mm
	The Base Size	205*340mm
G	Column Diameter	58mm
G	Machine Height	840mm
H	Weight	28kg
H	Packing Size	700440280mm

Features

The bench drill press is suitable for a wide range of working environments, with multiple functions such as turning beads, drilling, milling machines, and DIY. Suitable for industrial/commercial use.
Adjustment dial with precise scale, has precise adjustment and spindle limit function, easy, fast and accurately to process workpiece.
Motor adjustment handle can adjust the motor to move back and forth and quickly shift gears.

Structure Diagram of 16mm Bench Drill Press

Dimension Drawing of 16mm Bench Drill Press

Tips: Adjustment operation before using bench drill press.

Adjustment for bench drill press spindle speed. According to different diameter of drill bit and processing material, select appropriate speed. Stop the spindle before adjustment. Open the cover, turn the pulley by hand, and hang the V-belt on small pulley, and then hang it on large pulley until V-belt is hung on appropriate pulley.
Adjustment for up, down, left and right positions of the drill press workbench. First hold worktable with left hand, then release the locking handle with right hand, and swing worktable to move it down or up to the desired position, and finally lock the locking handle.
Adjustment for spindle feed position. The feed of spindle is achieved by turning the feed handle. Before drilling, raise and lower the spindle to check whether the height of worktable is appropriate. In addition, for the bench drill press with a round worktable, it can be rotated around its cylindrical machine body.
