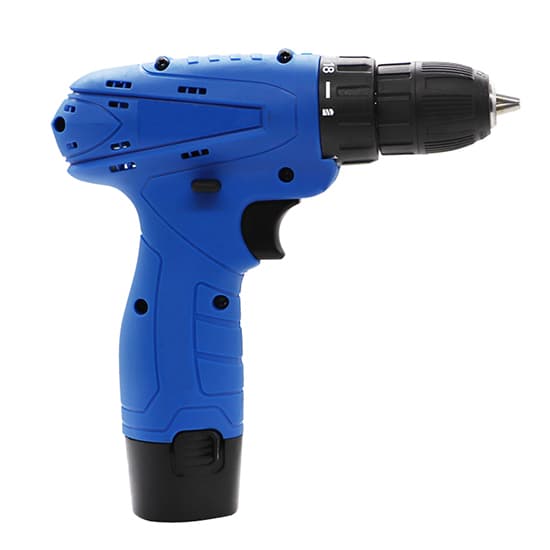

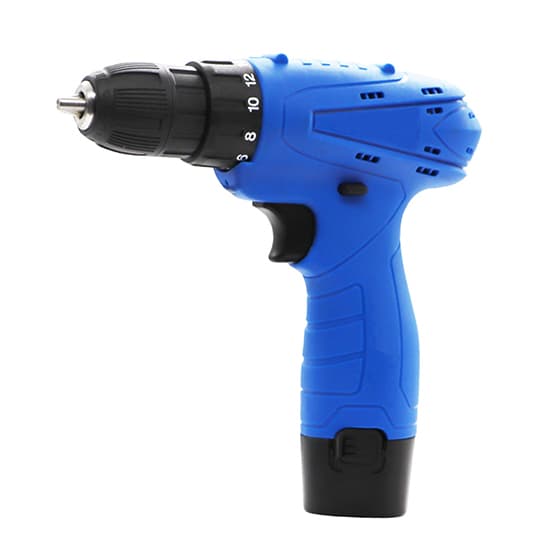

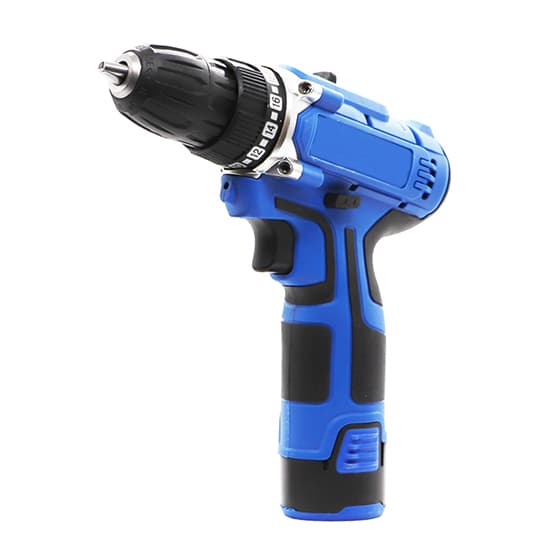

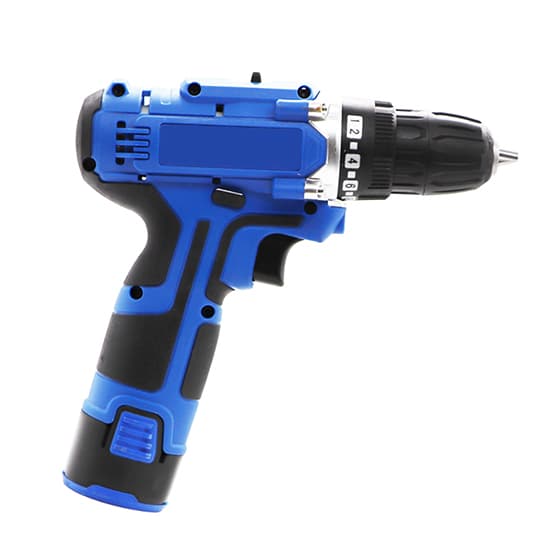

12V Cordless Drill, 18mm/20mm
Price range: $20.99 through $53.30
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
Cordless drill is a portable electric drill powered by 12V battery. It can drill φ10mm on steel, 18-20mm on wood. Variable speed and adjustable torque.
Specification
| Model | DT-DL-0911D | T-DL-0712 |
| Battery | 12V/1.5Ah | 12V/1.3Ah |
| No-Load Speed | 0-350 rpm/0-1350 rpm | 0-600 rpm |
| Max. Torque | 30Nm | 26 Nm |
| Torque Settings | 18+1 | 18+1 |
| Chuck Range | 0.8-10mm | 0.8-10mm |
| Wood Drill Capacity | 20mm | 18mm |
| Steel Drill Capacity | 10mm | 10mm |
| Charging Time | 1 hour | 2 hours |
| Weight | 1 kg | 1kg |
Features
- Small cordless drill with compact structure and lightweight, easy for handheld operation.
- Cordless drill Hasee variable speed to meet different working demands, including wood/steel/ceramic tile drilling or screwing.
- Replaceable drill bits, adjustable torque, high performance lithium battery.
20mm Cordless Drill Details Diagram
18mm Cordless Drill Details Diagram
Drill Bit Installation for Cordless Drill
- Unscrew the chuck counterclockwise.
- Insert drill bit and tighten the chuck clockwise.
Tips: What is a cordless drill?
Cordless drill is a hand drill that with a lithium-ion battery or a nickel-chromium battery, it can be recharged repeatedly. Cordless drill does not need external power source when in use, and there is no restriction of cables. Therefore, it is very suitable for use in the field or where there is no power supply. Cordless drill is used for drilling various metals and woods, and also for screwing in and out of screws, wood screws, self-tapping screws, etc.
After the DC motor rotates and is decelerated by deceleration mechanism, it drives drill chuck to rotate, thereby driving the bit or drill bit to work. Pulling the forward and reverse switch levers can adjust DC power supply polarity to change the forward or reverse rotation of motor. It can achieve disassembly and assembly operations.
| Drilling Capacity * | , |
|---|---|
| Configuration * | , |
