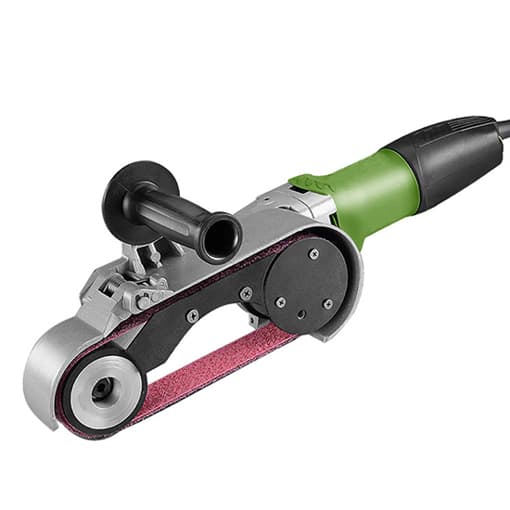

Name: 1.6 x 24" Handheld Pipe Belt Sander, 3.6A
Brand: Tool
SKU: 26
Availability: InStock

1.6 x 24″ Handheld Pipe Belt Sander, 3.6A

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

47 People watching this product now!

Multifunctional pipe belt sander for industrial/commercial/home use, small size and lightweight for handheld operation. Used in sanding, drawing, polishing and mirror effect treatment for round steel pipes, stainless steel pipes and other metal round pipes.

Specification

Model	T-EBS-3025
Rated Voltage	220V, 240V
Rated Power	800W
Rated Current	3.3/3.6A (240/220V AC) 7.3A (110V AC)
Belt Size	24 inch x 1.6 inch (620mm x 40mm)
Max. Sanding Diameter	7 inch (180mm)
No-Load Speed	700-3000 rpm
Belt Speed In Idle	3.1-11.6m/s
Accessories	1 carton brush, 1 nylon belt, 1 side handle
Weight	4.1 kg

Functions

The handheld pipe belt sander is specially used in the occasions that need uniform sanding, it can also polish drawing effect of various lines.
Round tube drawing, polishing treatment, manufacturing mirror effect.
Clear new and old welds, repair old railings, etc.

Structure Diagram of Pipe Belt Sander

Dimension Drawing of Pipe Belt Sander

Belt Replacement for Pipe Belt Sander

Hold the pipe belt sander with your right hand and push guide wheel inward with your left hand.
Keep the left hand with original state and press the button with the right hand.
Take out the belt and replace it.

Tips: Handheld pipe belt sander applications.

Bend pipe sanding. Pipe belt sander has a flexible belt, which is very suitable for the bend tubes at narrow position. The surface processed by belt sander is very smooth and shiny.
Weld grinding. Sanding belt has ideal cutting speed and can effectively sand the weld.
Grinding, burnishing, polishing. Pipe belt sander can also sand, burnish and polish installed railings.
