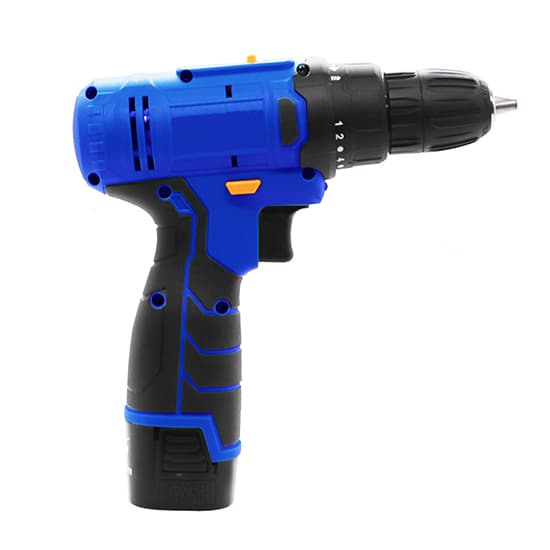

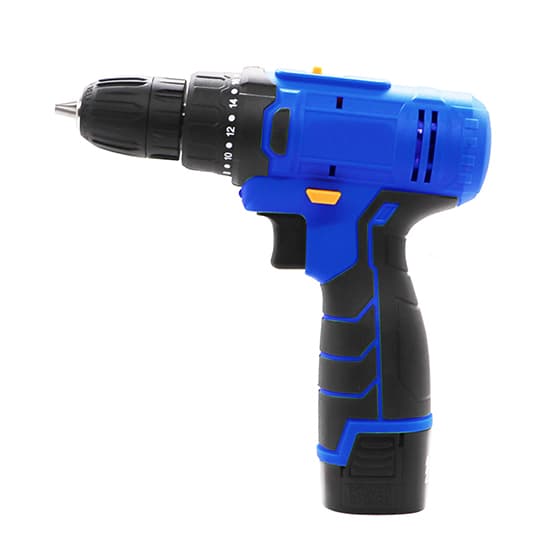

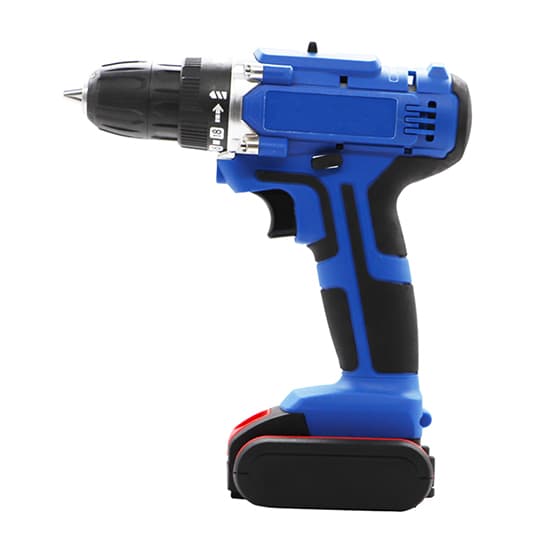

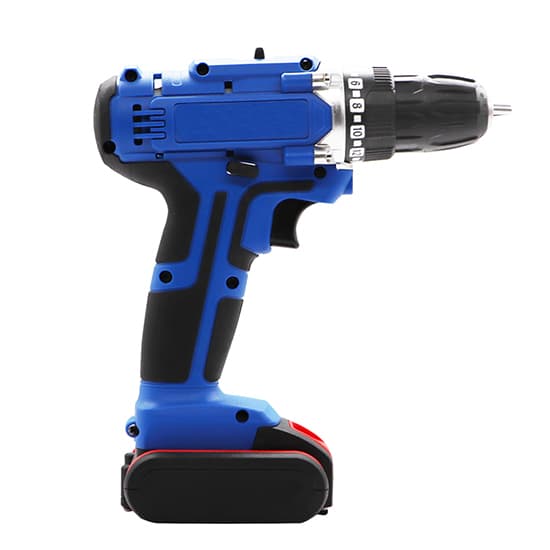

Low price cordless drill, driven by 14V or 16V lithium battery, drilling on steel or wood and other materials. Rechargeable drill, handheld operation, convenient for home use.
Specification
| Model | T-DL-0914D | T-DL-1316D |
| Battery | 14.4V/1.5Ah | 16.8V/1.5Ah |
| No-Load Speed | 0-350 rpm/0-1350 rpm | 0-350 rpm/0-1350 rpm |
| Max. Torque | 30Nm | 30 Nm |
| Torque Settings | 18+1 | 18+1 |
| Chuck Range | 0.8-10mm | 0.8-10mm |
| Wood Drill Capacity | 22mm | 20mm |
| Steel Drill Capacity | 10mm | 10mm |
| Charging Time | 1 hour | 1 hour |
| Weight | 1.1 kg | 1kg |
Features
- The cordless drill uses rechargeable lithium battery, 1-hour fast charger.
- Small cordless electric drill with lightweight, operate easily even for a woman.
- It is a powerful electric drill, suitable for drilling on wood, steel, ceramic tile, and tightening screws.
14.4V Cordless Drill Details Diagram
16.8V Cordless Drill Details Diagram
14.4V/16.8V Cordless Drill Functions
Drill Bit Installation for Cordless Drill
- Lock the chuck clockwise.
- Open the chuck counterclockwise.
Tips: Cordless drill battery usage.
1. Battery installation and disassembly.
Cordless drill battery disassembly: Hold the handle firmly, and then push the battery latch to remove battery.
Cordless drill battery installation: confirm the positive and negative poles before inserting the battery.
2. Charging.
Insert cordless drill battery into charger correctly, and it can be fully charged at 20℃ according to the time on product instruction. Note that the rechargeable battery has a temperature control switch inside. Battery will be powered off when it exceeds 45℃ and cannot be charged. It can continue to be charged after cooling.
