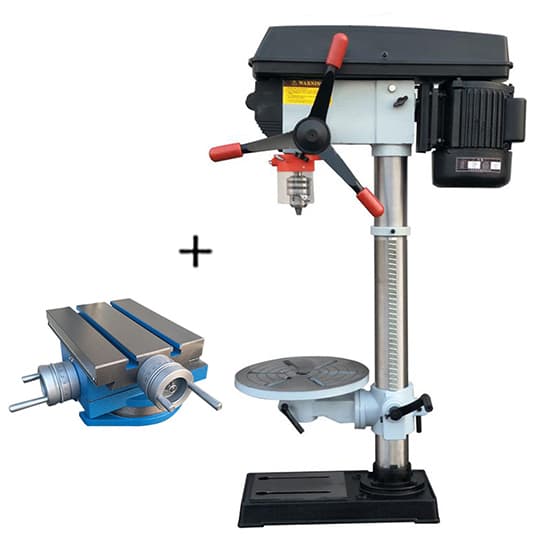

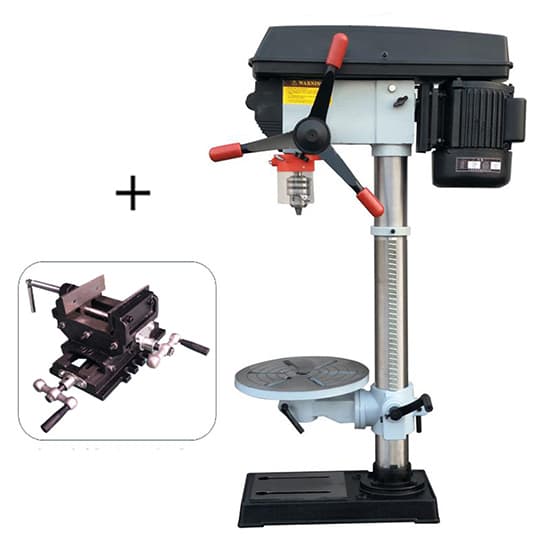

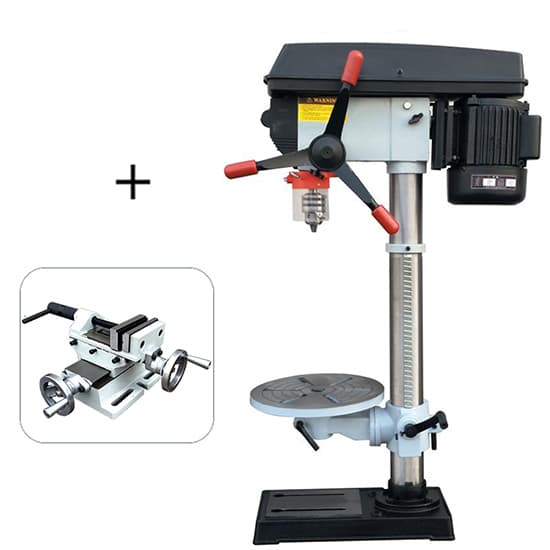

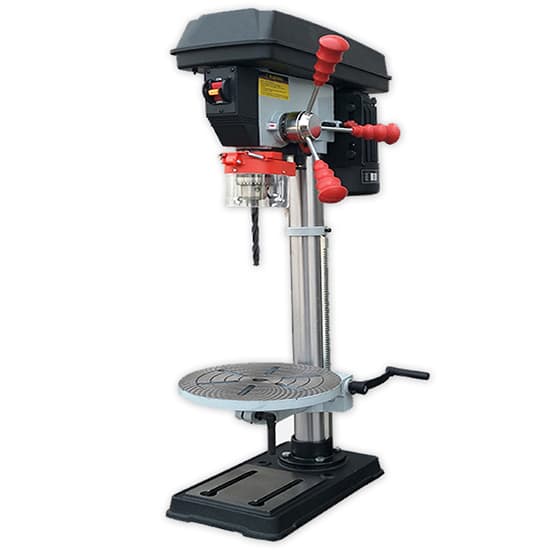

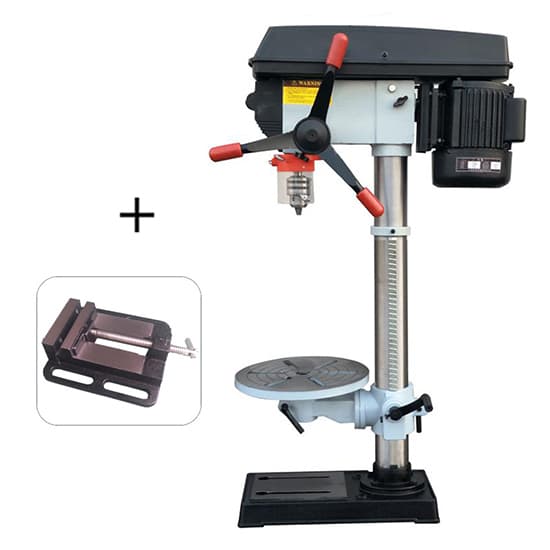

The bench drill press is a table-type drilling machine for channel steel, angle iron, iron block and stainless steel as well as wood. Laser positioning for precision drilling, 16-speed adjustment and high power.

Specification

Model	T-BDM-ZJ5116
A	Drilling Diameter	16mm
	Motor Power	1000W
	Rated Voltage	220V 50Hz
	Drill Chuck	3-16mm
	Main Shaft Trip	80mm
B	Speed Level	16 Levels
	Spindle Speed	300-2550rpm
	Spindle to Beat	≤0.03mm
	Chuck Beat	≤0.15mm
C	Spindle Taper	B22
D	Axis to Column Surface	176mm
E	Output Shaft to Workbench Surface	585mm
F	Output Shaft Bottom Seat Surface	1135mm
	Table Size	290*290mm
	The Base Size	448*265mm
G	Column Diameter	80mm
G	Machine Height	1600mm
H	Weight	66kg
H	Packing Size	1480680360mm

Features

Bench drill press is a small drill machine, stand design, easy to operate and maintain.
Double-lamp laser positioning drilling, high precision, improve work efficiency.
Multi-groove 360 ° rotating round bench can be rotated and fixed on the support arm, and install vise and machining parts.

Structure Diagram of 16mm Bench Drill Press

Dimension Drawing of 16mm Bench Drill Press

Tips: Precautions in use of bench drill press.

It is strictly forbidden to run the bench drill press in overload, and it is strictly forbidden to processing outside performance range of the drill press.
When loading and unloading the drill, stop the machine before operating. After cleaning the cone surface, drill bit can be installed, and it must be firmly installed. When disassembling the drill bit and drill chuck, use a special inclined iron and copper hammer to remove it.
Fix the workpiece in correct and proper position.
It is strictly forbidden to operate bench drill press with gloves.
When abnormal phenomenon occurs during drill press operation, stop it immediately to find out the cause and eliminate the fault.
