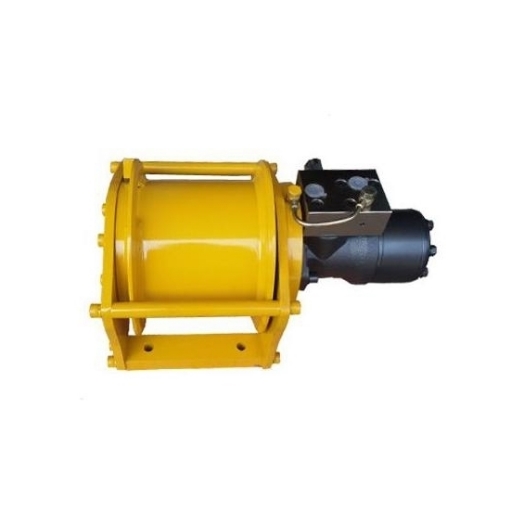

Name: 1600 lbs Hydraulic Winch for Tractor/Truck/Skid Steer
Brand: Tool
SKU: 247
Availability: InStock

1600 lbs Hydraulic Winch for Tractor/Truck/Skid Steer

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

55 People watching this product now!

Designed for efficient and powerful lifting or pulling, it operates using hydraulic power, making it perfect for heavy-duty tasks. Its versatility makes it suitable for various applications, including tractors, skid steers, rollback trucks, and excavators. Built to withstand demanding conditions, this winch is an ideal solution for professionals needing a durable and efficient lifting tool.

Specification

Model		T-HW05-08
The 1st Layer	Pull	1600 lbs (0.8 ton)
	Rope Speed	0~50 m/min
Working Pressure Differential		10 Mpa
Oil Flow Supply		56 L/min
Rope Diameter		8mm
Hydraulic Motor		BMR-100
Planetary Reduction Ratio		1:5.23

Layer		Wire Rope Capacity
1		10m
2		21m
3		33m
4		45m

Note: Never exceed working load limit.

Dimensions (Unit: mm)

Tips: Hydraulic winch application

Proper Sizing: Ensure the hydraulic winch’s capacity matches the weight of the load you intend to lift or pull. Overloading can damage the winch or cause accidents. Always check the winch’s maximum load capacity.
Hydraulic System Compatibility: Confirm that the winch is compatible with your equipment’s hydraulic system, such as tractors, trucks, or excavators. Proper hydraulic flow and pressure are critical for efficient operation.
Rope Selection and Maintenance: Use the correct rope size and material, and regularly inspect the rope for wear and tear. Replace damaged or frayed ropes promptly to avoid failures during operation.
Safe Operation: Always follow safety guidelines and ensure the working area is clear. Operators should be trained to handle the winch, and safety gear such as gloves and helmets should be worn.
Regular Maintenance: Perform routine maintenance, such as lubricating moving parts and checking for hydraulic fluid leaks, to extend the lifespan of the winch and ensure smooth performance.

By following these tips, you can ensure safe, efficient, and long-lasting use of your hydraulic winch in various heavy-duty applications.
