5/10/20A 12V & 5/10A 24V battery charger has 0V starting function, can be used for all the lead-acid batteries, such as AGM, GEL, sealed lead acid battery, dry-charged battery and maintenance-free battery, but not for lithium battery.

Specification:

Model	T-DC-200
Shipping weight	2.3kg
Size (LWH)	195185115mm

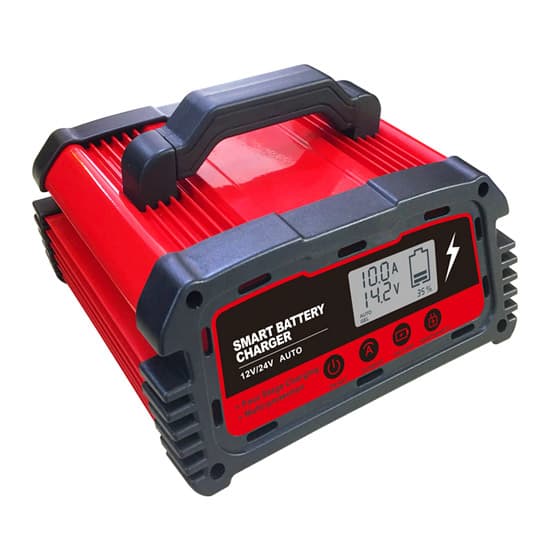

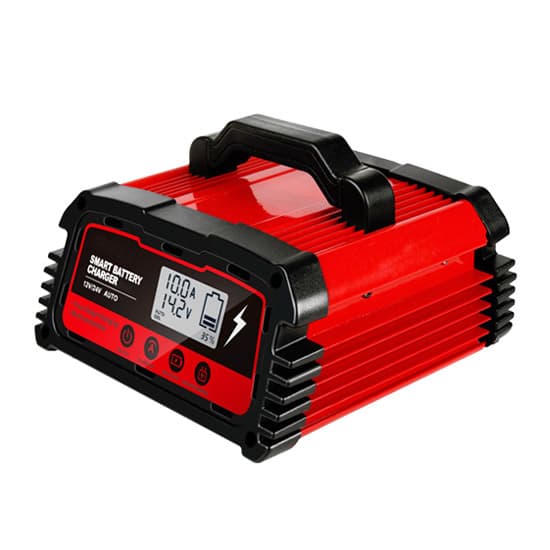

Display	LCD display with backlight shows battery current/ voltage/ level, battery type and recognition mode.
Applicable battery	12VDC/24VDC lead-acid batteries, including AGM, GEL, sealed lead acid battery, dry-charged battery, maintenance-free battery. Note: Lithium battery is forbidden.
Input voltage	AC 110V~220V ± 20V
Input frequency	50Hz/60Hz
Output voltage	DC 14.8V/29.6V ± 0.3V
Output current	5A-10A-20A (12V), 5A-10A (24V) Note: Current can be manually selected or automatically charged at the default current value.
Peak power	300W

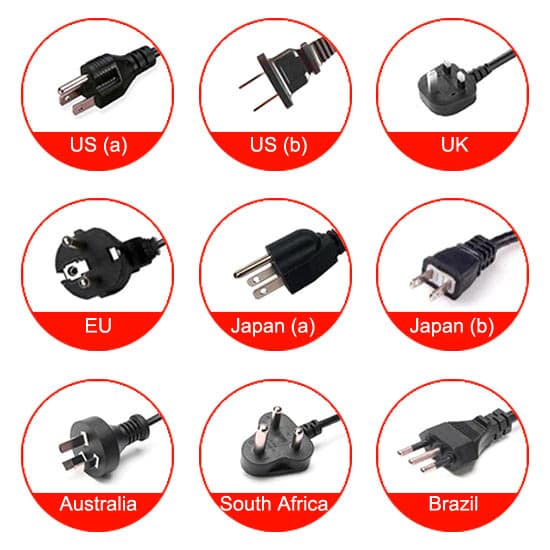

Types of power plug *	US, EU, UK, Germany, Australia, Japan, South Africa, Brazil, or other customized plugs.
Input cable length	133cm
Output cable length	75cm
Transformer coil material	Pure copper
Shell material	Aluminium alloy
Charging function	0V starting. Constant current mode, constant voltage mode, floating charge mode and full charging stop mode.
Protection function	Overcharge protection, low voltage protection, overvoltage protection, reverse connection protection, short circuit protection, high-temperature protection.
Maintainer function	Apply for the batteries idled for a long time, batteries with poor starting ability and old batteries. Note: It can’t repair short-circuit batteries and open-circuit batteries. It also can’t repair a battery back to 100% new.
Certification	CE, RoHS, FCC

Charging time table:
There are 3 optional charging currents for choosing: 5A/10A/20A.

Battery capacity	Charging time
Battery capacity	5A	10A	20A
20Ah	3h~5h	2h~3h	1h~2h
36Ah	6h~8h	4h~5h	2h~3h
60Ah	8h~10h	6h~7h	3h~4h
80Ah	12h~15h	8h~9h	4h~5h
100Ah	18h~20h	10h~11h	6h~8h
160Ah	≥22h	13h~15h	8h~12h
200Ah	≥22h	≥18h	≥14h

Note: The above data is the actual reference charging time for battery under the normal state. For the vulcanized battery with large internal resistance, the charging time is not as the reference standard.

Tips: Notices for battery charging

When charging the automotive battery, it’s best to remove the battery from the vehicle frame, and keep it away from heat and fire. Because it is easy to produce flammable and explosive gas during the battery charging process. If there is any careless operation, it is easy to cause an explosion occurred.
The battery level should be checked for the water battery, because supplementing the electricity can easily damage the water battery, when the battery liquid level is too low. In addition, the six covers of the water battery must be removed during the charging process, which is good to the exhaust of the battery.
