Name: 20L~60L 3000 rpm Laboratory Digital Overhead Stirrer
Brand: Tool
SKU: 97
Availability: InStock

20L~60L 3000 rpm Laboratory Digital Overhead Stirrer

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

34 People watching this product now!

Laboratory digital overhead stirrer is suitable for mixing and stirring liquids with low, medium and high viscosity. It is an electric laboratory mixer, widely used in scientific research institutions, chemistry and chemical engineering, food industry, universities, etc.

Specification

Model	T-OES-60SH	T-OES-60	T-OES-100SH	T-OES-100	T-OES-200SH	T-OES-200
Max. Stirring Volume	20L		40L		60L
Digital Display	LCD	–	LCD	–	LCD	–
Recommended Stirring Amount	5L		10L		15L
Speed	200-3000 rpm		200-3000 rpm		50-3000 rpm
Rated Power	60W		100W		200W
Maximum Viscosity	5000mPas		10000mPas		20000mPas
Timing Range	30s~999min	–	30s~999min	–	30s~999min	–
Rated Voltage	220V
Speed Control Accuracy	±3 rpm
Overall Size	200315600mm
Weight	9kg		10kg		10kg

Features

Laboratory digital overhead stirrer adopts DC permanent magnet motor, which is low noise and maintenance-free. Starts smoothly, effectively preventing the stirring material from overflowing.
Digital overhead stirrer has a backlit color LCD, which can display the speed and time in real time, and has 5 groups of speed memory functions.
The torque can be automatically adjusted according to the sample viscosity, and the set speed can be maintained.
The Laboratory digital overhead stirrer has a closed shell to prevent liquid from splashing into the machine and corroding the circuit, ensuring safe operation.
In the event of overload, short circuit and abnormal speed, the circuit will be automatically cut off and an alarm will be issued.

Laboratory Digital Overhead Stirrer Structure Diagram

Note: The beaker in the diagram is not included in packing list, it is only for display effect.

Laboratory Digital Overhead Stirrer Details

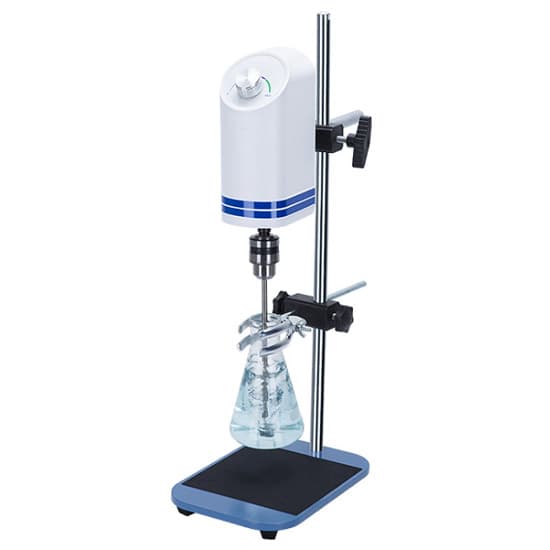

Digital color LCD display Real-time display of speed and time. 5 groups of speed memory function.	The overhead stirrer without digital display is controlled by the knob. 50-3000 rpm is adjustable, no timing and digital display, quick and simple operation.	Fixing clamp Prevent the laboratory overhead stirrer from shaking during operation.

Stirring paddle The stirring paddle is made of stainless steel. Standard configuration is a 2-blade stirring paddle.	Hand-tight chuck Manual tightening, good tightening effect, clamping range 0.5-10mm.	Metal base The metal base is equipped with anti-skid pad.
