Name: 23 Gauge Air Pin Nailer, 1/2" - 1"
Brand: Tool
SKU: 1171
Availability: InStock

23 Gauge Air Pin Nailer, 1/2″ – 1″

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

70 People watching this product now!

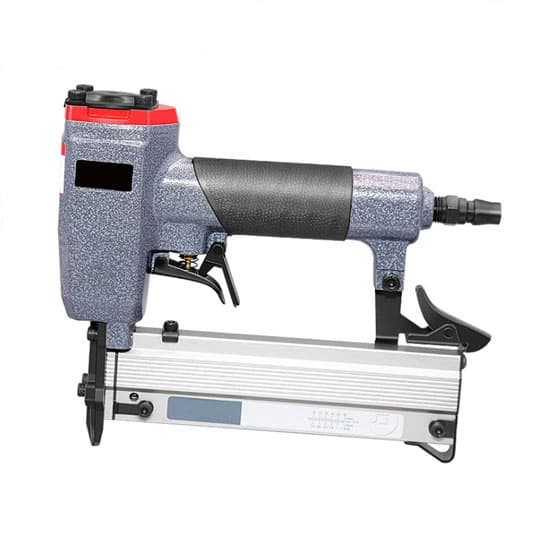

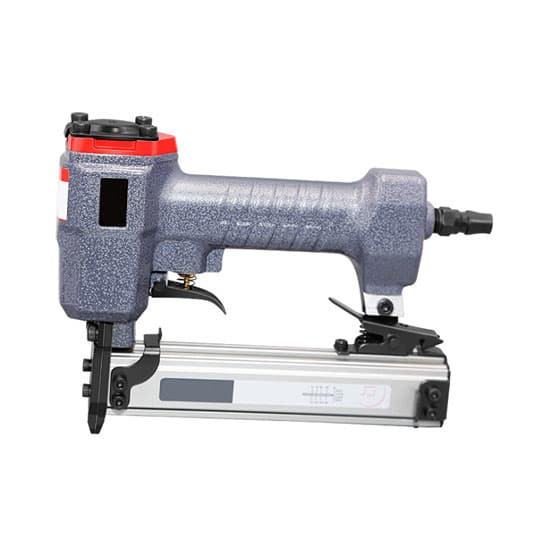

Best headless air pin nailer accepts 23 gauge in thickness, 1/2″ to 1″ or 1/2″ to 1 – 3/16″ in length pin nails for fastening work. The air pinner has such advantages as low air consumption, low noise, fast nailing, strong power and rapid air return. The body of the pneumatic pin nail gun is made from durable aluminum alloy and the internal mainly parts adopts high quality spring steel polished by machining center, therefore, our air tools are reliable. Air pin nail guns have many uses, such as upholstery, handcraft, trim, baseboards and other fine woodworking.

Specification

Model	T-APN-23A	T-APN-23B
Nail Thickness	23 Gauge, 0.63mm	23 Gauge, 0.63mm

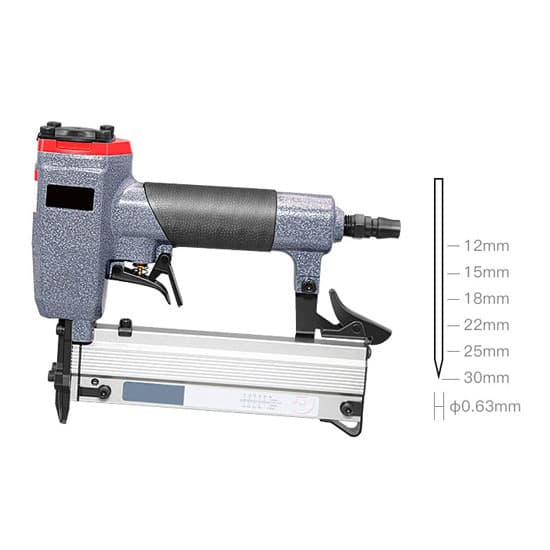

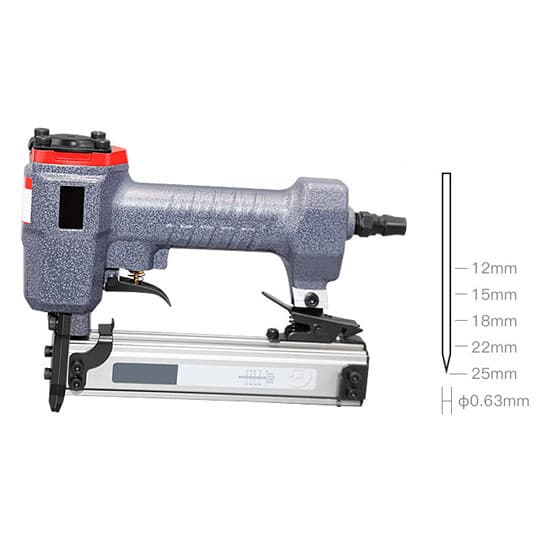

Nail Length	1/2″ – 1″ (12 – 25mm)	1/2″ – 1-3/16″ (12 – 30mm)
Working Pressure	60 – 120 PSI (0.4 – 0.8 Mpa)	60 – 120 PSI (0.4 – 0.8 Mpa)
Load Capacity	100 PCS	100 PCS
Air Inlet	1/4 inch	1/4 inch
Body Dimension	290 * 160 * 58mm	290 * 160 * 58mm
Net Weight	1.1kg	1.1kg

Details

Trigger Insurance Frame: Trigger insurance frames are designed for ensuring that the nail outlet will not punch pin nails out until it contacts with the product.
Positioning Hook: 23 gauge air pin nail gun positioning hook processed by heat treatment helps you punch headless nails out accurately.
Metal Air Outlet: The pneumatic pin nail gun has a metal air outlet that is held in place by four large screws, which has long time service.
Nail Magazine: The nail magazine of air pin nail gun is made from aluminum alloy allowing the air tool durable and lightweight.
Nail Outlet: The pin nail outlet of the air powered pin nailer is durable and reliable due to it is made from high quality steel with heat treatment.

Applications

Tips: What is a 23 Gauge Air Pin Nailer?

23 gauge air pin nailer is an air tool require compressed air to work. It can used for upholstery, handcraft, trim and baseboard among other things. The pneumatic pin nail gun accepts 23 gauge headless nails than thinner and smaller than brad nails that will not leave any visible nail holes. The fine headless pin nails will not split wood no matter you work for regular size wood pieces or trim small furniture. Therefore, air pin nail gun is the best air tool for install tiny decorations and furniture.
