32 People watching this product now!

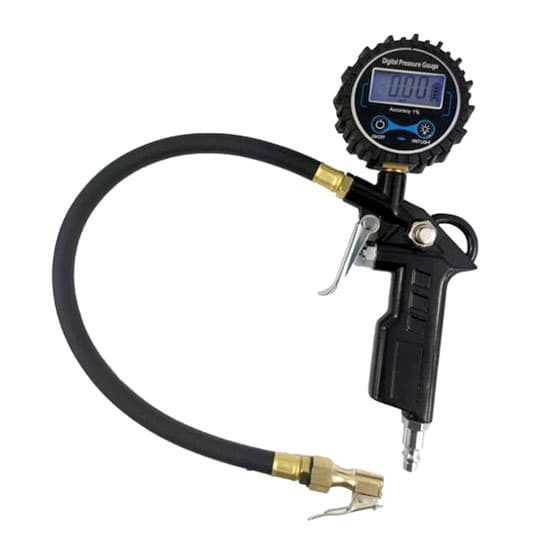

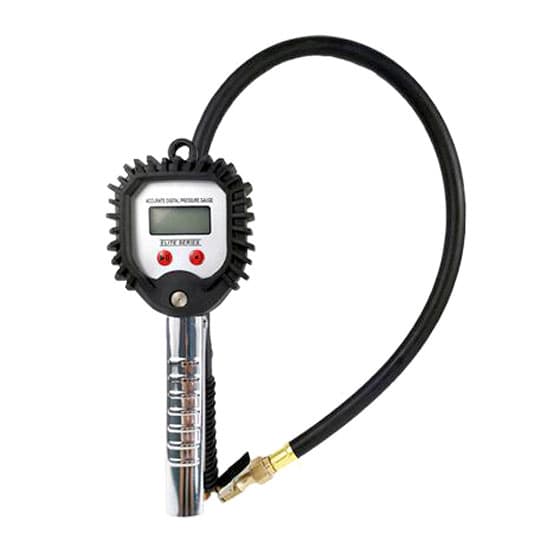

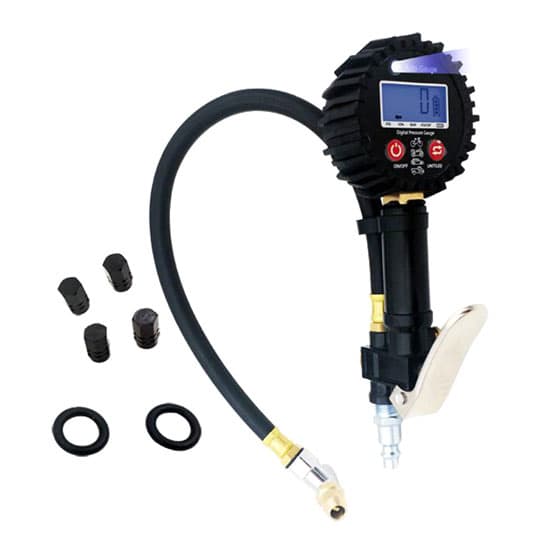

250 PSI tire inflator with pressure gauge can be used for measuring tire pressure, releasing tire air and inflating tire. Optional handle type/ air tap type and 4 switchable units to show real time tire pressure, completely meets all your requirements.

Specification:

Model *	T-TI-PDG6	T-TI-PDG7	T-TI-PDG8
Weight	360g	400g	400g
Pressure range	0-250 PSI	0-250 PSI	0-250 PSI
Accuracy	1.0%FS	1.0%FS	1.0%FS
Resolution	0.1 PSI	0.1 PSI	0.1 PSI
Structure	Digital pressure gauge Air blow gun Air tap (connecting to air compressor) Rubber hose with clip-on air chuck (connecting to tire)	Digital pressure gauge Handle with air blow/blow off buttons Air tap (connecting to air compressor) Rubber hose with clip-on air chuck (connecting to tire)	Digital pressure gauge with air blow off key Handle with air blow button Air tap (connecting to air compressor) Rubber hose with clip-on air chuck (connecting to tire)
Display	38*18mm LCD display	38*18mm LCD display	38*18mm LCD display
Outer diameter of pressure gauge	75mm	75mm	about 75mm
Power supply	DC 3V, 2* AAA batteries	DC 3V, 2* AAA batteries	DC 3V, 2* AAA batteries
Type of air tap *	US, EU, Japan	US, EU, Japan	US, EU, Japan
Function	Measuring tire pressure Releasing tire air Tire inflation 4 units: kgf/cm2, KPa, PSI, bar Backlight Automatic power off	Measuring tire pressure Releasing tire air Tire inflation 4 units: kgf/cm2, KPa, PSI, bar Backlight Automatic power off LED light	Measuring tire pressure Releasing tire air Tire inflation 4 units: kgf/cm2, KPa, PSI, bar Backlight Automatic power off
Accessories	4 * valve caps, O-ring	4 * valve caps, O-ring	4 * valve caps, O-ring
Application	Car, SUV, truck, motorcycle, bike, RV or ATV	Car, SUV, truck, motorcycle, bike, RV or ATV	Car, SUV, truck, motorcycle, bike, RV or ATV
Warranty	12 months	12 months	12 months

Tips: Steps of using tire inflator with pressure gauge

Unscrew the cap of the tire air valve.
Press and hold the clip of the tire pressure gauge rubber hose, insert the air chuck into the tire valve directly, right the card connected to the clip, and then loosen the clip.
The LCD screen of the pressure gauge will display the tire pressure value at this moment. The pressure gauge has 4 kinds of units that can be switched by key on the panel, which is convenient for different users to read the tire pressure value.
If it is detected that the tire pressure is insufficient, connect the air pipe of the air compressor to the air tap on the handle, and press the air blow gun trigger to start inflation.
If the tire pressure is too high, press the air vent valve and observe the pressure value on the display. When the tire pressure returns to the normal range, the inflation can be stopped.
After the inflation is completed, press and hold the clip to unplug the hose. Press the vent valve to reset the pressure gauge to zero, and screw back the tire valve cap.
