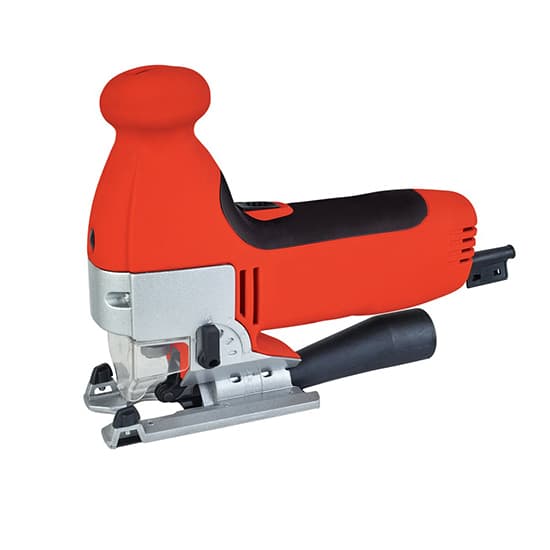

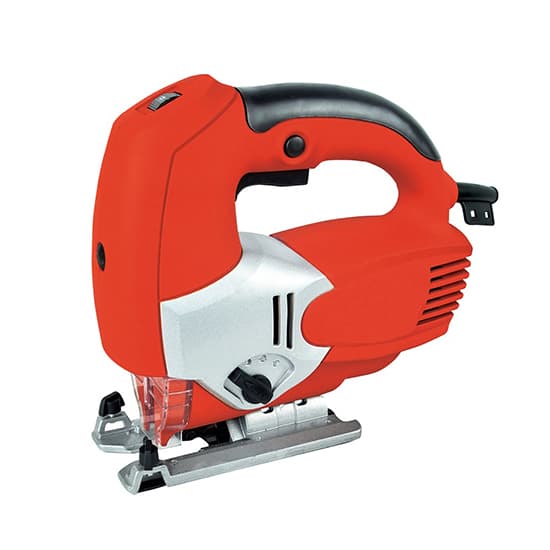

3.15 Inch Electric Jigsaw with Laser, 3.0A

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

36 People watching this product now!

The electric jigsaw is built in laser and LED light, ensuring cutting accuracy and improve efficiency. It is a handheld electric jig saw with small size and compact design, which is the best tool for DIY, novice and professional woodworking. Excellent quality but cheap.

Specification

Model	T-JS008A	T-JS011B
Rated Voltage	230V 50Hz, 240V 60Hz
Input Power	650W	710W
Rated Current	2.8A, 2.7A	3.1A, 3.0A
No-Load Speed	0-3,000 rpm
Cutting Capacity	Wood: 3.15 inch (80mm) Steel: 10mm
Bevel Cutting Range	-45°~0°~45°
Stroke Distance	20mm	24mm
Weight	3 kg

Electric Jigsaw Dimension Drawing

T-JS008A	T-JS011B

Structure Diagram

T-JS008A	T-JS011B

Saw Blade Installation for Electric Jigsaw

Find the quick switch of saw blade replacement.
Pull the switch to turn it on.
Inserting the saw blade, complete installation.

Guide Ruler Installation for Electric Jigsaw

Install the bottom plate.
Install the guide ruler.
The installation is complete.

Tips: Use electric jigsaw for circular and arc cutting.

This cutting method suits using the electric jigsaw for MOD case and speaker drilling, etc., and requires guide track for assisting.

First drill a hole in the large end of guide track, with a diameter of 2~5mm. Position of the hole is preferably 1cm or 2cm away from the 0 scale. This integer is to be able to reuse the original size scale on guide track for measurement.
Then buckle guide track on sheet material, and fix it with the center point of the circle to be cut with a nail or wood screw one size smaller than the hole.
Adjust the radius size. If the starting point of cutting is in the center of sheet material, use drill bit to drill a hole as the starting point.
