Name: 3/8-in Drive Digital Torque Wrench, 10-60Nm/20-110Nm
Brand: Tool
SKU: 466
Availability: InStock

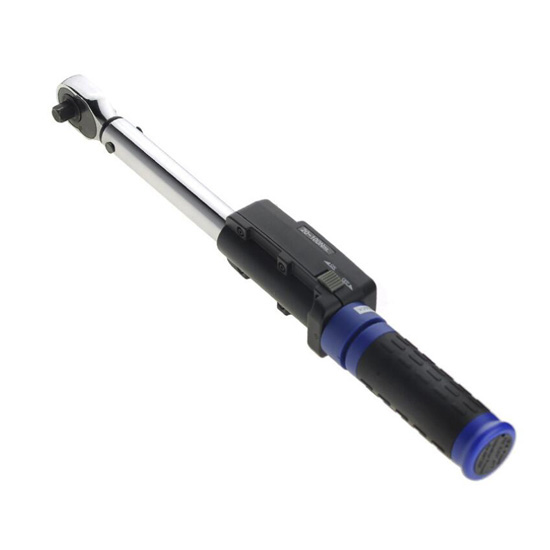

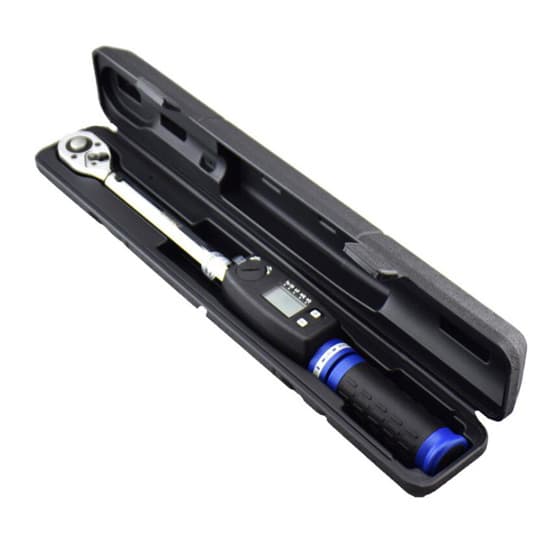

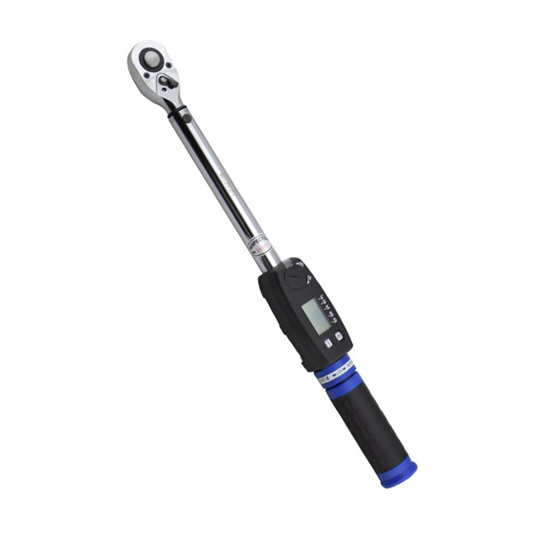

3/8-in Drive Digital Torque Wrench, 10-60Nm/20-110Nm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

68 People watching this product now!

Features

Affordable price 3/8″ square drive torque wrench for sale, accuracy up to ±3%, and available in torque range 5-30Nm/10-60Nm/20-110Nm.
5 torque measurement units for selection and quick conversion in Nm/ft. lb. In/kg/cm.kg/m.
Ratchet torque wrench with quick-release function, and reversible ratchet head, convenient to use.
Battery-powered torque wrench, enegy-saving, continuous operating time up to 700 hours and auto low voltage alarm function.
With easy operation, click-type torque wrench will emit a click sound when the preset value is reached.
Hardened CR-V steel construction for strength and durability, and ergonomic TPR soft-grip handle for comfortable use and long-time work.
Stable, durable and high cost performance. Digital display, easy to read. Perfect for automotive, production line, railway and other occasions.

Specification

Model	T-DS-30	T-DS-60	T-DS-110
Drive Size	3/8 inch	3/8 inch	3/8 inch
Torque Range	5-30Nm	10-60Nm	20-110Nm
Torque Unit	ft-lbs, N-m, inch-lbs, cm-kg2, m-kg
Power	1 X CR2032 DC 3V BATTERY
Accuracy	±3%
Operating Temperature	-20℃～50℃
Auto Shutdown	60 second
Scale Display	Digital
Material	Chrome vanadium steel (CR-V)
Finish	Chrome plated
Overall Length	350mm	370mm	370mm
Weight	1.08kg	1.2kg	1.25kg

Details

Tips: Basics of beam torque wrench

The beam torque wrench is the most basic type of torque wrench, which are the simplest in design. The torque wrench is generally used with sockets. The beam/dial type torque wrench can show a torque when screwing the bolt or nut. The preset torque wrench can be set torque. When the desired torque is reached, it will produce a click sound, suitable for the occasions that have specific requirements for the torque.

The torque wrench is designed according to the bending principle of the beam, the bending principle of the torsion bar and the compression principle of the coil spring, and can measure the magnitude of the moment acting on the nut.

The beam torque wrench has a long elastic rod with a handle at one end and a square or hexagonal head at the other end. A replaceable socket is fitted on the square or hexagonal head and is stuck with a steel bearing ball. There is also a long pointer on the top. The scale plate is fixed on the handle seat and the scale value of each grid is 1N (or kg/m).

Before use, adjust the indicator on the wrench to the desired torque, and then pull the spanner. When the preset torque is reached, the pointer on the indicator will turn to the pin shaft. Finally, the pointer will collide with the pin shaft and inform the operator through the sound box signal or sensing signal.
